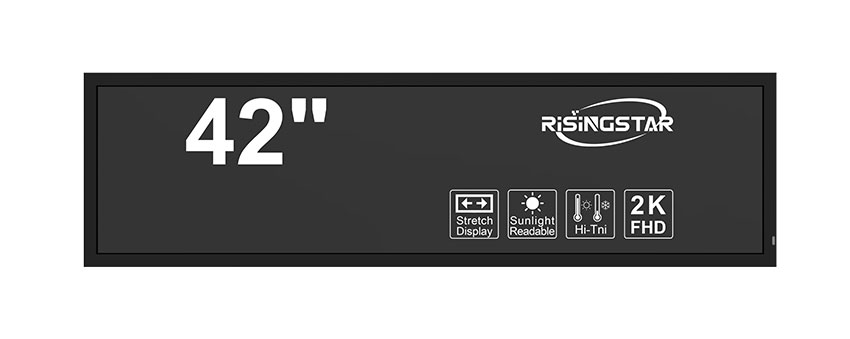

42" Hi-Tni Sunlight Readable Stretch Bar LCD Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RisingStar RS420IVN-GD25 – Specification Table
| Item | Specification |
|---|---|
| Model Name | RS420IVN-GD25 |
| Screen Size | 42 inch |
| Display Area (mm) | 1039.68 (W) × 259.92 (H) mm |
| Brightness | 500 ~ 5000 nits |
| Resolution | 1920 (RGB) × 480, 46 PPI |
| Aspect Ratio | 4:1 |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° (H), 178° (V) |
| Color Saturation | 16.7M / 1.07B, 99% sRGB |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 ms (G to G) |
| Input Interface | USB, HDMI |
| Input Power | DC 12V, 2A |
| Dimensions (mm) | 1073.6 × 298.6 × 58.06 mm |
| VESA Mount | 700 × 200 mm |
| Weight (Net) | TBA |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Description
The RisingStar RS420IVN-GD25 is a 42-inch ultra-wide industrial LCD designed for outdoor and semi-outdoor environments. Featuring a high-brightness range from 500 to 5000 nits, it delivers excellent visibility under direct sunlight, making it ideal for sunlight readable display, high-brightness signage, and passenger information systems. With a 4:1 aspect ratio and 4000:1 contrast, the panel provides crisp and detailed content display even at long viewing distances. Its wide 178° viewing angle ensures consistent readability from all directions. The RS420IVN-GD25 also includes robust temperature endurance (-20 ~ 70 °C), making it suitable for harsh industrial conditions.
Application Scenarios
This 42-inch ultra-wide display is ideal for:
1. Transportation Systems
Passenger information display
Bus, metro, light-rail timetable screens
Platform guidance and route signage
2. Outdoor Digital Signage
Outdoor digital display boards
High brightness LCD signage
Retail window-facing digital signage
3. Industrial & Commercial Use
EV charging station screens
Fuel dispenser displays
Industrial control panels requiring high visibility
4. Smart City & Public Information
Community information boards
Weather and news ticker displays
Building entrance screens
| Model Name | RS420IVN-GD25 |
| Screen Size | 42 inch |
| Display Area (mm) | 1039.68(W)×259.92(H) mm |
| Brightness | 2500 cd/m 2 |
| Resolution | 1920(RGB)×480, 46PPI |
| Aspect Ratio | 4:1 |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178°(H),178°(V) |
| Color Saturation | 16.7M/1.07B , 99% sRGB |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 (Typ.)(G to G) ms |
| Input Interface | USB, HDMI |
| Input Power | DC12V, 2A |
| Dimensions (mm) | 1073.6*298.6*58.06mm |
| VESA Mount | 700*200mm |
| Weight (Net) | TBA |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
