Up to 5000 nits — daylight clarity
IP65 / IP66 rated & anti-glare glass
Operate from –20 ℃ to +70 ℃
Auto brightness for energy savings
Sunlight Readable Displays | RisingStar Industrial High Brightness LCD Solutions
RisingStar specializes in sunlight readable display solutions, designed for the most demanding outdoor and semi-outdoor environments. Our industrial LCD screens offer ultra-high brightness up to 5000 nits, ensuring crystal-clear visibility even in direct sunlight. Brightness options include 2500, 3000, 4000, and 5000 nits, utilizing direct-lit LED backlights for uniform brightness and superior contrast.
With an all-aluminum housing, these displays are lightweight, durable, and energy-efficient — optimized for long-term operation with minimal maintenance.
Each unit undergoes strict 240-hour thermal testing (-20°C to 60°C) and 48-hour burn-in quality control to ensure reliability. RisingStar displays come with IP66 waterproof and IK10 impact resistance, supporting optional 2K/4K resolutions. Perfect for railway and subway passenger systems, EV charging stations, fuel dispensers, outdoor digital signage , retail storefronts, and outdoor TVs.
OEM/ODM customization is available from 10.1" to 110", including bar-type ultra-wide screens tailored to your application.
| Model Name | Size (inch) | Brightness (nits) | Resolution | Operating Temp | Screen Life |
|---|---|---|---|---|---|
| RS101ICE-GE07 | 10.1" | 700–5000 | 1280×800 | -20 ~ 70 ℃ | 15000H |
| RS156HCE-GE10 | 12.1" | 700–5000 | 1920×1080 | -20 ~ 70 ℃ | 70000H |
| RS156HCE-GE10 | 13.3" | 1000–5000 | 1920×1080 | -20 ~ 70 ℃ | 50000H |
| RS156HCE-GE10 | 15" | 1000–5000 | 1920×1080 | -20 ~ 70 ℃ | 50000H |
| RS156HCE-GE10 | 15.6" | 1000–5000 | 1920×1080 | -20 ~ 70 ℃ | 50000H |
| RS190E0M-GE10 | 17" | 1000–5000 | 1280×1024 | -20 ~ 70 ℃ | 30000H |
| RS190E0M-GE10 | 18.5" | 1000–5000 | 1280×1024 | -20 ~ 70 ℃ | 50000H |
| RS190E0M-GE10 | 19" | 1000–5000 | 1280×1024 | -20 ~ 70 ℃ | 30000H |

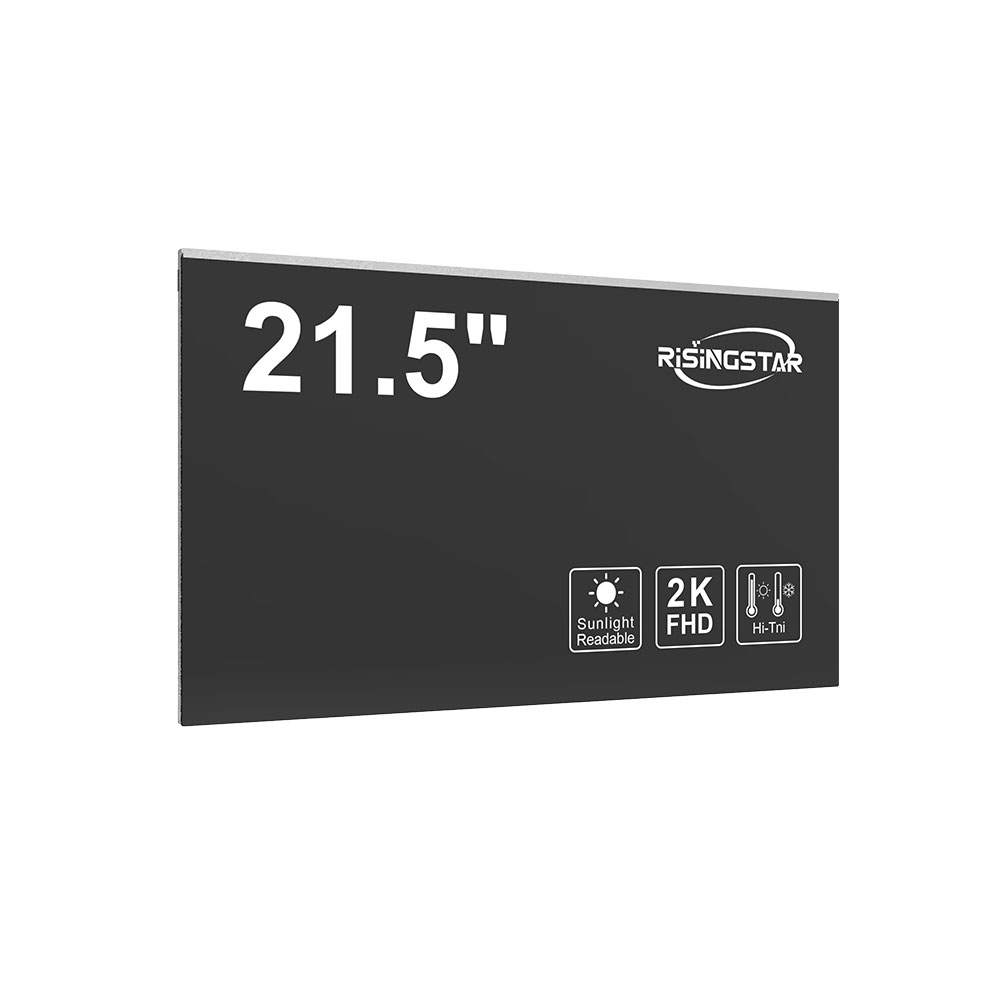

| RS215FHB-GE15 | 21.5" | 1500–5000 | 1920×1080 | -20 ~ 70 ℃ | 50000H |
| RS215FHB-GE15 | 23.8" | 1500–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 30000H |
| RS270FHB-GD20 | 27" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 40000H |
| RS320DPY-GD30 | 32" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 30000H |
| RS490EPY-GD30 | 43" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 50000H |

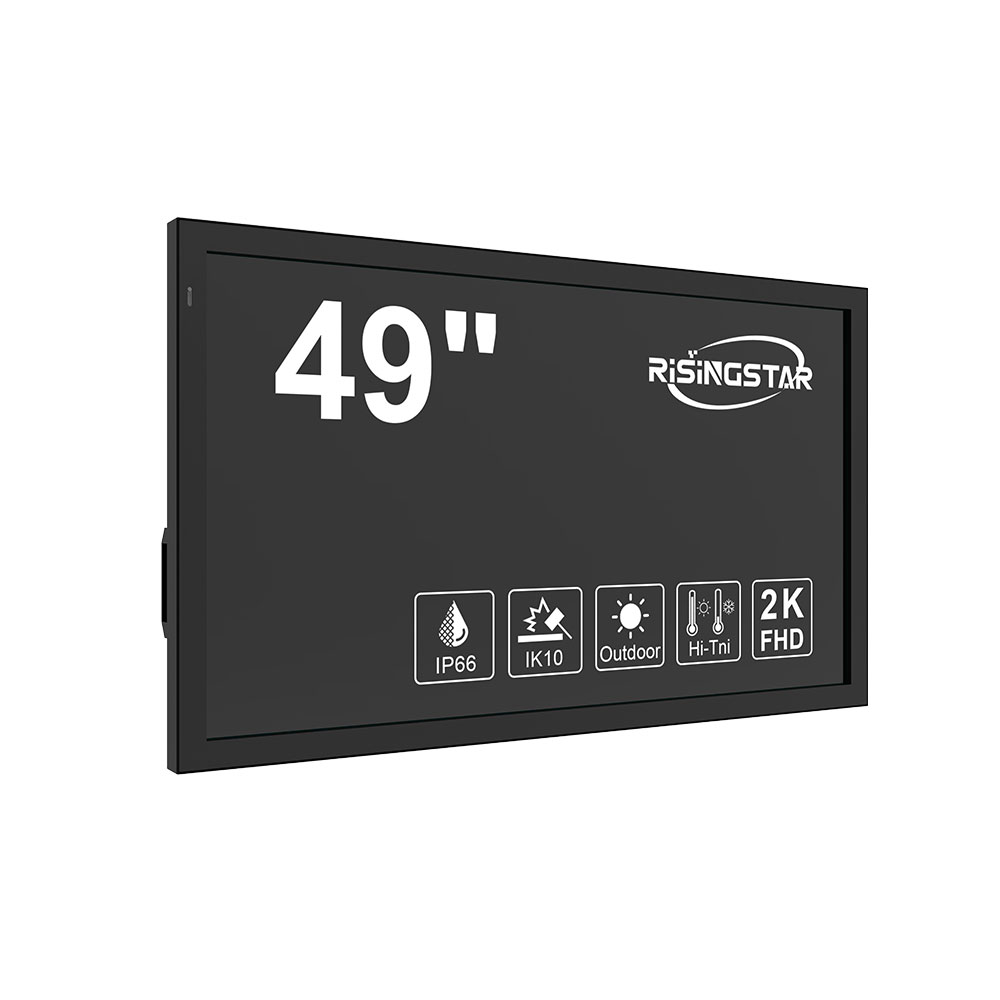

| RS490EPY-GD30 | 49" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 30000H |
| RS550DPY-GD45 | 55" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 50000H |
| RS650QUB-GD30 | 65" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 50000H |
| RS750ENT-GD40 | 75" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 50000H |
| RS860EQL-GD40 | 86" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 30000H |
| RS980DQY-GD35 | 98" | 2000–5000 | 1920×1080 / 3840×2160 | -20 ~ 70 ℃ | 50000H |
| More size enquiries... | 📧 ai@risinglcd.com | ||||
RisingStar delivers advanced sunlight readable displays engineered for outdoor digital signage, transportation hubs, EV charging kiosks, fuel dispensers, and retail advertising. With brightness levels up to 5000 nits, industrial-grade durability, and optical enhancements, our solutions ensure crystal-clear visibility even in direct sunlight.
A sunlight readable display is designed to remain visible under intense ambient light or direct sunlight. While standard indoor displays provide 250–400 nits, and daylight-viewable monitors reach 500–800 nits, a true sunlight readable screen requires 1000 nits or more, combined with anti-reflective coatings, optical bonding, and high contrast ratios.
Railways, metro systems, and bus stops rely on high brightness passenger information displays to ensure schedules remain visible in sunlight.
Case Study: A major Asian metro deployed RisingStar 2500 nits passenger displays, achieving 70% higher visibility under midday sunlight.
Outdoor kiosks and fuel pumps require reliable displays that remain visible in daylight.
Case Study: In 2024, a European EV network integrated RisingStar 21.5-inch, 2500 nits displays, reducing misreading errors by 35%.
Outdoor high brightness displays boost retail promotions, digital billboards, and property advertising, attracting more customers under strong sunlight.
| Environment | Recommended Brightness | Suggested Features |
|---|---|---|
| Indoor Retail | 250–400 nits | Standard LCD |
| Semi-outdoor | 500–800 nits | Daylight viewable + AG coating |
| Outdoor Direct Sunlight | ≥1000–2500 nits | Sunlight readable + AR + optical bonding |
| Extreme Outdoors | 2500–5000 nits | IP65/IP67 + MIL-STD-810G certified |
Q1: How many nits are needed for sunlight readability?
A: At least 1000 nits; RisingStar provides up to 5000 nits.
Q2: Difference between Anti-Glare and Anti-Reflective?
A: AG disperses glare, AR minimizes reflections; combined for best results.
Q3: Does optical bonding help outdoors?
A: Yes, it improves readability by up to 30% by reducing reflections.
Q4: What’s the lifespan of a 2500 nits display?
A: Over 50,000 hours of backlight life.
According to Grand View Research 2024, the outdoor digital signage market is projected to reach $45['8'] billion by 2030, growing at a CAGR of 7.9%. The demand for sunlight readable displays is one of the key growth drivers, especially in transportation, retail, and smart city applications.
RisingStar aligns with this trend by providing industrial-grade displays tested under international standards such as IEC 60068 and MIL-STD-810G, ensuring long-term outdoor reliability.
| Feature | Standard Display | Sunlight Readable Display |
|---|---|---|
| Brightness | 250–400 nits | 1000–5000 nits |
| Outdoor Visibility | Poor under direct sunlight | Excellent readability in sunlight |
| Durability | Not weatherproof | IP65/IP67 waterproof & dustproof |
| Optical Enhancements | None | AR/AG coating + optical bonding |
| Certifications | Basic safety | CE, FCC, RoHS, MIL-STD-810G |
RisingStar sunlight readable displays are deployed in railway networks, metro stations, EV charging providers, and retail chains worldwide.
"RisingStar displays transformed our outdoor passenger information systems. The visibility improvement under direct sunlight reduced customer complaints by 60%."
— Project Manager, Metro Transport Authority
Everything distributors need to know to select, specify and sell high-brightness outdoor displays — from 1,200 nits to 5,000 nits, optical bonding, IP protection, certification and ROI considerations.
In the outdoor digital signage and kiosk market, readability under direct sunlight is a decisive buying factor. A “sunlight readable display” is engineered to remain legible in bright ambient conditions by combining high luminance (measured in nits), anti-reflective optical engineering, contrast optimization, and robust environmental design. This guide synthesizes technical knowledge, practical selection steps, European compliance considerations and sales messaging that distributors can use when promoting outdoor high-brightness LCD solutions.
Quick takeaway: For most European outdoor applications exposed to direct sunlight, displays in the range of 2,500–5,000 nits with optical bonding and IP65+ protection deliver the best combination of visibility and reliability.
Direct-type or full-array LED backlighting enables much higher luminance levels than edge-lit designs. For sunlight readability, full-array backlight with robust thermal dissipation is preferred. Manufacturers often list both typical and peak brightness — ensure you request test conditions (displayed white at 100% with stabilized temperature).
Optical bonding fills the air gap between the LCD and the cover glass with an optically clear adhesive. This reduces internal reflections, increases perceived contrast in sunlight and enhances mechanical durability. For outdoor kiosks where impact resistance and condensation prevention are concerns, optical bonding is a near-mandatory feature.
AR coatings reduce specular reflections; AG microtexturing diffuses glare. The best outdoor solutions combine bonding with AR coatings for maximum improvement in contrast and legibility under high ambient light.
Higher native contrast ratios and effective black levels (enhanced by optical bonding) sharpen text legibility. For DOOH (digital out-of-home) advertising, accurate color reproduction is also important — as brightness increases, some panels may shift color; calibrations or LUTs may be required.
Integrated ambient light sensors can dynamically adjust backlight levels, balancing visibility and energy use. For urban or mixed light environments, auto-brightness maintains readability while extending LED life and reducing power draw at night.
High nits generate heat. Effective thermal design — passive heatsinks, forced air in enclosures where allowed, or thermal throttling strategies — ensures sustained brightness without damage. Verify sustained brightness tests (e.g., 8-hour continuous white) rather than relying solely on peak figures.
Outdoor displays require dust and moisture protection (IP65, IP66, or higher) and impact resistance (IK ratings). For coastal installations, conformal coating or stainless-steel housings help prevent corrosion. Ensure connectors are sealed and ventilation strategies don't compromise ingress protection.
Sunlight readable displays are used across many outdoor contexts. Here are the highest-value opportunities and what each demands technically.
Requirements: high peak brightness (2,500–5,000 nits), anti-reflective front glass, secure mounting and tamper protection. Advertising customers value color fidelity and reliability under continuous operation.
Requirements: interactive touch capability (optically bonded projected capacitive touch), IP65 protection for the kiosk front, and robust temperature tolerance for both winter and hot summer days.
Requirements: readability under midday sun, wide viewing angles, long life, and compliance with transport industry safety and mounting standards. Often paired with anti-vandal housings.
Requirements: wide temperature operation, anti-glare for outdoor job sites, and robust connectors for integration with industrial controllers.
Measure or estimate illuminance (lux) and directness of sunlight. Southern and western exposures in Europe have higher solar load. For shaded locations 1,000–2,000 nits may suffice; for direct exposure choose 2,500–5,000 nits.
Higher brightness means more power and heat. Ask suppliers for sustained brightness reports (e.g., brightness after 8 hours running). If energy costs or on-site power are constrained, consider auto-brightness and efficient backlight designs.
For most outdoor projects, optical bonding significantly improves contrast. Combine bonding with a high-quality AR treatment to achieve best real-world readability.
EU distributors must request CE marking, RoHS compliance and, where appropriate, EN standards relevant to the application. For outdoor units confirm IP65/66 ratings and operating temperatures aligned with project sites.
Check VESA mount compatibility, connector sealing, and kiosk enclosure design. For retrofit projects include anti-glare sunshades or hoods if the orientation cannot be changed.
Ask the supplier for customer case studies, lab test reports, uptime statistics and maintenance records. Successful European installations (urban signage, stations, EV chargers) are strong buying signals.
| Feature | Typical Value / Range | Why it matters |
|---|---|---|
| Brightness (nits) | 1,000 → 5,000 | Higher nits improve readability in direct sunlight; choose based on exposure. |
| Optical Bonding | Recommended (Yes/No) | Reduces internal reflection and improves contrast and durability. |
| AR / AG Coating | AR + AG preferred | Minimizes glare and maintains legibility with polarized sunglasses. |
| IP Rating | IP65 / IP66 / IP67 | Protects from dust and water ingress for outdoor reliability. |
| Operating Temp | -30°C → +75°C (project specific) | Ensures consistent performance across seasons. |
| Backlight Life | ~50,000 hours (typical) | Defines maintenance cycles and total cost of ownership. |
Note: The values above are reference ranges. Always confirm supplier's test conditions and verify sustainable brightness under load.
High brightness displays are positioned as premium outdoor hardware. While unit cost is higher than indoor counterparts, ROI factors include increased ad viewability, longer service life, reduced maintenance with bonded displays and fewer returns due to reliability.
For retail & DOOH: Emphasize conversion uplift from higher visibility and accurate color for campaigns. For transport and municipal projects: emphasize uptime, long life and compliance with local standards.
European procurement places importance on technical documentation, verified test reports, certifications, and client references. To win distributor and municipal business, present the following:
Tip: Publish anonymized case studies that show before/after metrics (visibility, impressions or user engagement) — these materially increase buyer confidence.
Distributors should leverage the following assets to accelerate sales:
We recommend creating modular assets so graphics and key messages can be reused across proposals, trade shows and distributor portals.
It depends on exposure. For shaded or semi-outdoor spaces, 1,000–2,000 nits may be sufficient. For direct sun exposure pick 2,500–5,000 nits depending on the viewing distance, reflectivity of the glass, and local climate.
Not always. Without optical bonding and AR coatings, higher nits will simply create a washed appearance due to reflections. Effective readability requires a portfolio of solutions: brightness, bonding, AR and thermal management.
For most outdoor direct-sun installations, yes — optical bonding significantly improves contrast and eliminates internal reflection, which has a pronounced effect on perceived legibility.
High brightness increases power consumption. Ensure the site power budget supports peak draw, and that enclosures or kiosks provide adequate heat dissipation to avoid thermal throttling.
CE declaration, RoHS compliance, IP/IK test reports, and any application-specific standards (for transit, road signage or safety) should be requested. Local authorities may also require project-level approvals.
If you'd like a datasheet, a customized quote, or a technical consultation for a specific European project, we can assist quickly. Use WhatsApp to reach our specialist team for real-time replies.
