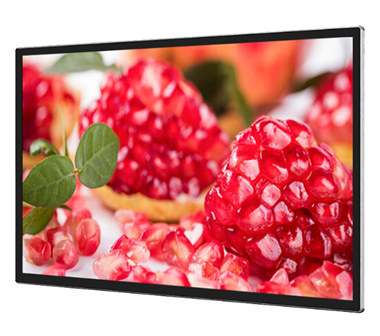

Sunlight readable 55 inch outdoor window facing Display
| Brand | RisingStar |
| Model name | RS550ENT-ND35 |
| Screen size | 55" |
| Screen type | Outdoor LCD Monitor |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 2000 |
RisingLCD RS550ENT-ND35 is a sunlight readable window facing LCD display, RisingLCD own designed metal frame are suitable with all the AUO/BOE/LG original LCD panel.
RS550ENT-ND35 outdoor window facing display is with 3500 nits high brightness, a great resolution 3840*2160 and high contrast ratio: 4000:1, it is ideal to apply to outdoor window facing or digital signage for bus station, retail store and industrial device.
Main features
1.Optical bonding processed and reflection prevention
RE550ENT-ND35 is full laminated with anti-reflection glass which will eliminates the air between the LCD panel and tempered glass, it helps to provide a ratio display with 178/178 wide viewing angle, and make the display images richer and clearer under direct sunlight.
2.Smart brightness control
Built-in auto-brightness sensor that adjusts backlight brightness according to the surrounding brightness to save the operationg expenses and powe consumption that is very important for the outdoor displays using in a outside environments.
3.Truly sunlight readable
This series is optically bonded which increases the preceived contrast ratio and reduces down on glare, providing amazing picture quality even under the direct sunlight.
4.Thin and slim design
Super slim body and an ultra slim frame, rounded corner design, brushed metal, excellent apperance with VESA™ Standard Mount Interface to allow for flexible use in various spaces.
5.24/7 usage
This is a true commercial -grade solution, built using a commercial-grade LCD panel and components, it is designed to be in constant use, which is esssential for some locations.

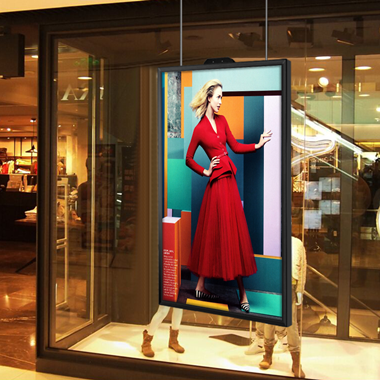

This 55inch high brightness LCD TFT display support the hanging installation, save your space and stay away from crowing, landscape and portrain are available
| Display | Panel Size | 55 |
| Panel Brand | RisingStar | |
| Display Area | 1209*680mm | |
| Brightness | ||
| Resolution: | 1920*1080/ 3840*2160 | |
| Aspect Ratio: | 16:9 | |
| Constrast Ratio. | 1300/1 | |
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |
| Backlight | （DLED) | |
| Lift Hour | up to 50,000 hours | |
| Control System | Smart Dimming | Support |
| Intelligent temperature control | Support | |
| Remote control function | Support | |
| Electrical parameters | Input voltage | AC110V/220V,50/60HZ |
| Maximum power | 265W | |
| shell | shell material | sheet metal |
| Product Size | 1255.5*726.5*90mm | |
| Weight | 34kg | |
| Use environment | Use environment | semi-outdoor |
| Use temperature and humidity | 0-70°C/5%-95%RH | |
| multimedia | Motherboard Type | Android/PC/HD driver board (optional) |
| IO interface | HDMI/VGA/DVI/USB/RJ45 |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
