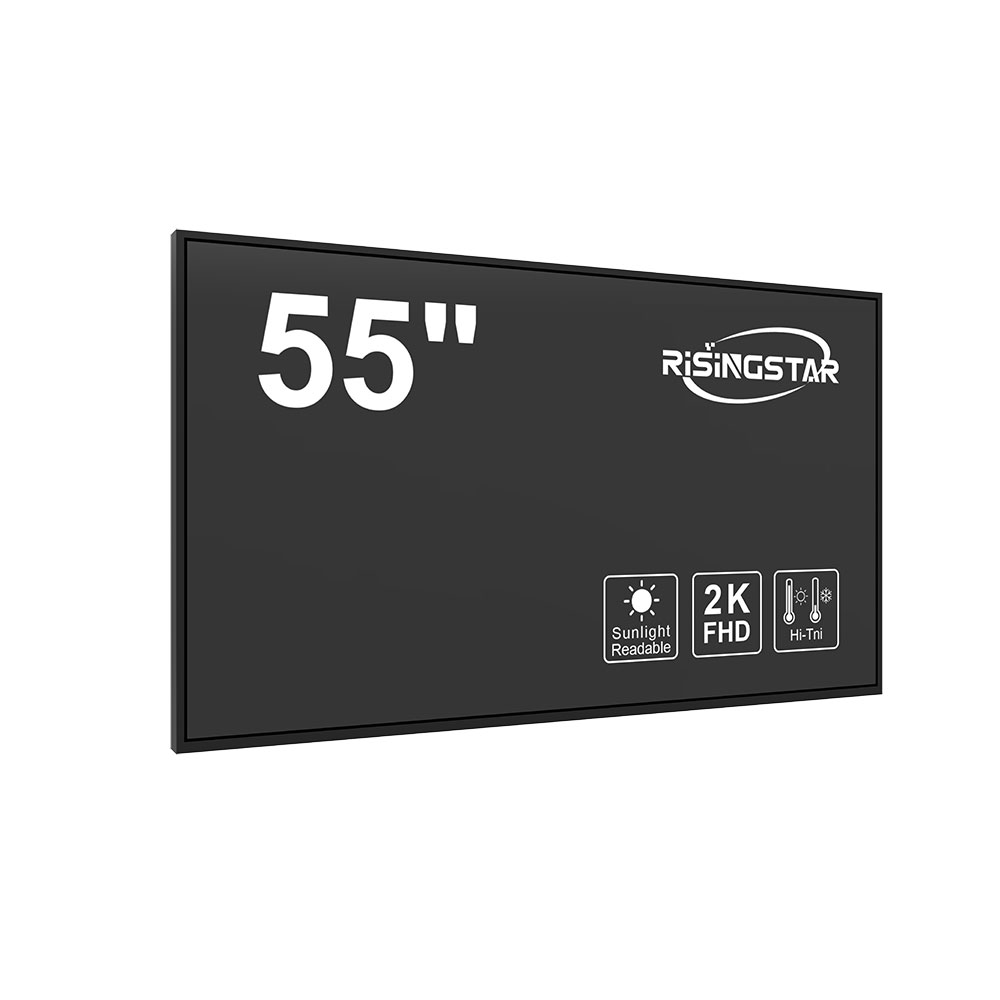

55 inch ultra brightness sunlight readable FHD LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
55-Inch LCD Panel Specification
| Category | Item | Specification |
|---|---|---|
| Panel | Panel Size | 55 inch |
| Panel Type | a-Si TFT-LCD, LCM | |
| Resolution | 1920 (RGB) × 1080, FHD, 40 PPI | |
| Pixel Arrangement | RGB Vertical Stripe | |
| Display Area | 1209.6 (W) × 680.4 (H) mm | |
| Viewing Area | 1210.6 (W) × 681.4 (H) mm | |
| Surface Treatment | Anti-glare (Haze 25%) | |
| Optical | Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 5000:1 (Typ.) (TM) | |
| Viewing Angle | 89/89/89/89 (Typ.) (CR ≥ 10) | |
| Display Mode | Super MVA, Normally Black, Transmissive | |
| Color Depth | 16.7M Colors, 74% NTSC | |
| Response Time | 9.5 ms (Typ., G to G) | |
| Backlight | Light Source | WLED, up to 50,000 hours (with LED Driver) |
| Refresh Rate | Standard Frequency | 60Hz |
| 120Hz (60Hz Input) | Built-in MEMC | |
| 120Hz+120Hz | 120Hz Panel + 120Hz Backlight | |
| 240Hz (60Hz Input) | Built-in MEMC | |
| Touch | Touch Screen | No Touch |
| Bezel / Seam | Splicing Gap | 3.9 mm (active-to-active) |
| Interface | Signal Interface | LVDS (2ch, 8-bit), 51-pin Terminal |
| Electrical | Driving Voltage | 12.0 V (Typ.) |
| Environment | Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C | |
| Application | Panel Application | Video Wall / Splicing Display |
Product Description
This 55-inch a-Si TFT-LCD panel is designed for professional video wall and splicing display applications requiring high brightness, wide viewing angles, and high contrast performance. With brightness ranging from 500 to 5000 nits, the panel delivers excellent readability in both indoor and high-ambient-light environments. The Super MVA normally-black mode ensures deep blacks and uniform image quality across a full viewing angle of 89/89/89/89.
Engineered with a durable WLED backlight (up to 50,000 hoursours) and optional MEMC motion-enhancement modes (120Hz/240Hz), the display delivers smooth motion and long-term stability, making it suitable for 24/7 operation. Its 3.9 mm ultra-narrow bezel seam enables seamless multi-screen splicing for large visual walls.
Applications
This 55-inch high-brightness LCD panel is widely used in:
Video Wall Systems
Control Rooms & Command Centers
Security Monitoring Walls

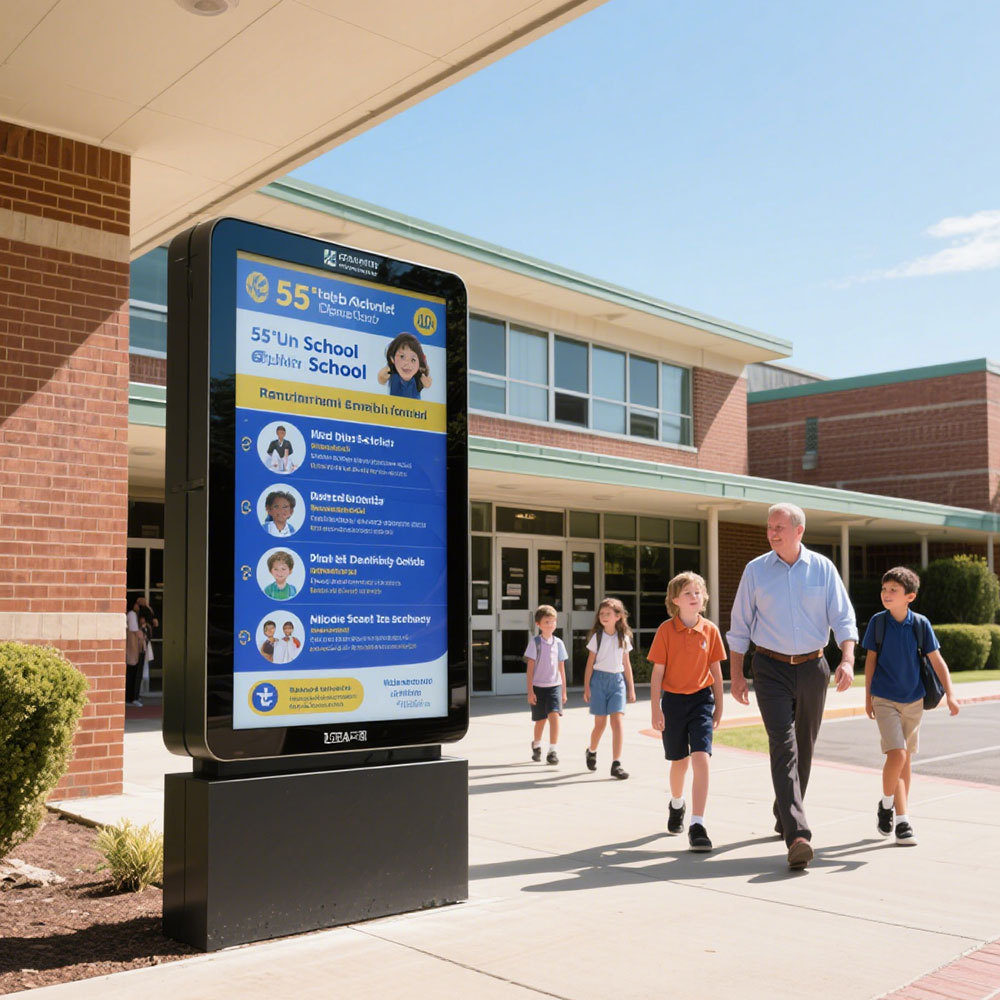

Retail & Digital Signage Walls
Broadcast Studios
Transportation Information Displays
Corporate Lobbies & Exhibition Halls
55-Inch LCD Panel Specification
| Category | Item | Specification |
|---|---|---|
| Panel | Panel Size | 55 inch |
| Panel Type | a-Si TFT-LCD, LCM | |
| Resolution | 1920 (RGB) × 1080, FHD, 40 PPI | |
| Pixel Arrangement | RGB Vertical Stripe | |
| Display Area | 1209.6 (W) × 680.4 (H) mm | |
| Viewing Area | 1210.6 (W) × 681.4 (H) mm | |
| Surface Treatment | Anti-glare (Haze 25%) | |
| Optical | Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 5000:1 (Typ.) (TM) | |
| Viewing Angle | 89/89/89/89 (Typ.) (CR ≥ 10) | |
| Display Mode | Super MVA, Normally Black, Transmissive | |
| Color Depth | 16.7M Colors, 74% NTSC | |
| Response Time | 9.5 ms (Typ., G to G) | |
| Backlight | Light Source | WLED, up to 50,000 hoursrs (with LED Driver) |
| Refresh Rate | Standard Frequency | 60Hz |
| 120Hz (60Hz Input) | Built-in MEMC | |
| 120Hz+120Hz | 120Hz Panel + 120Hz Backlight | |
| 240Hz (60Hz Input) | Built-in MEMC | |
| Touch | Touch Screen | No Touch |
| Bezel / Seam | Splicing Gap | 3.9 mm (active-to-active) |
| Interface | Signal Interface | LVDS (2ch, 8-bit), 51-pin Terminal |
| Electrical | Driving Voltage | 12.0 V (Typ.) |
| Environment | Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C | |
| Application | Panel Application | Video Wall / Splicing Display |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
