Risingstar RS170ENT-12 is a color active matrix TFT LCD panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This panel is orginal IPS LCD panel LP170WQ1-SPE1, has a 17 inch diagonally measured active area with FHD resolutions (2560 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 1.07 B colors. and with Risingstar customized its brightness can achieve 1000nit sunlight readable brightness.
17 inch 1000nits sunlight readable LCD Panel Main Features:
original IPS LCD panel LP170WQ1-SPE1
High resolution: 2560(RGB)×1600
Brightness up to 1000 nits
Built-in Auto Light sensor
Wide View angle
Support 24 hours, 365days non-stop display
original IPS LCD Panel
it does not produce image distortion and minimizes color shift when viewed from different angles, the IPS LCD panel provides clear images and instantly optimizes screen color and brightness.
17 inch 1000nits sunlight readable LCD Panel is with Auto brightness control
Different external lighting condition requires different brightness leverls, an onboard light sensor that built-in LCD panel measures the ambient light in the area and automatically adjust the image light accordkingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen.
1000nits Sunlight readable LCD panel
With the feature of 1000nits high brightness, clear resolution and rich depth, the LCD panel display could let you see a vivid world, this panel could make you see the real image even under the sun, it gives you a comfortable visual experience no matter what you are dong at any time.
Risingstar is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests. OEM/ODM are all welcomed!

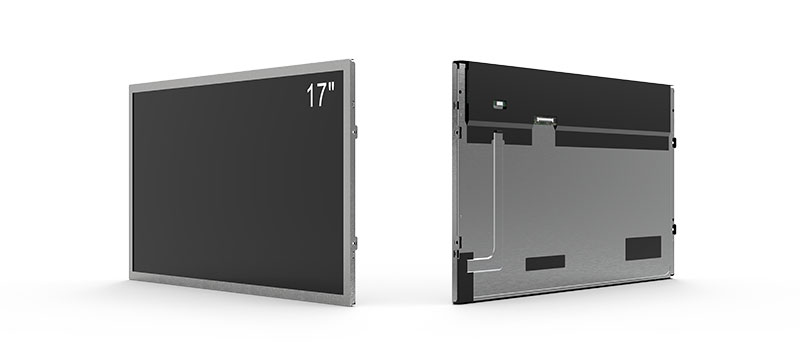

physical products

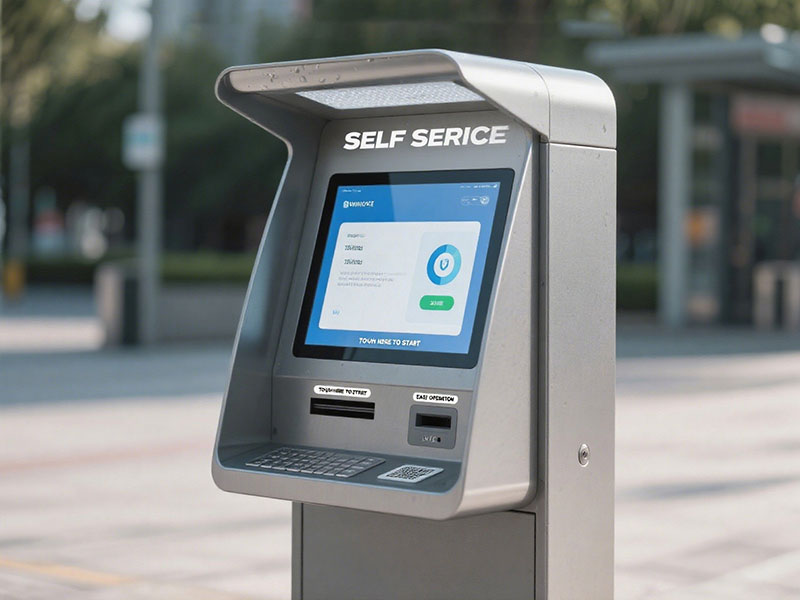

Application case
Technical parameters
| Item No | RS170ENT-N12 |
| Panel Brand | RisingStar |
| Panel Item | LP170WQ1-SPE1 |
| Size | 17 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 2560(RGB)×1600, WQXGA, 177PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 366.34(W)×228.96(H) mm |
| Outline Size | 372.84(W)×246.02(H) ×4.1(D) mm |
| Bezel Area | -- |
| Surface Treatment | Hard coating (3H) |
| Brightness | 1000 to 5000nits |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:10 |
| View Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Model | IPS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Color | 1.07B 98% DCI-P3 |
| Backlight | eDP (4 Lanes) , HBR1 (2.7G/lane) , 40 pins Connector |
| Touch Screen | Without |
| Panel Weight | 2.85/3.00kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Input Voltage | 3.3V(Typ.) |
| Working Temperature | 0 ~ 50 ° |
| Storage Temperature | -20 ~ 60 °C |
| Current State: | In Production |
Meta Description:
RisingStar 17-inch 1000nits sunlight readable LCD panel delivers outstanding clarity even under direct sunlight. Designed for industrial, and outdoor digital signage applications, it ensures durability, high contrast, and long lifespan.
The RisingStar 17-inch 1000nits Sunlight Readable LCD Panel is built for environments where visibility is critical. With a brightness of up to 1000 nits, wide viewing angles, and industrial-grade durability, this panel ensures excellent readability under direct sunlight or high ambient light conditions. Whether integrated into outdoor kiosks, equipment, or passenger information displays, it guarantees consistent performance and reliability.
Sunlight Readable: High-brightness 1000 nits display ensures clear visuals even under direct sunlight.
Industrial Reliability: Tested for extreme environments, resistant to heat, cold, and vibration.
Wide Viewing Angle: IPS technology guarantees consistent clarity across multiple viewing positions.
Energy Efficient: Industrial-grade LED backlight design for lower power consumption and reduced heat.
Long Lifespan: Over 50,000 hours of reliable operation.
Flexible Integration: Slim, lightweight structure ideal for kiosks, transportation systems, and outdoor signage.
Outdoor digital signage & advertising displays
Passenger information systems (railway, metro, bus stations)
Industrial control panels and automation systems
EV charging kiosks and fuel dispensers
Public information terminals
“The clarity under strong sunlight is impressive. We integrated this panel into our outdoor kiosks, and the readability is flawless.”
— Project Manager, Outdoor Advertising Firm
“Reliable, robust, and easy to integrate into industrial systems. RisingStar’s sunlight readable LCDs are among the best in the market.”
— Senior Engineer, Transportation Solutions
The RisingStar 17-inch sunlight readable LCD panel is CE and FCC certified, meeting international quality and safety standards. Each unit undergoes rigorous testing for durability, extreme temperatures, and continuous 24/7 operation to ensure stable, long-term performance.
As a leading manufacturer of high brightness LCD solutions, RisingStar delivers displays trusted by global partners in transportation, retail, and industrial markets. With advanced engineering, strict quality control, and a focus on sunlight readable and outdoor-ready technology, RisingStar ensures your projects benefit from unmatched reliability and visibility.
👉 Contact RisingStar today to learn more about integrating our 17-inch 1000nits sunlight readable LCD panel into your next project.
| Item No | RS170ENT-N12 |
| Panel Brand | RisingStar |
| Panel Item | LP170WQ1-SPE1 |
| Size | 17 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 2560(RGB)×1600, WQXGA, 177PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 366.34(W)×228.96(H) mm |
| Outline Size | 372.84(W)×246.02(H) ×4.1(D) mm |
| Bezel Area | -- |
| Surface Treatment | Hard coating (3H) |
| Brightness | 1000 to 5000nits |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:10 |
| View Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Model | IPS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Color | 1.07B 98% DCI-P3 |
| Backlight | eDP (4 Lanes) , HBR1 (2.7G/lane) , 40 pins Connector |
| Touch Screen | Without |
| Panel Weight | 2.85/3.00kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Input Voltage | 3.3V(Typ.) |
| Working Temperature | 0 ~ 50 ° |
| Storage Temperature | -20 ~ 60 °C |
| Current State: | In Production |
