Overview:
The RisingStar 27-inch 1200nits Sunlight Readable LCD Display is engineered for high-brightness outdoor applications, offering unmatched clarity even under direct sunlight. Designed for industrial-grade performance, this display supports integrators and distributors in delivering premium digital signage, transportation information systems, and outdoor interactive solutions.
Key Features:
High Brightness & Visibility: 1200 nits brightness with anti-glare surface ensures clear visibility in direct sunlight.
Panel Technology: Premium LG IPS TFT-LCD panel with UHD resolution of 3840×2160, providing crisp visuals and wide viewing angles.
Durable Design: Rugged, lightweight aluminum enclosure with industrial-grade reliability, capable of operating in extreme temperatures.
Long Lifespan & Low Maintenance: Over 50,000 hours of operational life with energy-efficient LED backlighting.
Versatile Connectivity: Supports HDMI, DisplayPort, and VGA interfaces for seamless integration.
Technical Specifications:
Item No | RS270ENT-N12 |
Panel Brand | RisingStar |
Panel Item | LM270WF7-SLA1 |
Size | 27 inch |
Panel Type | a-Si TFT-LCD, LCM |
Resolution: | 1920(RGB)×1080, FHD, 81PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 597.888(W)×336.312(H) mm |
Outline Size | 611.5(W)×355.8(H) ×13.2(D) mm |
Bezel Area | 601.5(W)×339.95(H) mm |
Surface Treatment | Antiglare,Hard coating (3H) |
Brightness | 500 to 5000nits |
Constrast Ratio. | 1000:1 |
View Angle | 89/89/89/89 (Typ.)(CR≥10) |
Display Model | IPS, Normally Black, Transmissive |
Response Time | 14 (Typ.)(G to G) |
Display Color | 16.7M , 72% NTSC |
Backlight | LVDS (2 ch, 8-bit) , 30 pins Connector |
Touch Screen | Without |
Panel Weight | 2.85/3.00kgs (Typ./Max.) |
Frame Rate | 60Hz |
Input Voltage | 5.0V(Typ.) |
Working Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
Current State: | In Production |
Applications:
Ideal for high-visibility outdoor environments, including:
Digital Signage: Outdoor retail displays, commercial advertising, and real estate signage.
Transportation Systems: Passenger information displays in bus stations, metro stations, and railway platforms.
Interactive Kiosks: EV charging stations, fueling stations, and smart city interactive panels.
Why RisingStar:
Trusted Expertise: Over a decade of experience in high-brightness LCD solutions for industrial and outdoor applications.
Certified Quality: ISO9001, CE, and RoHS certified, ensuring reliability and compliance with international standards.
Comprehensive Support: Detailed technical documentation, integration guides, and dedicated support for system integrators and distributors.
Partner with Us:
RisingStar enables integrators and distributors to deliver tailored high-brightness display solutions. Bulk purchasing, custom sizing, and interface options are available to meet project-specific requirements. Explore our product catalog and discover why our displays are trusted worldwide for outdoor and industrial-grade applications.

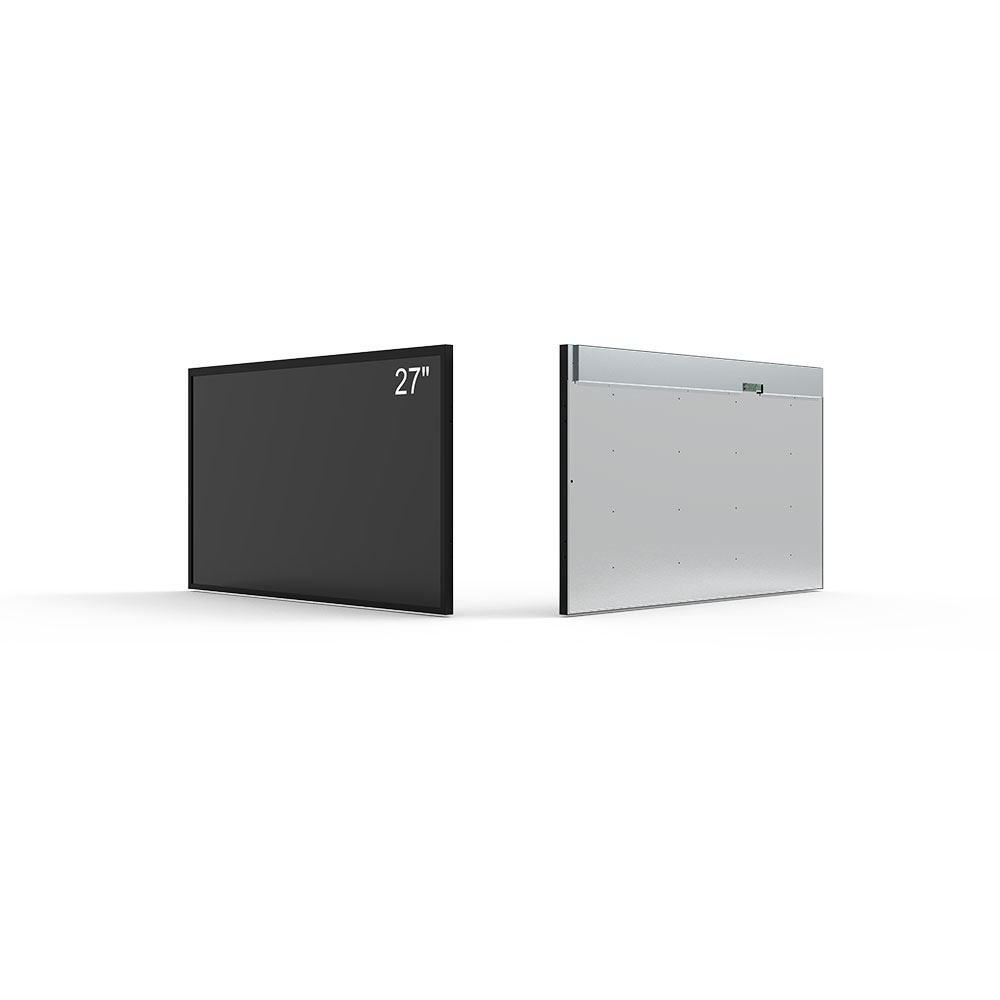

27 inch 1200nits sunlight readable LCD Display Main Features:
LG original IPS LCD panel LM270WF7-SLA1
High resolution: 1920*1080
Sunlight readable Brightness 1200 nits
Built-in Auto Light sensor
Wide View angle
Support 24 hours, 365days non-stop display
IPS LCD Panel built in this sunlight readable LCD display
it does not produce image distortion and minimizes color shift when viewed from different angles, the IPS panel provides clear images and instantly optimizes screen color and brightness.
27 inch 1200 nits sunlight readable LCD display with 2K Full HD resolution.
The 2K HD picture quality ensures great colour and rich details in all possible broadcasting, HD screen delicate presentation of fresh visual experience.

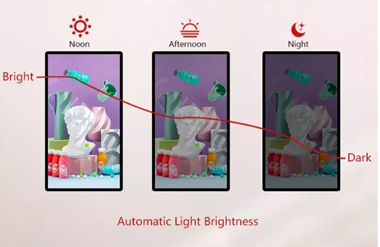

Auto brightness control
Different external lighting condition requires different brightness leverls, an onboard light sensor that built-in LCD panel measures the ambient light in the area and automatically adjust the image light accordkingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen.
Sunlight readable LCD display
To get a clear image under sunlight, the LCD display brightness should be over 800 nits+, and with good contrast ideally 1000 nits above, because the brightness of the ambient daylight is around 6000 nits, and the typical LCD display reflects about 14% of the ambient light, which is about 840 nits. Our high brightness LCD display are possible up to 1200 nits, that let you see a vivid world,see the real image even under the sunlight, it could give you a comfortable visual experience no matter what you are doing at any time.
RisingLCD is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests. OEM/ODM are all welcomed!
Item No | RS270ENT-N12 |
Panel Brand | RisingStar |
Panel Item | LM270WF7-SLA1 |
Size | 27 inch |
Panel Type | a-Si TFT-LCD, LCM |
Resolution: | 1920(RGB)×1080, FHD, 81PPI |
Pixel Format | RGB Vertical Stripe |
Display Area | 597.888(W)×336.312(H) mm |
Outline Size | 611.5(W)×355.8(H) ×13.2(D) mm |
Bezel Area | 601.5(W)×339.95(H) mm |
Surface Treatment | Antiglare,Hard coating (3H) |
Brightness | 500 to 5000nits |
Constrast Ratio. | 1000:1 |
View Angle | 89/89/89/89 (Typ.)(CR≥10) |
Display Model | IPS, Normally Black, Transmissive |
Response Time | 14 (Typ.)(G to G) |
Display Color | 16.7M , 72% NTSC |
Backlight | LVDS (2 ch, 8-bit) , 30 pins Connector |
Touch Screen | Without |
Panel Weight | 2.85/3.00kgs (Typ./Max.) |
Frame Rate | 60Hz |
Input Voltage | 5.0V(Typ.) |
Working Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
Current State: | In Production |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
