55 inch touch screen floor standing display

55 inch touch screen floor standing display

Panel BrandAUO
Panel NOP550HVN03.2
Screen size55 "
Screen typeLCD Monitor
Resolution1920 1080
Brightness (cd/m²)700-3000
Overview Specifications Customized Services Support & Shipping

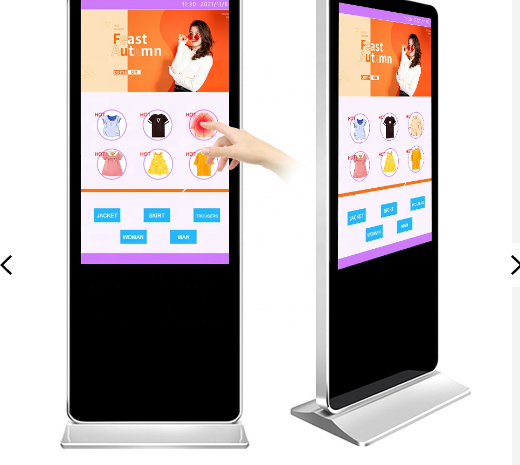

RisingLCD 55 inch touch screen floor standing display can add peoples interactivity at any environment and also can increase sales and enhance the image of any type of business, they are very effective for retail stores, hotels, police station, restaurant etc

Equipped with AUO P550HVN03.2 original screen and RisingeLCD customized backlight, this touch screen floor standing display could achieve 700-3000nits brightness and life cycles 50000hours.

P550HVN03

Built-in wifi, supported systems windows/ android, and all the media format, they are fully touch screen with interactive touch screen keyboard, have a 1080 high definition, auo screen with tempered glass, and connects to a scanner, printer, or other network devices. P550HVN03

Different sizes, different solution, touch or non-touch functionfor options. And wall mounted or floor standing are all available.

OEM and ODM are welcomed!

RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!

RS55-OEM 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
specification   Parameter
Item NoRS550ENT-N07
Size55   inch
Panel BrandAUO
Panel NoP550HVN03.2
Display Area1209*680mm
Brightness700-3000nits
Resolution1920*1080
Aspect Ratio16:09
Contrast4000：1
Response Time6/9   (Typ.)(Tr/Td) ms
View Angle89/89/89/89   (Min.)(CR≥10)
LEDDLED
Lifetime50000H
Intelligent dimmingSupport
Intelligent temperature controlSupport
Remote ControlSupport
Input VoltageAC90-264V,50/60HZ
Maximum Power265W
Shell MaterialMetal   Plate
Product Dimensions1254.5*725.4*89mm
Weight34KG
environmental conditionsSemi-outdoor
Operating temperature & humidity0-50℃/5%-95%RH
Main-boardAndroid   /PC/ HD Driver Board (Optional)
IO interfaceHDMI/VGA/DVI/USB/RJ45
Installation wayFloor   standing or wall mounted.
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
