Semi-outdoor window display large advertising screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Semi-outdoor window display large advertising screen outdoor kiosk totem digital poster signage elevator lcd display screen
Model | 55inch | 49inch | 43inch | |
Panel | Aspect Ratio | 16:9 | ||
Resolution | 1920*1080 | |||
Brightness | 2000cd/m2, 1500-5000cd/m2(customized) | |||
Contrast Ratio | 1000:1 | |||
Viewing angel | 178*178 | |||
Lifetime | 50,000HRS | |||
Operation hours | 24HRS | |||
Orientation | Landscape&Portrait | |||
Connectivity | Input | HDMI, USB,Audio. VGA | ||
Output | / | |||
External Control | RS232 | |||
Physical specification | Bezel color | Black | ||

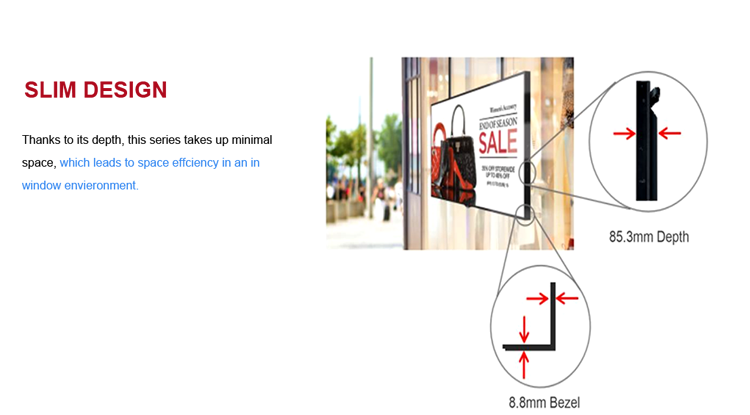

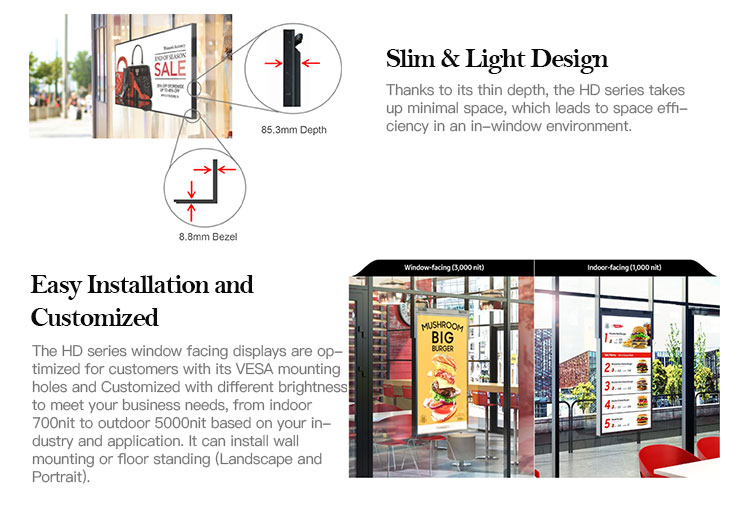

Bezel Width | 8.8mm | |||
Monitor Dimension | 1233*705*85.3mm | 1093*625*85.3mm | 965*553*85.3mm | |
Weight | 30kg | 26kg | 24kg | |
Environmental conditions | Operation Temperature | -20 ~ 70 °C | ||
Operation Humidity | 10%-80% | |||
Power Supply | AC100-240V, 50/60 hz | |||
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
