OM46N samsung 46 inch outdoor and window digital signage display

OM46N samsung 46 inch outdoor and window digital signage display

BrandSamsung
Model nameOM46N
Screen size46"
Screen typeOutdoor LCD
Resolution1920(RGB)×1080
Brightness (cd/m²)4000
Overview Specifications Customized Services Support & Shipping

OM46N samsung 46 inch outdoor and window digital signage display

OM46N is a outdoor and window digital signage display from Samsung, size 46 inch LCD, Processor Cortex A72 1.70GHz Quad-Core CPU, 2.5GB LPDDR4 main memory interface, 8GB storage, resolution 1920 x 1080, Edge LED back light and great 4000 Nit brightness with Wireless LAN and Ethernet, black color.

Main Features for OM46N

High efficiencyand low consumption

The OM46N deliver vibrant content with efficiency, The OMN Series addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.

High Brightness:

Samsung 46 inch ultra high brightness semi-outdoor was designed as storefront window display due to it 4000 nits high brightness, high contrast Contrast ratio 5000:1 it can offers bright images even under every weather condition.

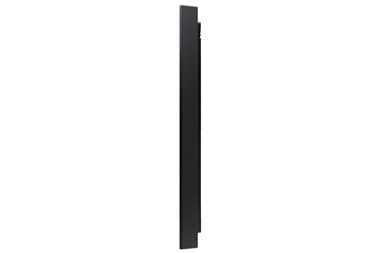

54.5mm Slim Design

Modernize space with slim design, 54.5mm ultra slim design that seamlessly integrates into any display window,and robust durability with validated dust protection and functionality that mitigates overheating

MagicINFO Player S6 built-in

Easy content management with a built-in management solution, powered by the TIZEN operation system that with the embedded MagicINFO Player S7,OM55N-S boosts the overall performance of the display and offers painless content management, that ensures seamless transitions and playback to delivery a better experience for both customers and store managers.

Clutter-Free Configuration

OM46N is with the cable guide and embedded Wi-Fi structural design that provide clean, organized look and allow for content and firmware updates without the need for additional messy cables.

OM46N 46 inch high brightness display 46 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Item NoOM46N
Panel Brandsamsung display
Diagonal Size46"
TypeE-LED BLU
Panel NoLH46OMNSLGB
Pixel   Pitch(mm)0.530 x 0.530
Resolution: 1920*1080   (Full HD)
Brightness(Typ.)4000   nits
Active   Display Area(mm)1018.08(H) x   572.67(V)
Dispay   Mode IPS
Aspect   Ratio: 16:9
Contrast  Ratio‘5000：1
View Angle89/89/89/89   (Typ.)(CR≥10)
Color Gamut72%
Operation   Hour24/7
Haze0%
Power   Supply AC 100-240V, 50/60Hz
Power   consumption Max(W/h)350
Operating Temperature-20 ~ 70 °C
Package   Weight 23kgs
VESA Mount(mm)400*400mm
Bezel   Width(mm)19.9mm
