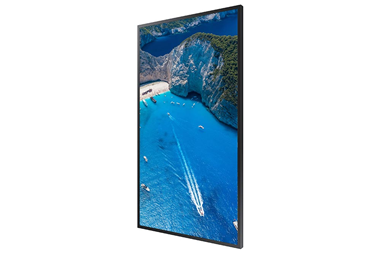

Samsung OMA Series 75" OM75A outdoor and window UHD display LH75OMAEBGBXZA

Samsung OMA Series 75" OM75A outdoor and window UHD display LH75OMAEBGBXZA

BrandSamsung
Model nameOMA75
Screen size75"
Screen typeOutdoor LCD
Resolution3840(RGB)×2160
Brightness (cd/m²)4000
Overview Specifications Customized Services Support & Shipping

Special Features for OMA series - OM75A

OMA series 75 inch Ultra High brightness semi-outdoor slim and clean back design, built-in magicinfo player. OM75A is with IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), WiFi Module Embedded

OM75A is Samsung high bright window display with UHD resolution, vivid and visible even in direct sunlight, slim and clear back design with embedded media player, easy content management for store managers.

OM75A is made possible by Samsung’s crystal processor 4k that allows the display to play lower resolution contents at UHD level quality while also improving the visibility of on-screen text and images.

OM75A window display can immerse your customers in every picture with a wider range of color. Dynamic crystal display creats lifelike images allowing the viewer to see even the subtlest details.

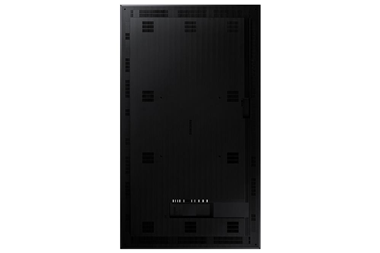

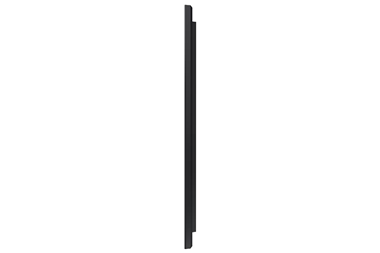

With the 85.4mm slim design, OMA75 can complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

OMA75 75 inch high brightness display 75 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Item NoOMA75
Panel Brandsamsung display
Diagonal Size75"
TypeVA
Panel NoLH75OMAEBGBXZA
Pixel   Pitch(mm)0.4296 x 0.4296
Resolution: 3840*2160   (4K UHD)
Brightness(Typ.)4000   nits
Active Display   Area(mm)1649.664(H) x   927.936(V)
Dispay   Mode IPS
Aspect   Ratio: 16:9
Contrast  Ratio1200:1
View Angle89/89/89/89   (Typ.)(CR≥10)
Color Gamut72%
Operation Hour24/7
Haze1%
Power   Supply AC 100-240V, 50/60Hz
Power   consumption Max(W/h)900
Operating Temperature-20 ~ 70 °C
Package   Weight 48.5kgs
VESA Mount(mm)400*400mm
Bezel   Width(mm)23.9mm
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
