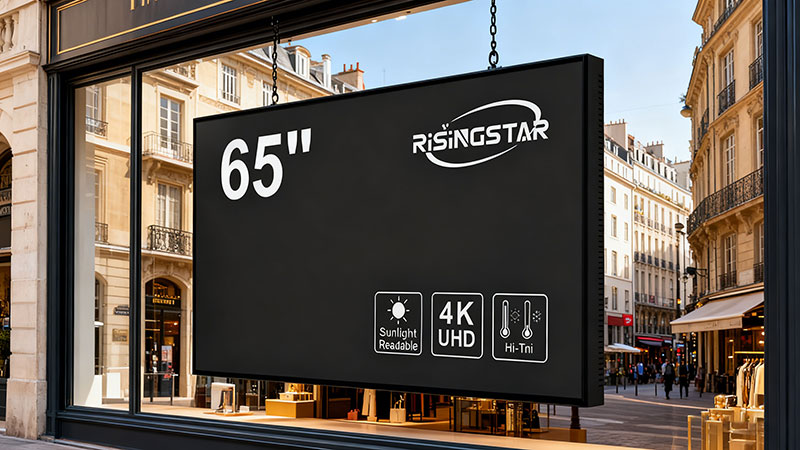

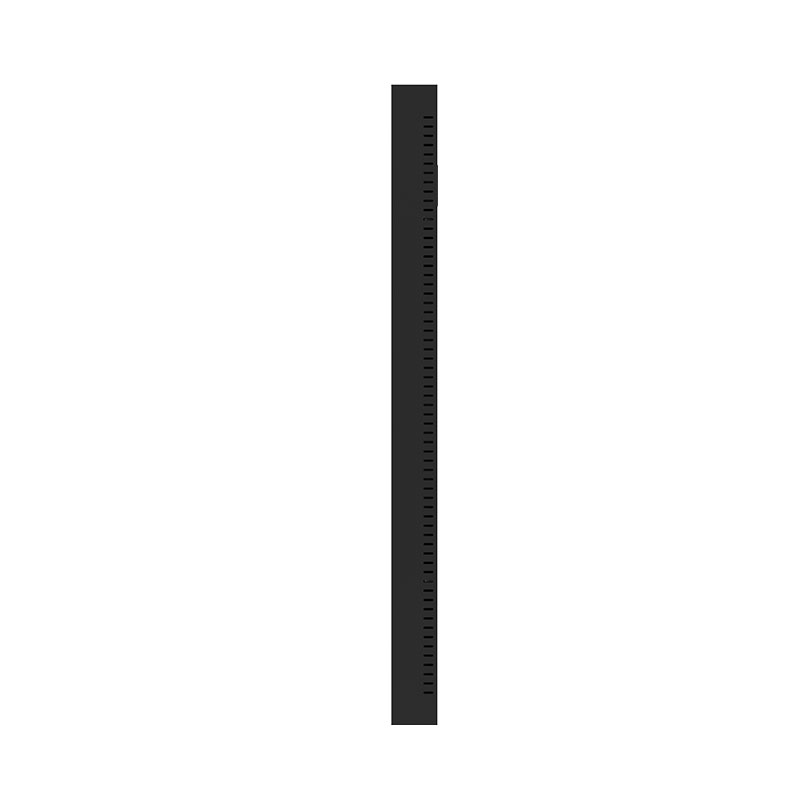

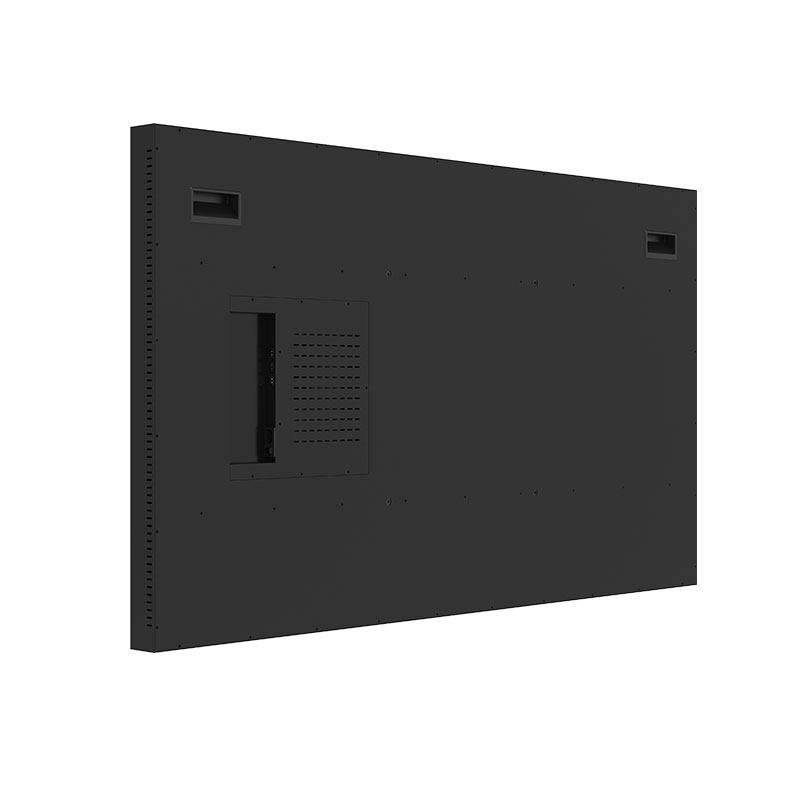

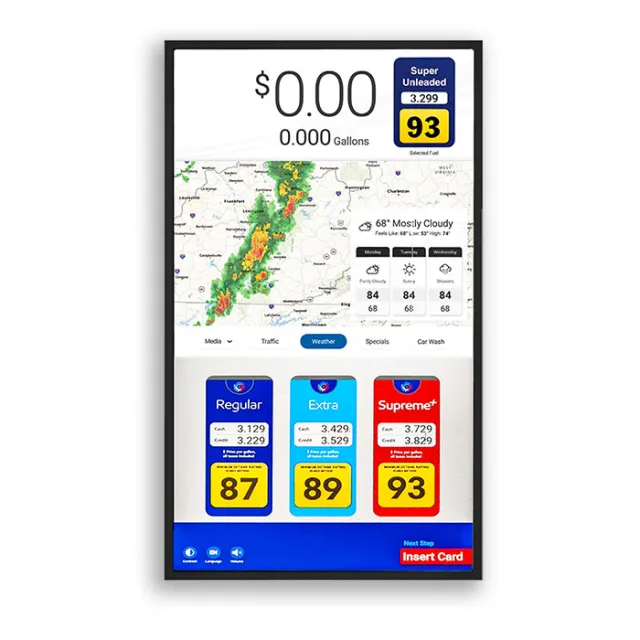

65 Inch High Brightness Window Facing Digital Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
| Item | Details |
|---|---|
| Model Name | RS650MNX02D01-BK |
| Screen Size | 65" |
| Display Area (mm) | 1428.48(W) × 803.52(H) |
| Brightness | 2500 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 900:1 |
| Response Time (Typical) | 8/10 (Tr/Td) ms |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Display Colors | 16.7M |
| OS | N/A |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 100–240 V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Input Interface | USB ×1, HDMI ×2, AC IN ×1 |
| Dimensions (mm) | 1453.5 × 828.5 × 50 |
| Mounting | 400 × 400 mm, 4-M8, Max Depth = 10 mm |
| Weight (Net) | TBD |
| IP Rating | N/A |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Key Features
High brightness 2500 nits
Ultra high contrast: 900:1
Sunlight Viewable Image
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
Specifications
| Item | Details |
|---|---|
| Model Name | RS650MNX02D01-BK |
| Screen Size | 65" |
| Display Area (mm) | 1428.48(W) × 803.52(H) |
| Brightness | 2500 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 900:1 |
| Response Time (Typical) | 8/10 (Tr/Td) ms |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Display Colors | 16.7M |
| OS | N/A |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 100–240 V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Input Interface | USB ×1, HDMI ×2, AC IN ×1 |
| Dimensions (mm) | 1453.5 × 828.5 × 50 |
| Mounting | 400 × 400 mm, 4-M8, Max Depth = 10 mm |
| Weight (Net) | TBD |
| IP Rating | N/A |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
