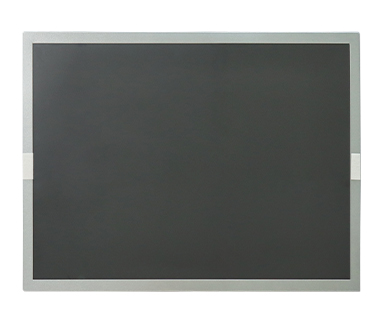

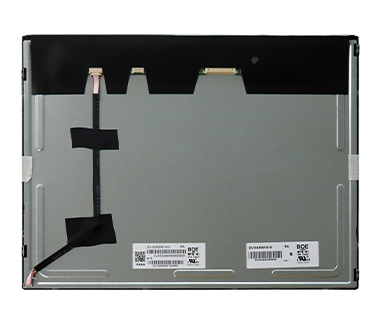

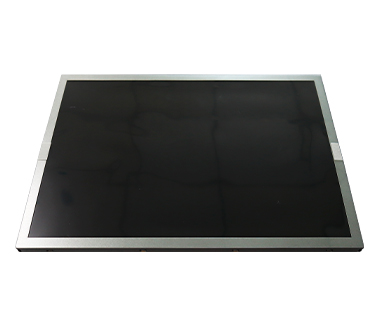

15 inch industrial high brightness TFT LCD panel

15 inch industrial high brightness TFT LCD panel

RisingStar® 15 inch RS150X0M-GE10 sunlight readable display. Hi-Tni solar-resilient tech for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

RisingStar RS150X0M-GE10 is a high brightness display that offer very high quality images and can be read even under sunlight, it is idea for outdoor device, such as marine, military, and industrial application.

RS150X0M-GE10 Main Features:

1. Original TFT LCD panel

2. High resolution: 1024(RGB)×768, XGA, 85PPI

3. Brightness up to 1000 nits

4.Military grade, Blackening Defect free

5. More brightness adjustment available: Auto brightness sensor, Manual brightness adjustment( PWM brightness adjustment, OSD brightness adjustment)

6. Multi touch (PCAP) is option.

1000nits high brightness

Risingstar RS150X0M-GE10 is 15 inches and boasting an impressive brightness level of 1000nits can be comfortably viewed even in broad daylight. The display has an added advantage of an auto-brightness control feature that ensures optimal brightness levels at all times. A built-in light sensor detects ambient lighting conditions and adjusts image brightness accordingly, providing users with an unrivaled viewing experience. This functionality also helps in cost-saving by reducing energy consumption, heat output, and prolongs the lifespan of the display.

True industrial Grade LCD IPS panel

Thanks to their special sunlight readable LCD panels technology, these displays can withstand surface temperatures up to 110 degree without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.

is a Wide Temperature,High Brightness,1024*768 TFT LCD monitor, WLED Backlight,Life ≥ 100K hours,With LED Driver,with LVDS interface. and Wide Operational Operating Temperature -20 ~ 70 °C

Screen Diagonal15  inch
Brand RisingStar
Model NoRS150X0M-GE10
Active Area304.128(W)×228.096(H) mm
Pixels1024(RGB)×768, XGA, 85PPI
Physical Size326.5(W)×253.5(H)×10(D) mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1000:1
White Luminance ( Center )1000 cd/m2 (Typ.)  [cd/m2 ]
Optical Response Time30 (Typ.)(Tr+Td) ms
Nominal Input Voltage3.3 V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [g]930g
Interface Type20 pins   LVDS (1 ch, 8-bit)
Support Color16.7M , 72% NTSC
Surface TreatmentHard coating (3H),
RoHS ComplianceRoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS150X0M-GE10 15 inch high brightness display 15 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
