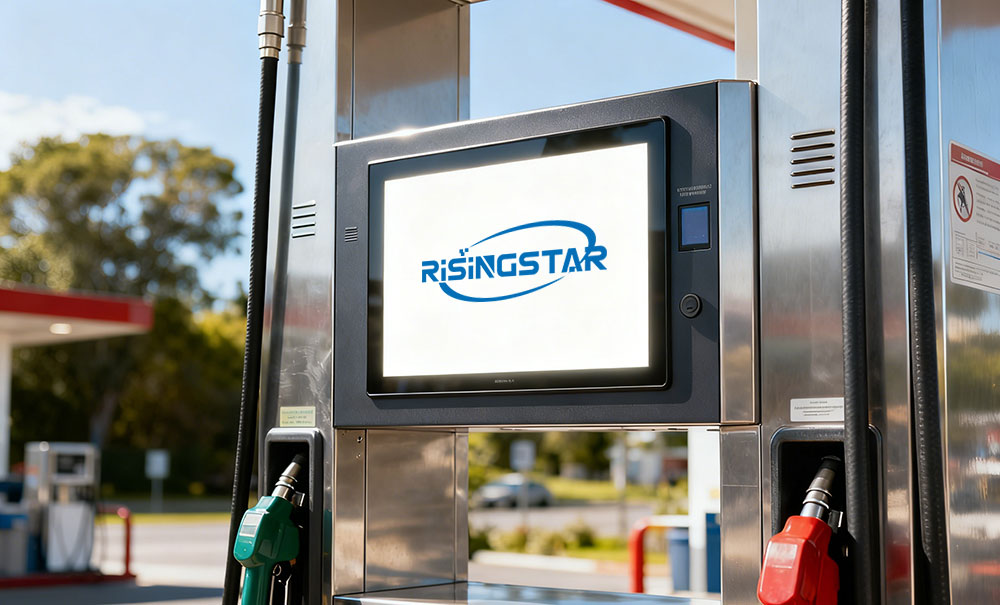

15" High Brightness 4:3 TFT/IPS LCD Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
15" High Brightness LCD Display - All Models (RisingStar)
Normal Series (N Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS150ENT-NE05 | 500 | 1024 × 768 |
| RS150ENT-NE10 | 1000 | 1024 × 768 |
| RS150ENT-NE15 | 1500 | 1024 × 768 |

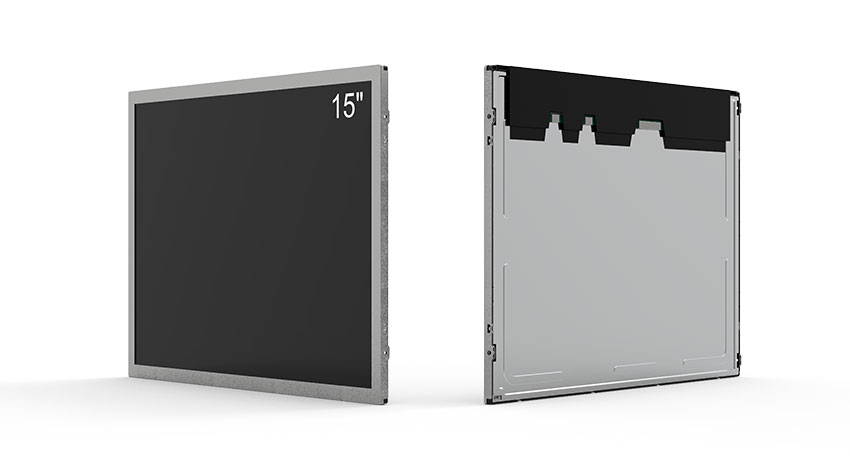

15.0" Industrial High Brightness LCD Module – Specification Sheet
Product Overview
RisingStar 15.0-inch a-Si TFT-LCD module is designed for industrial environments requiring long-life, sunlight-readable visibility and wide viewing performance. Featuring NPVA “normally black” optical mode, up to 1500 nits brightness, and 2000:1 contrast ratio, this display ensures excellent readability under strong ambient light. With extended operating temperatures, an integrated LED driver, and long backlight lifetime, it is ideal for mission-critical applications.
Key Features
High brightness range 500–1500 nits for sunlight-readable performance
Ultra-high 2000:1 contrast ratio
NPVA optical mode, normally black, transmissive
Wide viewing angle 88/88/88/88 (CR≥10)
Fast response: 16/7 ms (Tr/Td)
Backlight lifetime 70,000 hours, with integrated LED driver
Supports 262K / 16.7M colors, 72% NTSC
Includes 60Hz, 120Hz (with MEMC), and 240Hz optional motion enhancement
Industrial-grade temperature range –20°C to 70°C
LVDS interface (1ch, 6/8-bit), 20-pin
Durable matte anti-glare surface, 3H hard coating
Lightweight module: 0.96–1.00 kg
Specifications
| Item | Description |
|---|---|
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1024 (RGB) × 768, XGA, 85 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 304.128(W) × 228.096(H) mm |
| Viewing Area | 307.4(W) × 231.3(H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500–1500 cd/m² |
| Contrast Ratio | 2000 : 1 (Typical), Transmissive |
| Optical Mode | NPVA, Normally Black |
| Viewing Angle (CR≥10) | 88/88/88/88 (L/R/U/D) |
| Response Time | 16/7 ms (Tr/Td) |
| Color Depth | 262K / 16.7M colors, 72% NTSC |
| Backlight System | WLED, 70,000 hours, Integrated LED Driver |
| Weight | 0.96 / 1.00 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz Input, with MEMC) 120Hz+120Hz (120Hz panel + 120Hz scanning backlight) 240Hz (60Hz Input, with MEMC) |
| Signal Interface | LVDS, 1 channel, 6/8-bit, 20 pins |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Suitable For | Gaming, HMI, Automation |
Technology Notes (Added for Professionalism)
NPVA Optical Mode – Normally Black Advantage
The NPVA (New Patterned Vertical Alignment) normally black mode offers:
Higher contrast ratio
Deeper black levels
Clearer images in bright environments
Improved color uniformity across wide angles
High Brightness Up to 1500 nits
Allows outdoor/bright-site visibility, ideal for sunlight-readable industrial applications such as kiosks, manufacturing terminals, or vehicle-mounted equipment.
MEMC Motion Enhancement Options
Reduces motion blur
Suitable for high-speed applications (gaming, sports terminals, vehicle systems)
Recommended Applications
This 15-inch high-brightness LCD module is ideal for:
Industrial & Commercial
Factory HMI panels
Automation control terminals
Test and measurement equipment
Industrial PCs
Smart vending machines
Outdoor & Semi-Outdoor
Outdoor kiosks
EV charging stations
Ticketing machines
Information terminals
Public transportation systems
Specialty & Gaming
Slot machines
Arcade machines
Ruggedized embedded systems
Military or rugged controllers (temperature-resistant)
Specifications
| Item | Description |
|---|---|
| Panel Size | 15.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1024 (RGB) × 768, XGA, 85 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 304.128(W) × 228.096(H) mm |
| Viewing Area | 307.4(W) × 231.3(H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500–1500 cd/m² |
| Contrast Ratio | 2000 : 1 (Typical), Transmissive |
| Optical Mode | NPVA, Normally Black |
| Viewing Angle (CR≥10) | 88/88/88/88 (L/R/U/D) |
| Response Time | 16/7 ms (Tr/Td) |
| Color Depth | 262K / 16.7M colors, 72% NTSC |
| Backlight System | WLED, 70,000 hours, Integrated LED Driver |
| Weight | 0.96 / 1.00 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz Input, with MEMC) 120Hz+120Hz (120Hz panel + 120Hz scanning backlight) 240Hz (60Hz Input, with MEMC) |
| Signal Interface | LVDS, 1 channel, 6/8-bit, 20 pins |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
