37.6 inch stretch TFT LCD digital signage for public transport station
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

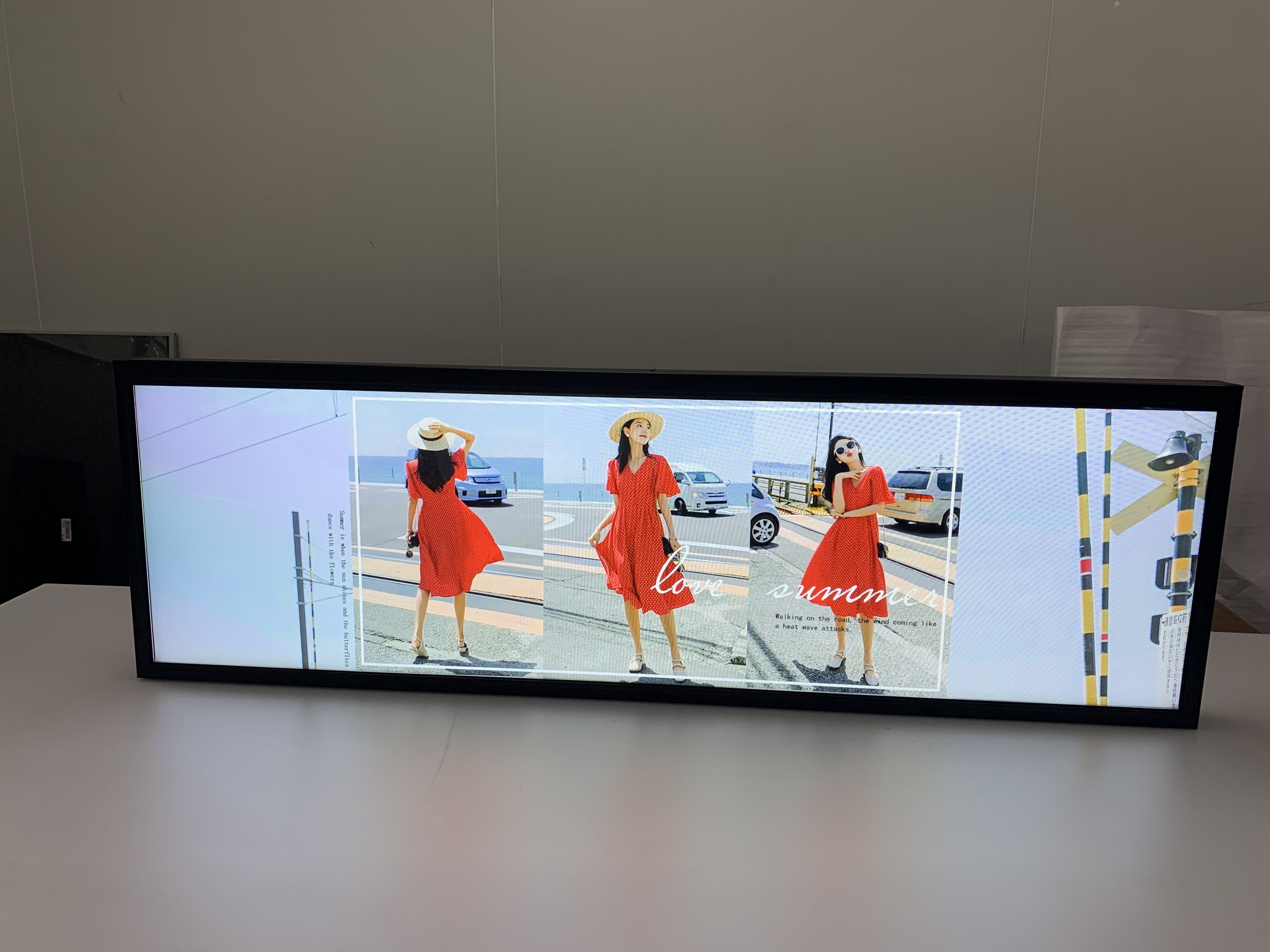

Risingstar 37.6 inch wide stretch TFT LCD display is designed to meet the special applications, it is with 2000 nits high brightness and ultra-wide aspect ratio that is ideal for grabbing your audience’s attention, and give perfect visual performance in a wide outdoor public application.
The stretch TFT LCD displays most of time used for digital signage and public transport suitable for applications in public transport like bus and Train or Retail. We also offer sunlight readable high bright bar types stretched display which brightness is up to 3000 nits, and size from 19.5 inch to 90 inch, it is suitable for ticket and vending machines and outdoor waterproof requirements.
The working temperature of this 37.6 inch wide stretch LCD display is -20 ~ 70°C, and the storage temperature is -30 ~ 80°C. The aspect ratio is >3:1 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 919.296 (width) × 258.552 (height) mm, the appearance size is 964.5 (width) *303.8 (height) *75 (thickness ) mm.
Stretch LCD Display Feature
Ultra Wide aspect ratio
Slim Bezel Bar LCD Design
2000 nits High Brightness
Wide Viewing Angle
LED Backlight and long life time
Anti-Shock
Low Power Consumption
| Factory Model No: | RS376ENT-N20 |
| Panel Brand | BOE Display |
| Panel No.: | RV376FBB-N00 |
| Screen Size | 37.6" |
| Panel Type. | IPS a-Si TFT-LCD, |
| Active Area(mm) | 919.296*258.552 (H×V) |
| Aspect Ratio | 16:4.5 |
| Native Resolution | 1920*540 (FHD) |
| Refresh Rate | 60Hz |
| Brightness | 2000nit (Typ, w/ Glass) |
| Contrast Ratio | 1000:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Support Color: | 16.7M /1.07B, 72% NTSC |
| Response Time | 14 (Typ.) (G to G)ms |
| Surface Treatment (Haze) | Hard coating (3H), Antiglare (Haze 1%) |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | -20 ~ 70 °C |
| Storage Temperature: | -30 ~ 80 °C |
| Portrait / Landscape | Yes / Yes |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
