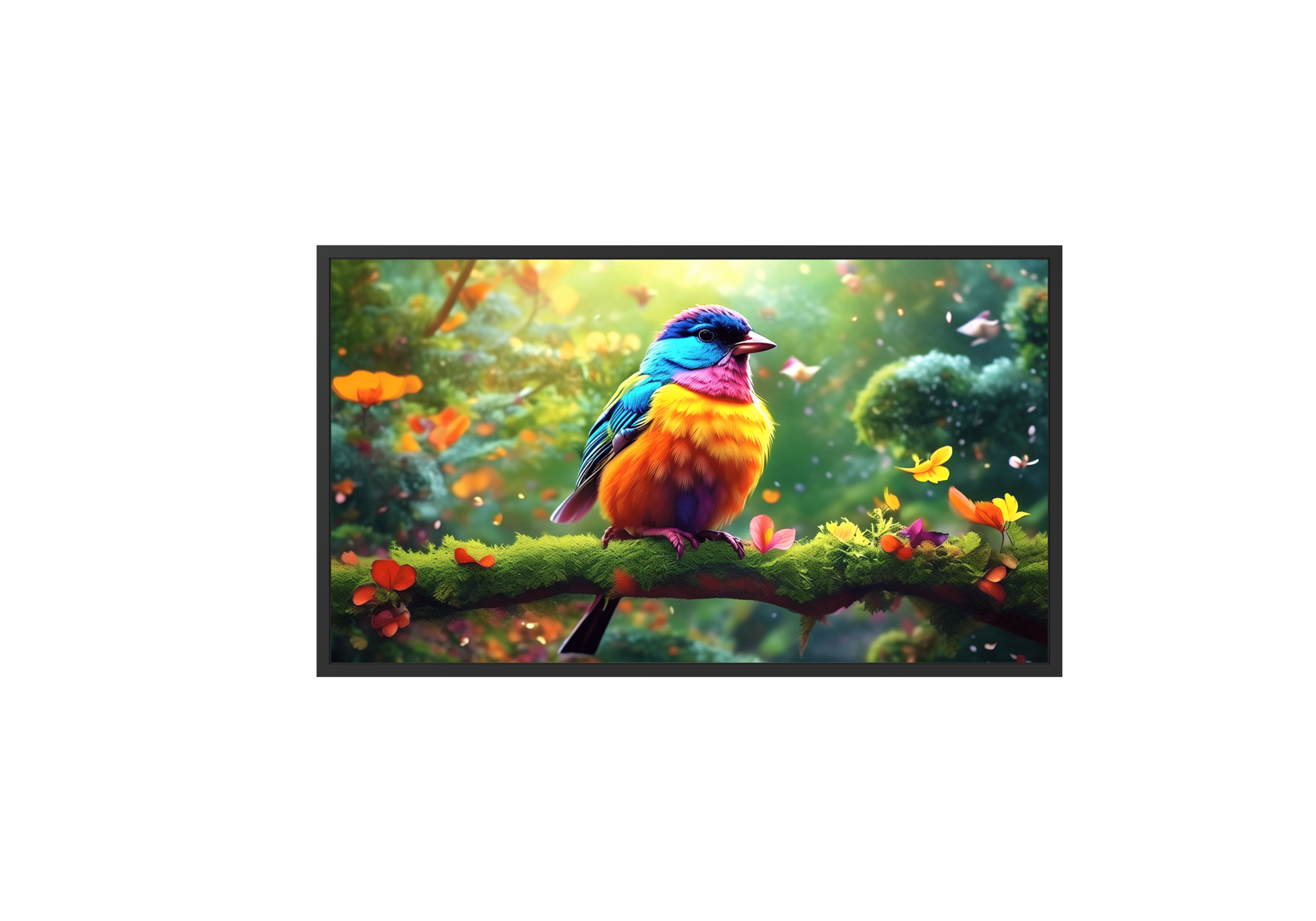

Restaurant Menu LCD Panel

Restaurant Menu LCD Panel

BrandRising
Model nameRS500ENT-N20
Screen size43"
Screen typeLCD
Resolution1920(RGB)×1080 Surface treatment: matte, Hard coating (3H)
Contrast degree1300:1
Best angleFull viewing angle Optical mode: IPS, normally black display, transmissive
Overview Specifications Customized Services Support & Shipping

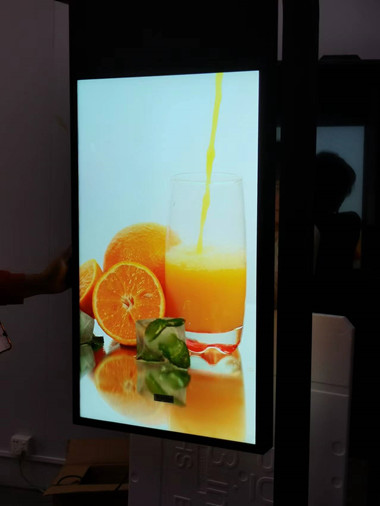

The Risingstar Restaurant Menu LCD Panel modernizes your menu. Turn your static food and drink list into a dynamic visual experience, which is mouth-watering. The Restaurant Menu LCD Panel can display a mix of video clips, animations and images to attract your customers and attract traffic into your restaurant. By using an effective menu design, your eyes will soon become bigger than your stomach.

At Risingstar, we can provide you with a large number of Restaurant Menu LCD Panel solutions. Successful cases: McDonald's, KFC, Starbucks, etc.

Functions and features:

1. LG original LCD panel, industrial-grade LCD panel is better than ordinary LCD panel

2. High resolution 1920*1080/3840*1080, can be customized

3. How high the working temperature is -0-60 degrees Celsius

4. Brightness up to 700-3000 nits

5. 50,000 hours long life

6. Support text, picture, video

7. Support horizontal/vertical screen playback

8. Interface: HDMI(2)/DP/DVI-D/RJ45/RS232C/USB

9. Android/windows/raspberry pi/display board

RS500ENT-N20 43 inch high brightness display 43 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

Techspecs:

Items

  Specification

  Note

Panel Brand

LG


Diagonal Size

43" 50" 55" 65" 75"


Panel Type

a-Si TFT-LCD

LCM

Resolution

1920(RGB)×1080   91PPI


Pixel Format

    RGB Vertical Stripe


Display Area

    1095.84 × 616.41 mm (H×V)


Outline Size:

1215.04×738.41×95 mm (H×V×D)


Surface

Antiglare (Haze 1%), Hard coating (2H).


Brightness

   700 to 3000 cd/m² (Typ.)


Contrast Ratio

   1400:1 (Typ.) (TM)


waterproof level

   IP65 IP66 IP67


Protection level

   IK10


Support Color

1.67B   100% NTSC


Viewing Angle

    89/89/89/89 (Min.)(CR≥10)


Display Mode

IPS, Normally Black, Transmissive .


Response Time

5 (Typ.)(G to G); 8 (Typ.)(MPRT).


Lamp Type

WLED , 50K hours , With LED Driver


Frequency:

    60Hz


Panel Weight

45.0/47.0Kgs (Typ./Max.)


Application

Restaurant  Menu LCD Panel


Signal Interface

HDMI/ DP / DVI / RJ45 / RS232 / USB


Input Voltage:

110 to 260V (Typ.).


Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
