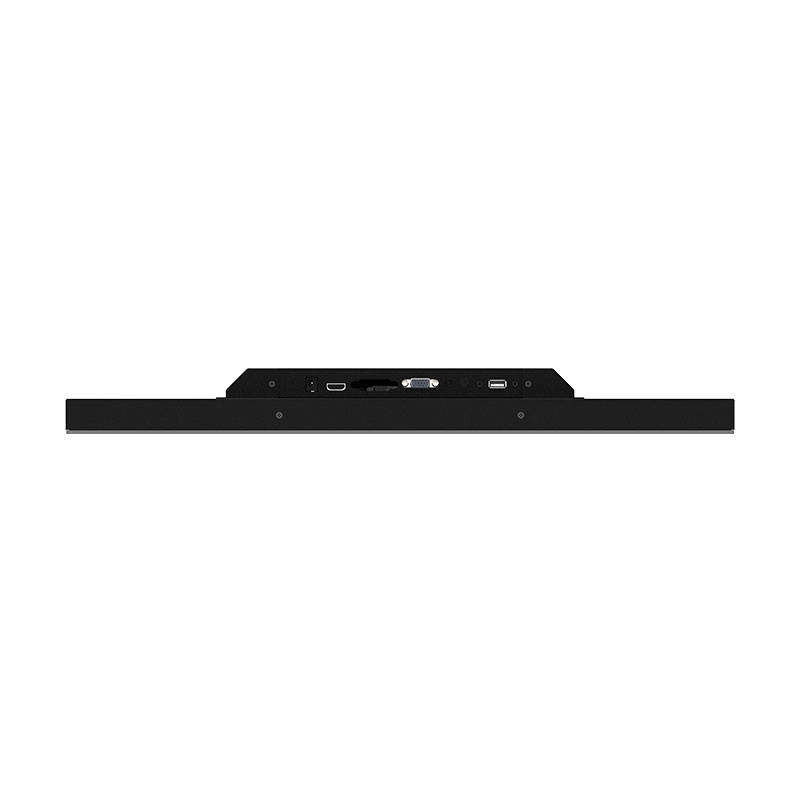

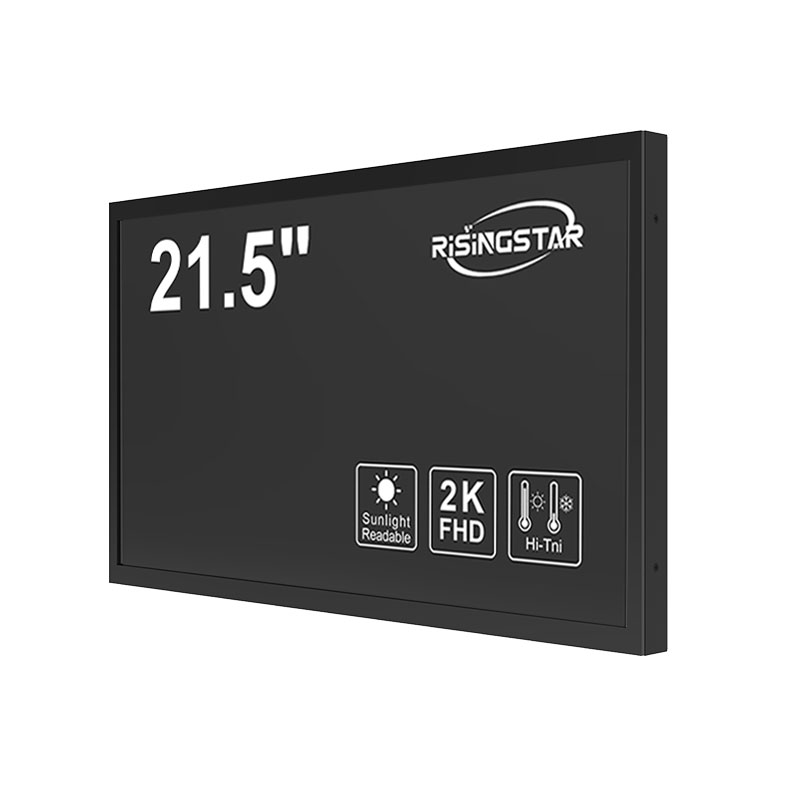

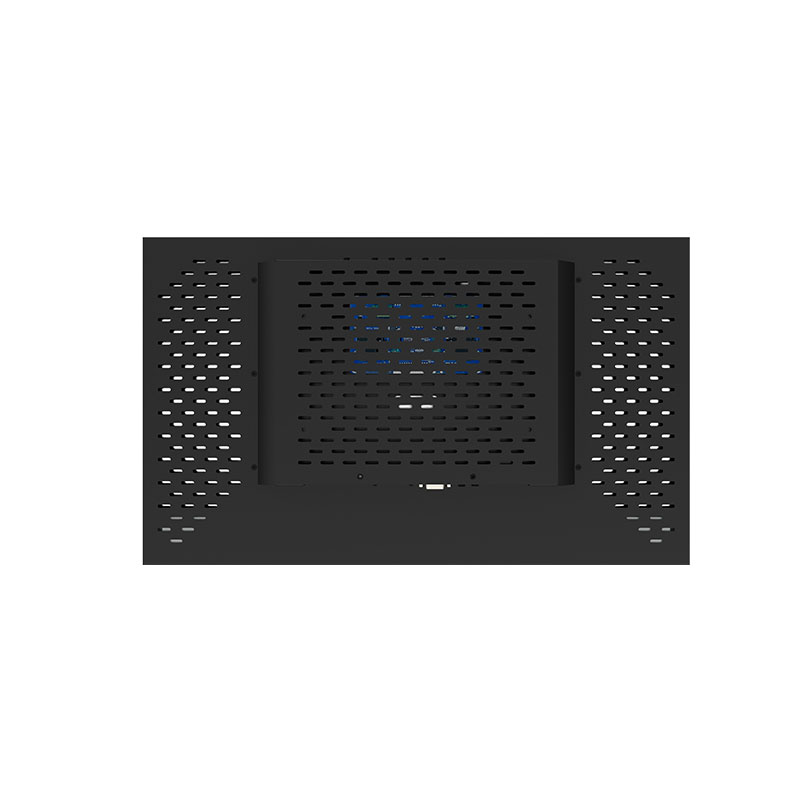

21.5" P215HAN02.0 TFT LCD Panel Module
RisingStar® 21.5 inch P215HAN02.0 sunlight readable display. 2500 nits high brightness, 1920 X 1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Sample Order
1 Unit MOQ
Bulk Order
10+ Units
Tiered Discounts
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RisingStar 21.5" High Brightness LCD Panel – P215HAN02.0
Specifications
| Item | Description |
|---|---|
| Panel Brand | RisingStar |
| Panel Model | P215HAN02.0 |
| Panel Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920 (RGB) × 1080 (FHD), 102 PPI |
| Pixel Layout | RGB Vertical Stripe |
| Display Area | 476.064 (W) × 267.786 (H) mm |
| Viewable Area | 480.7 (W) × 271.8 (H) mm |
| Module Dimensions | 501.1 (W) × 292.2 (H) × 16.12 (D) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 1500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR ≥10) |
| Working Mode | AHVA, Normally Black, Transmissive |
| Best Viewing Angle | Full Viewing Angle |
| Response Time | 25 ms (Typ.) (Tr+Td) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight | WLED, 4 Strings × 2CN, 50,000 Hours, No Driver |
| Refresh Rate | 60Hz |
| Touch Screen | No Touch |
| Panel Weight | 2.10 kg (Typ.) |
| Application | Outdoor, Industrial Control |
| Signal Interface | LVDS (2-ch, 8-bit), 30-pin Terminal |
| Drive Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
RisingStar 21.5" High Brightness LCD Panel – P215HAN02.0
Specifications
| Item | Description |
|---|---|
| Panel Brand | RisingStar |
| Panel Model | P215HAN02.0 |
| Panel Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920 (RGB) × 1080 (FHD), 102 PPI |
| Pixel Layout | RGB Vertical Stripe |
| Display Area | 476.064 (W) × 267.786 (H) mm |
| Viewable Area | 480.7 (W) × 271.8 (H) mm |
| Module Dimensions | 501.1 (W) × 292.2 (H) × 16.12 (D) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 1500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR ≥10) |
| Working Mode | AHVA, Normally Black, Transmissive |
| Best Viewing Angle | Full Viewing Angle |
| Response Time | 25 ms (Typ.) (Tr+Td) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight | WLED, 4 Strings × 2CN, 50,000 Hours, No Driver |
| Refresh Rate | 60Hz |
| Touch Screen | No Touch |
| Panel Weight | 2.10 kg (Typ.) |
| Application | Outdoor, Industrial Control |
| Signal Interface | LVDS (2-ch, 8-bit), 30-pin Terminal |
| Drive Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
P215HAN02.0
21.5 inch high brightness display
21.5 inch sunlight readable LCD
High brightness display
Sunlight readable display
Outdoor waterproof display
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
