15.6 Inch Outdoor High Brightness Digital Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
15.6 Inch Outdoor High Brightness Digital Display – Industrial-Grade LCD Module
The 15.6-inch outdoor high brightness digital display is a robust and reliable LCD module tailored for high-visibility industrial applications in demanding outdoor environments. Utilizing a-Si TFT-LCD technology, this WXGA panel (1366×768 resolution, 100 PPI) delivers clear and sharp images with a wide viewing area of 344.232(W) × 193.536(H) mm. The unit supports a brightness range from 500 nits up to 5000 nits, making it ideal for sunlight-readable use in kiosks, charging stations, and public information systems.
This display features a wide viewing angle of 85°/85°/80°/80° (CR≥10), with 16.2M colors covering 70% NTSC for vibrant and accurate visuals. The screen’s matte surface with 3H hard coating enhances readability while reducing glare. Supporting refresh rates up to 240Hz with integrated MEMC technology, it ensures smooth visual transitions in dynamic environments.
Built with industrial durability in mind, the unit operates reliably between -20~70°C and stores safely from -20 ~ 70 °C. With a contrast ratio of 500:1 (typical, transmissive mode) and WLED backlighting rated for 50,000 hours, it’s engineered for long-term outdoor use. The display supports LVDS 30-pin signal input, operates at 5.0V, and comes without a touch panel, allowing for flexible system integration.
Whether in transportation, retail signage, or smart vending applications, this 15.6-inch high brightness display delivers performance, visibility, and longevity you can trust.

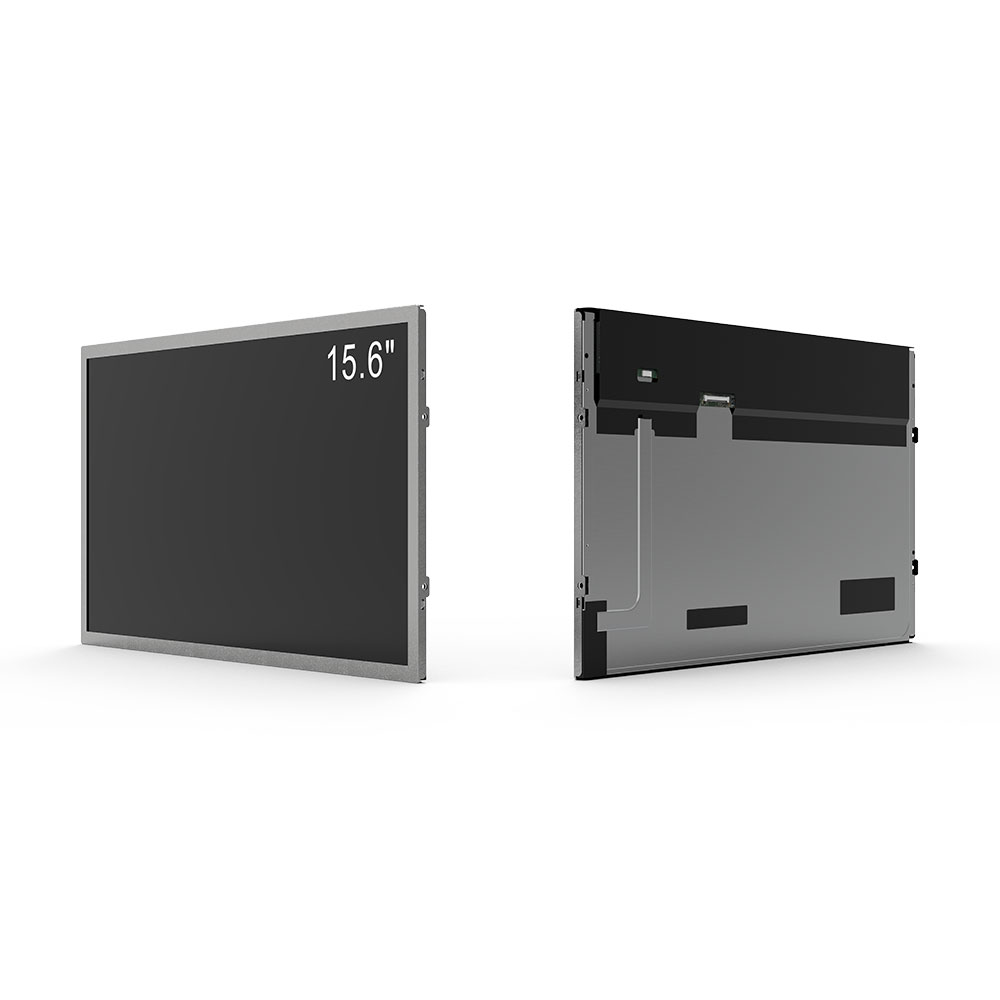

RisingStar 15.6-inch high-brightness display panel

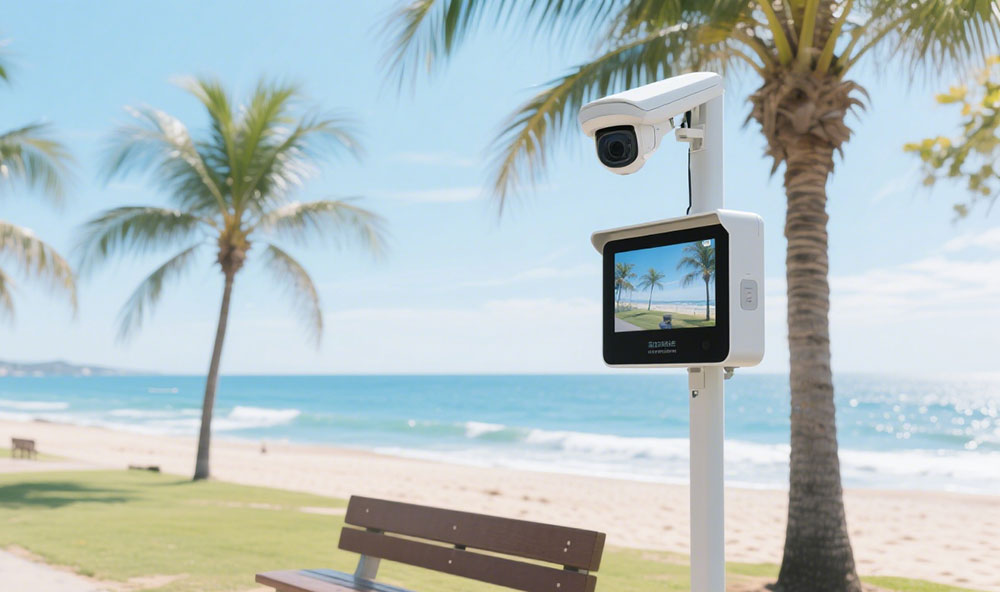

RisingStar 15.6-inch high-brightness display panel outdoor application case
15.6 Inch Outdoor High Brightness Digital Display – Technical Specifications
| Specification | Details |
|---|---|
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1366 (RGB) × 768, WXGA, 100 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (W × H) | 344.232 × 193.536 mm |
| Outline Dimensions | 347.54 × 196.83 mm |
| Brightness Range | 500 nits to 5000 nits |
| Viewing Angle (CR≥10) | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Display Colors | 16.2M Colors, 70% NTSC Coverage |
| Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Response Time (Tr/Td) | 6/2 ms (Typ.) |
| Backlight System | WLED with Driver, 50,000 Hours Lifetime |
| Refresh Rate | 60Hz (Input), MEMC-enhanced 120Hz/240Hz Options Available |
| Optical Mode | TN (Normally White), Optional IPS/VA Variants |
| Signal Interface | LVDS (1 channel, 8-bit), 30-pin Connector |
| Power Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Weight | 1.25 kg (Typ.), 1.35 kg (Max.) |
| Touchscreen | No Touchscreen (Customizable if required) |
| Recommended Applications | Outdoor Digital Signage, EV Charging Stations, Kiosks |
15.6 Inch Outdoor High Brightness Digital Display – Technical Specifications
| Specification | Details |
|---|---|
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1366 (RGB) × 768, WXGA, 100 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (W × H) | 344.232 × 193.536 mm |
| Outline Dimensions | 347.54 × 196.83 mm |
| Brightness Range | 500 nits to 5000 nits |
| Viewing Angle (CR≥10) | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Display Colors | 16.2M Colors, 70% NTSC Coverage |
| Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Response Time (Tr/Td) | 6/2 ms (Typ.) |
| Backlight System | WLED with Driver, 50,000 Hours Lifetime |
| Refresh Rate | 60Hz (Input), MEMC-enhanced 120Hz/240Hz Options Available |
| Optical Mode | TN (Normally White), Optional IPS/VA Variants |
| Signal Interface | LVDS (1 channel, 8-bit), 30-pin Connector |
| Power Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Weight | 1.25 kg (Typ.), 1.35 kg (Max.) |
| Touchscreen | No Touchscreen (Customizable if required) |
| Recommended Applications | Outdoor Digital Signage, EV Charging Stations, Vending Machines, Kiosks |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
