Our 17 inch 4:3 ratio high brightness LCD panel is engineered for demanding industrial applications where reliable performance and clear visibility are essential—even in high ambient light environments. Featuring a 1280x1024 SXGA resolution with a pixel density of 96 PPI, this a-Si TFT-LCD module offers a crisp and detailed image across its 337.92(W) × 270.336(H) mm active display area.
The panel supports a brightness range from 500 to 5000 nits, making it ideal for sunlight-readable applications. With a contrast ratio of 1000:1 and wide viewing angles of 85/85/80/80 (CR≥10), users are guaranteed consistent image quality from virtually any direction.
Designed with a matte surface and hard coating (3H) for reduced glare and enhanced durability, this module utilizes WLED backlighting with a lifespan of 50,000 hours and includes an integrated LED driver. The color gamut covers 72% NTSC, offering rich and accurate color reproduction across 16.7 million colors.
Additional features include a fast response time of 3.5/1.5 ms (Tr/Td), a 60Hz refresh rate with optional MEMC-supported 120Hz/240Hz upgrade paths, and a lightweight aluminum structure at 1.30 kg. The panel supports LVDS signal interface (2 channel, 8-bit, 30-pin), operates on 5V input, and is optimized for industrial use with operating temperatures from 0 to 50°C and storage temperatures ranging from -20 to 60°C.
This high brightness 17” LCD module is the ideal solution for factory automation, kiosks, marine equipment, and any outdoor or semi-outdoor environment requiring reliable, sunlight readable performance.

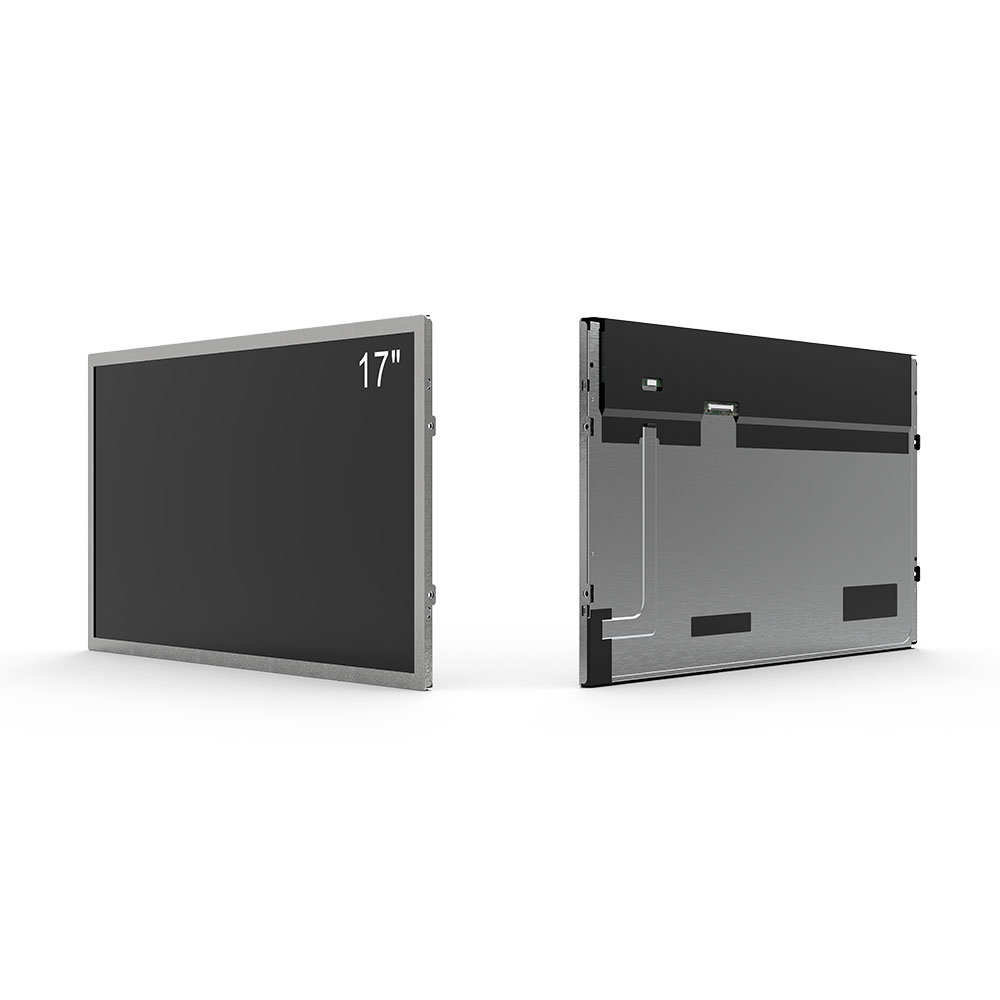

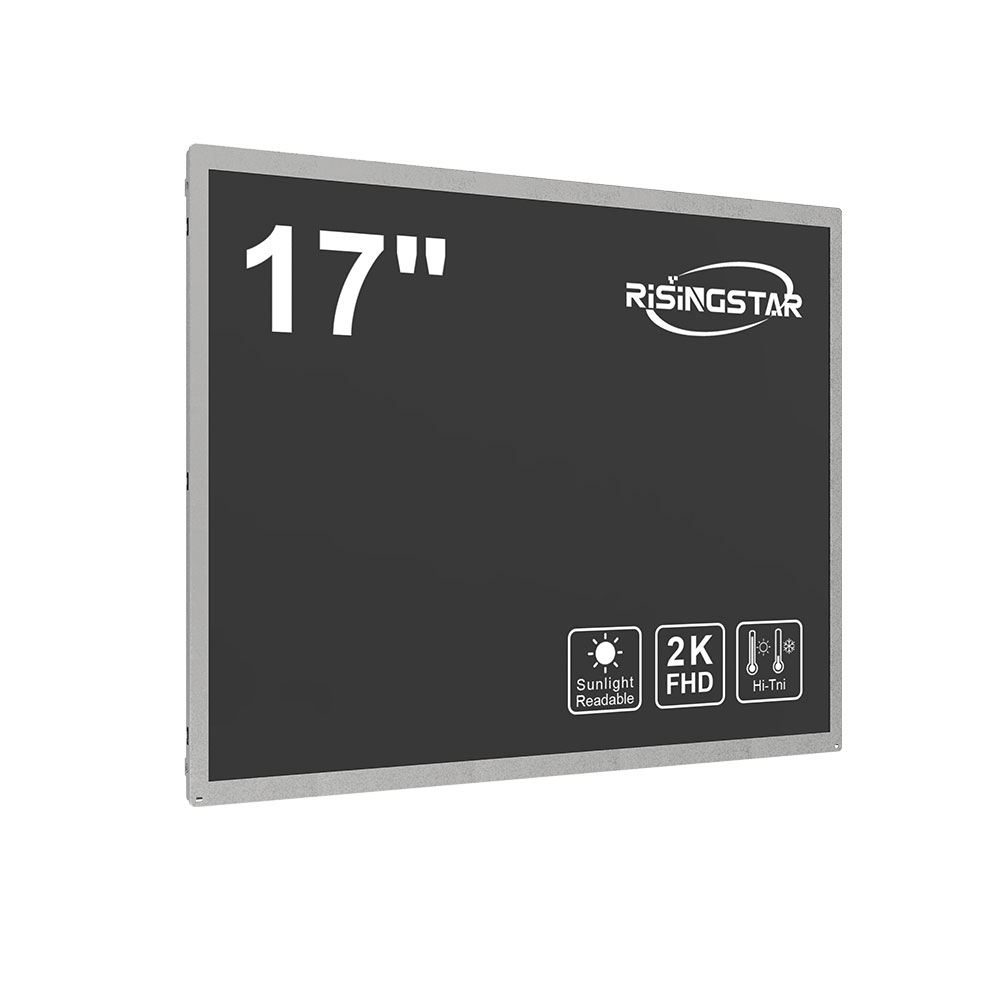

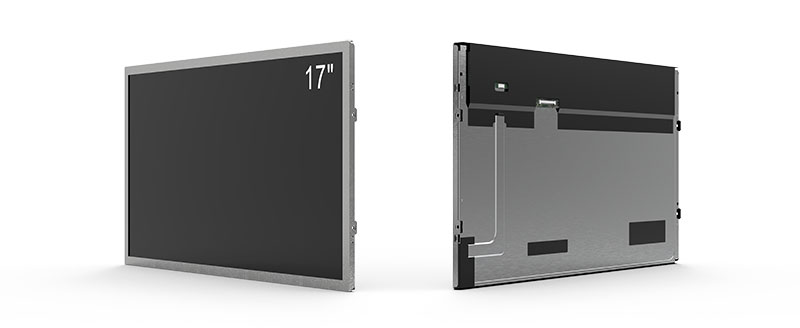

Product pictures

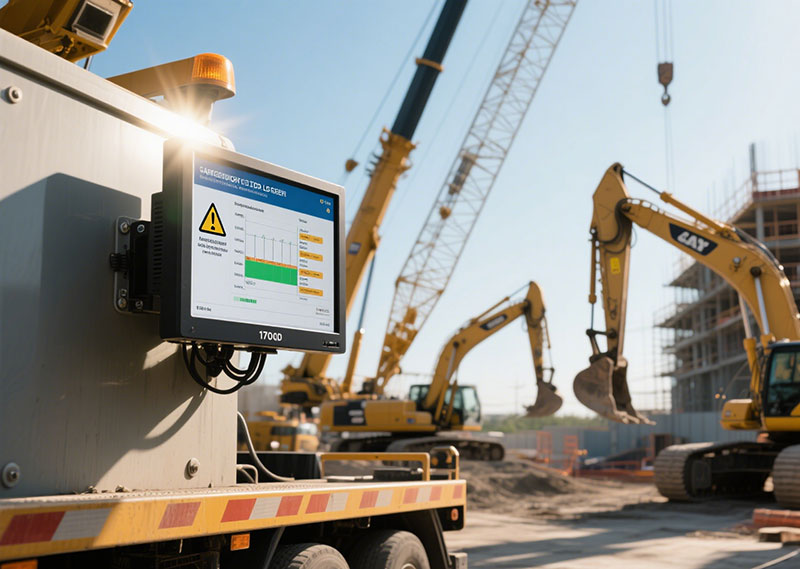

17 inch high brightness LCD panel industrial digital display use case
| Item | Specification |
|---|---|
| Panel Size | 17.0 inches |
| Aspect Ratio | 4:3 |
| Resolution | 1280 (RGB) × 1024 (SXGA), 96 PPI |
| Display Area | 337.92 (W) × 270.336 (H) mm |
| Viewable Size | 341.6 (W) × 274.0 (H) mm |
| Brightness | 500 to 5000 nits (adjustable) |
| Contrast Ratio | 1000:1 (Typical, transmissive) |
| Viewing Angle (CR≥10) | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Response Time (Tr/Td) | 3.5 / 1.5 ms (Typical) |
| Display Mode | TN, Normally White, Transmissive |
| Surface Treatment | Anti-glare, Hard coating (3H) |
| Color Depth | 16.7M colors, 72% NTSC |
| Backlight Type | WLED, 50,000 hours lifespan, integrated LED driver |
| Weight | 1.30 kg (Typical) |
| Refresh Rate | 60Hz (default), optional 120Hz/240Hz with MEMC circuit |
| Touch Function | None |
| Signal Interface | LVDS (2 channel, 8-bit), 30-pin connector |
| Power Supply Voltage | 5.0V (Typical) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Application | Industrial displays, kiosks, marine, outdoor terminals, automation, et |
RisingStar’s 17-inch 4:3 high brightness LCD panel is designed for professional applications where visibility, durability, and reliability are critical. With brightness levels up to 5000 nits, this industrial-grade panel ensures excellent sunlight readability, even in outdoor or high-glare environments. Its rugged structure and low-power LED backlight provide long-lasting performance with over 50,000 hours of lifespan.
Ultra Bright Display: 1000–5000 nits luminance for sunlight readable performance
Standard 4:3 Aspect Ratio: Compatible with legacy systems and industrial equipment
Industrial-Grade Durability: Tested for extreme temperature, shock, and vibration
Low Power & Low Heat: Energy-efficient LED backlight with lightweight aluminum housing
Long Service Life: 50,000+ hours of reliable operation
Flexible Interface Options: LVDS, TTL, or HDMI available upon request
Customization Support: OEM/ODM for brightness, connectors, and housing
Our 17-inch high brightness LCD panels are widely adopted in industries where performance under direct sunlight is required:
Passenger Information Display Systems for railway, metro, and bus stations
EV Charging Stations and fuel dispensers
Outdoor Digital Signage and kiosks
Marine Navigation Systems
Industrial Control Terminals
Retail and Real Estate Signage
Example: One of our clients deployed this panel in EV charging kiosks across Australia. Despite intense summer sunlight, the display maintained clear visibility, ensuring smooth user interaction.
Expertise: Over 10 years of experience in high brightness and industrial LCD technology
Authoritativeness: Certified products meeting CE, RoHS, and strict industrial standards
Trustworthiness: Transparent supply chain, reliable after-sales service, and global clients across transportation, energy, and retail sectors
Customization: Engineering team capable of tailored solutions for OEM/ODM projects
⭐ ⭐ ⭐ ⭐ ⭐
“We installed RisingStar’s 17-inch high brightness LCD panels in our outdoor charging stations. Even under strong sunlight, the screens remain perfectly readable and reliable. A highly professional supplier.”
Q1: Is this LCD panel sunlight readable?
Yes. With brightness up to 5000 nits, the panel is designed for outdoor and high-glare environments.
Q2: Can the panel be customized with HDMI input?
Yes. HDMI and other interfaces are available upon request.
Q3: Do you provide samples for testing?
Yes, RisingStar offers samples for evaluation. Please contact our sales team for details.
Looking for a reliable 17-inch high brightness LCD panel supplier?
📩 Contact us today at sales@risinglcd.com to request a quote, sample, or customized solution.
| Item | Specification |
|---|---|
| Panel Size | 17.0 inches |
| Aspect Ratio | 4:3 |
| Resolution | 1280 (RGB) × 1024 (SXGA), 96 PPI |
| Display Area | 337.92 (W) × 270.336 (H) mm |
| Viewable Size | 341.6 (W) × 274.0 (H) mm |
| Brightness | 500 to 5000 nits (adjustable) |
| Contrast Ratio | 1000:1 (Typical, transmissive) |
| Viewing Angle (CR≥10) | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Response Time (Tr/Td) | 3.5 / 1.5 ms (Typical) |
| Display Mode | TN, Normally White, Transmissive |
| Surface Treatment | Anti-glare, Hard coating (3H) |
| Color Depth | 16.7M colors, 72% NTSC |
| Backlight Type | WLED, 50,000 hours lifespan, integrated LED driver |
| Weight | 1.30 kg (Typical) |
| Refresh Rate | 60Hz (default), optional 120Hz/240Hz with MEMC circuit |
| Touch Function | None |
| Signal Interface | LVDS (2 channel, 8-bit), 30-pin connector |
| Power Supply Voltage | 5.0V (Typical) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Application | Industrial displays, kiosks, marine, outdoor terminals, automation, et |
