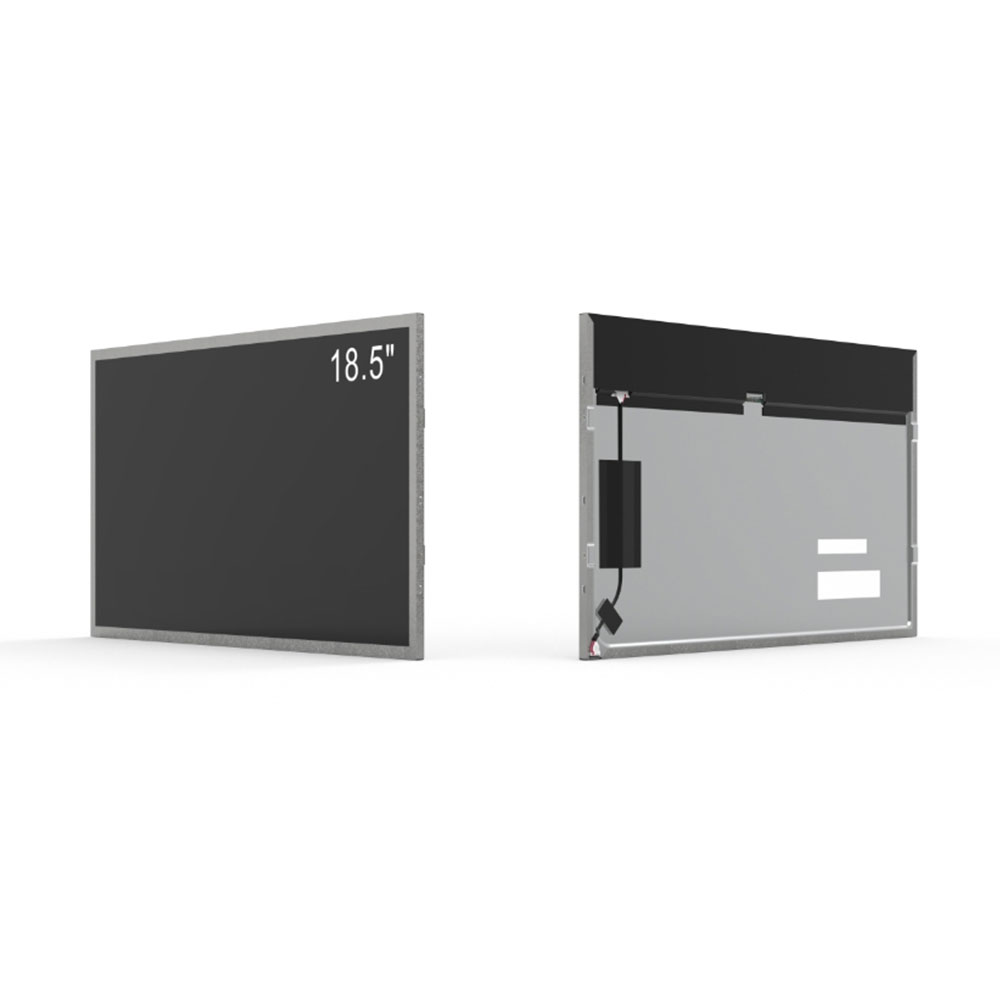

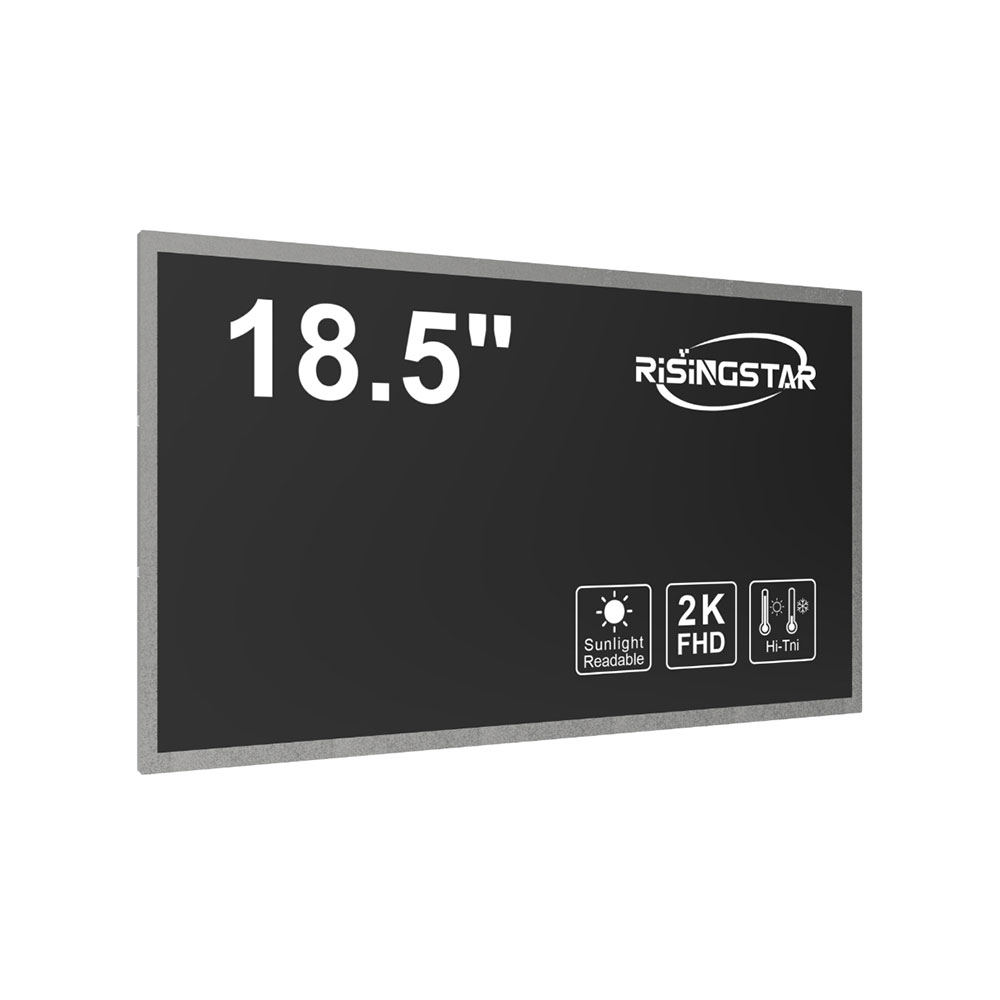

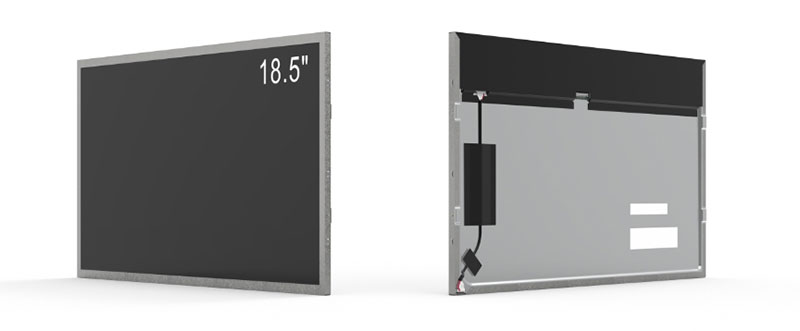

18.5 Inch High Brightness LCD Display Module Wholesale – Industrial Grade Full HD Panel
RisingStar’s 18.5-inch high brightness LCD display module offers outstanding visual performance for demanding industrial environments. Featuring a native resolution of 1920×1080 (FHD) and a pixel density of 119 PPI, this a-Si TFT-LCD module delivers crisp, vibrant images with 16.7 million colors and 70% NTSC color gamut. The display area measures 408.96(W) × 230.04(H) mm, with a wide viewing angle of 85/85/85/85 (CR≥10) enabled by ADS technology for full viewing angles and superior image stability.
Designed with industrial durability in mind, the module supports brightness levels from 500 to 5000 nits, ensuring sunlight readability and excellent contrast (1200:1) under bright ambient conditions. The matte surface with 25% haze and 3H hard coating reduces glare and enhances visibility. With a robust temperature tolerance (-30°C to 80°C), it is ideal for outdoor kiosks, factory automation, and transportation systems.
This LCD module integrates an 11S4P WLED backlight with LED driver, supports LVDS 2-channel 8-bit interface, and operates at 60Hz (with optional MEMC support for 120Hz or 240Hz applications). Touch functionality is not included, keeping the design clean and optimized for embedded display solutions. Typical power input is 5V, and the unit weighs approximately 1.80 kg.
Perfect for OEM integration, this high brightness 18.5-inch LCD panel is available for wholesale with customization options to meet specific project requirements.

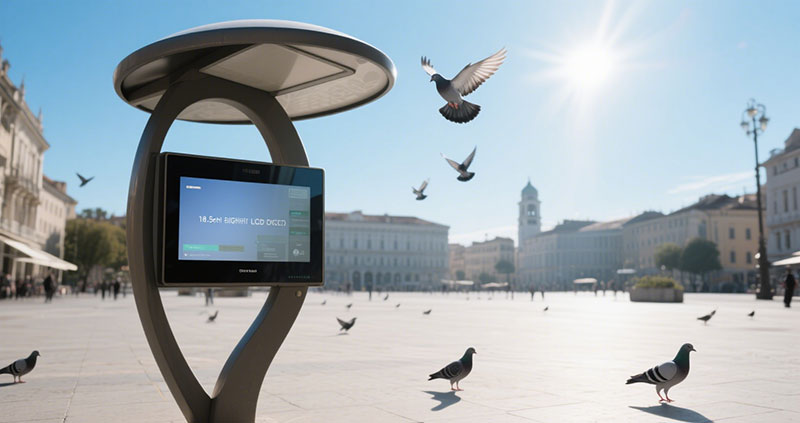

18.5-inch high brightness LCD module outdoor information kiosk application case
18.5 Inch High Brightness LCD Display Module – Industrial Grade Full HD Panel Specifications
Specification Table:
| Item | Details |
|---|---|
| Panel Size | 18.5 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080 (FHD), 119 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 408.96(W) × 230.04(H) mm |
| Viewable Size | 410.96(W) × 232.04(H) mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness | 500 nits to 5000 nits |
| Contrast Ratio | 1200:1 (Typical) [Transmissive] |
| Viewing Angle | 85/85/85/85 (L/R/U/D, CR≥10) |
| Optical Mode | ADS (Full Viewing Angle), Transmissive, Normally Black |
| Response Time | 30 ms (Typical, Tr+Td) |
| Color Depth | 16.7 Million Colors, 70% NTSC |
| Backlight Type | 11S4P WLED with Integrated LED Driver |
| Refresh Rate | 60Hz (Supports MEMC: 120Hz/240Hz via internal circuit) |
| Touch Function | None |
| Signal Interface | LVDS (2 Channel, 8-bit), 30 Pins |
| Power Supply | 5.0V (Typical) |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Weight | 1.80 kg (Typical) |
| Application | Industrial Display, O |
18.5 Inch High Brightness LCD Display Module – Industrial Grade Full HD Panel Specifications
Specification Table:
| Item | Details |
|---|---|
| Panel Size | 18.5 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080 (FHD), 119 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 408.96(W) × 230.04(H) mm |
| Viewable Size | 410.96(W) × 232.04(H) mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness | 500 nits to 5000 nits |
| Contrast Ratio | 1200:1 (Typical) [Transmissive] |
| Viewing Angle | 85/85/85/85 (L/R/U/D, CR≥10) |
| Optical Mode | ADS (Full Viewing Angle), Transmissive, Normally Black |
| Response Time | 30 ms (Typical, Tr+Td) |
| Color Depth | 16.7 Million Colors, 70% NTSC |
| Backlight Type | 11S4P WLED with Integrated LED Driver |
| Refresh Rate | 60Hz (Supports MEMC: 120Hz/240Hz via internal circuit) |
| Touch Function | None |
| Signal Interface | LVDS (2 Channel, 8-bit), 30 Pins |
| Power Supply | 5.0V (Typical) |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Weight | 1.80 kg (Typical) |
| Application | Industrial Display, O |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
