21.5 Inch High brightness Wall mounted display,22xe1j
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

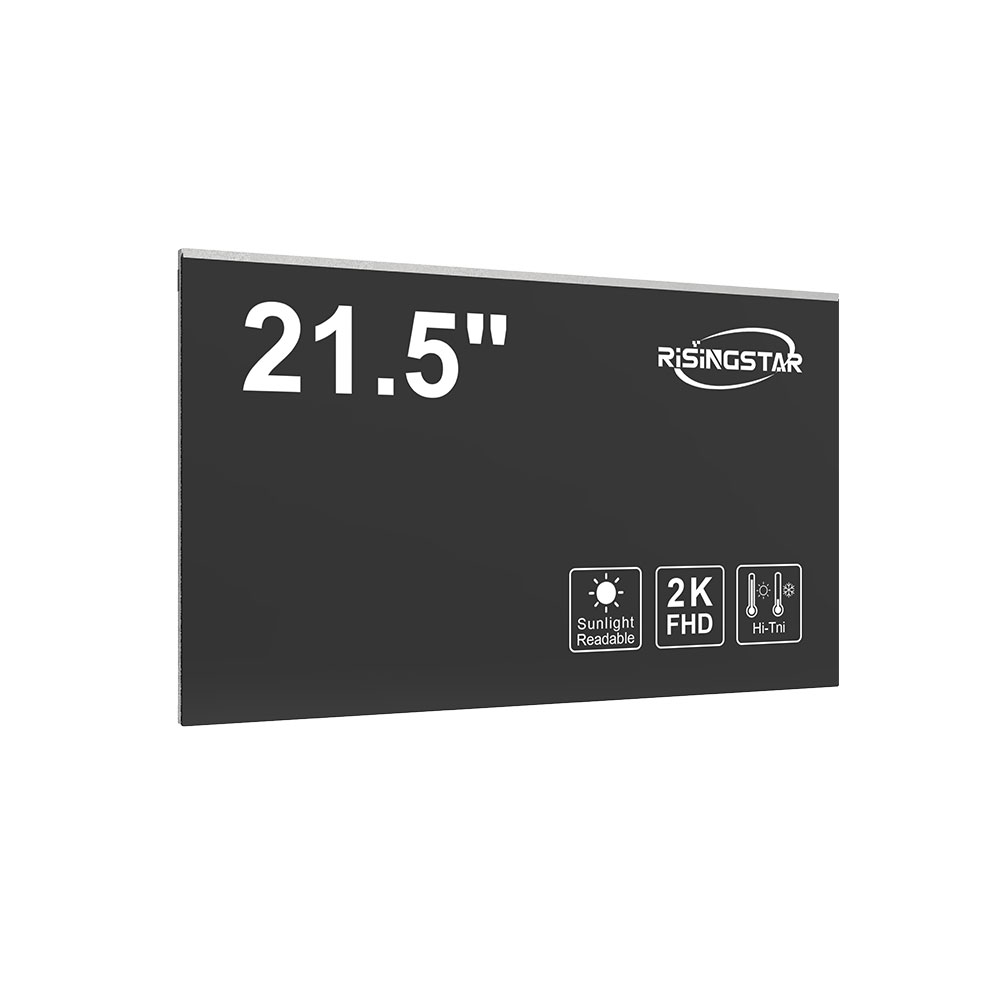

RisingStar 21.5 inch high brightness wall mounted display adopts LM215WF3-SLS1 a+ grade TFT screen and with RisingStar customized led backlight which increase the brightness to 1500nits and with the small and light size, it is flexible to use in various space.
21.5 Inch High brightness Wall mounted display Main features:
High brightness: 1500nits,
Screen Type: LCM a-Si TFT-LCD
Vertatile display size: 21.5 inch
Wide Viewing Angle (H x V) 178 x 178
Web Monitor control, Android or Window system is optional
Brightness: 1500nits (1000/1500/2000/2500nits optional)
Constrast: 1000:1
Auto brightness control
With Android system, and built-in Wifi
Installation: Wall mounted
Application: Advertising publish, retail store, shopping mall
Our 21.5 inch high brightness display with its slim bezel design, it will be more easily mount or install in any store windows for advsertising display to captivate customers attention with its vivid image quality and quiet operation,
And with the 1500nits brightness and wide view angle 178*178, our high brightness wall mounted display can boasts high visiblilty even in a bright environment, can develiry the information and let the contents are readable even to those wearing polarized sunglasses.
And screen brightness can automitically adjusts according to the surrounding light.
Our display is optional with android RK3288 board, 2+16G, Android 7.1 version, and built-in wifi, 4g(optional), feature with free contents management software, it supports to targets its display content to the final customers via lan network, it allows the users to monitor the unit, make any update and control it remotely in real time.
| Brand | RsingStar | Size | 21.5" |
| Pael Type | A-si TFT LCD | Panel Model | RS215XEJ-ND15 |
| Resolution | 1920*1080 | Brightness | 1500 nits |
| View Angle | 89/89/89/89 | Contrast Ratio | 1000:1 |
| Display Colors | 16.7M 72% NTSC | Pixel Format | RGB Vertical Stripe |
| Display Area | 476.064×267.786 | Display Mode | AMVA3, Normally Black |
| Backlight | White LED | Outline size | 497.6×292.2 |
| Surface | AG, 3H(Haze 25%) | Weight | TBD |
| Response Time | 25 ms | Refresh Rate | 60 Hz |
| Interface | LVDS, 30 pin | input voltage | 12.0 V |
| Operating | -20 ~ 70 °C | Storage | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
