High bright 18.5" outdoor LCD TFT display screen 1000nits
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Risingstar 18.5inch 1366*768 ,Brightness 500-2000nits outdoor high light LCD screen From china , LVDS,IPS, LCD display screen,The brightness can be customized.As one high resolution screen enterprises in China, We warmly welcome you to wholesale bulk cheap 15.6" 500-2000nits, High resolution screen made in China here and get quotation from our factory. All customized products are with high quality and competitive price.
Size | 18.5inch | ||
Panel type | a-Si TFT-LCD | ||
View area | 413.4(W)×234.0(H) mm(H*V) | ||
Dispaly area | 409.8(W)×230.4(H) mm(H*V) | ||
Outline size | 430.4(W)×254.6(H) ×11.4(D) mm | ||
Dispaly mode | IPS,Normally black,Transmissive | ||
Drive-screen Voltage | 5V (Typ) | ||
Resolution | 1366(RGB)×768 [WXGA] | ||
Display ratio | 16:9 | ||
Display brightness | 1000cd/m2 | ||
Constrast Ratio | 1000:1 | ||
View angle | 85/85/80/80 | ||
Display color | 16.7M , 72% NTSC | ||
Working freqyency | 60Hz | ||
Surface Treatment | Haze ,Hard coating(3H) | ||

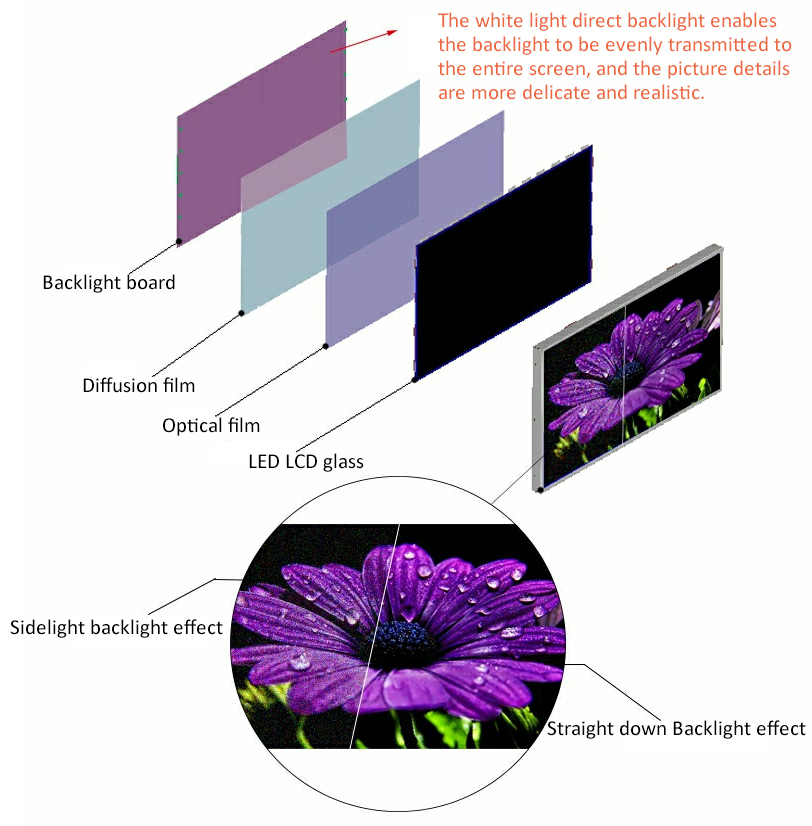

Light source type | WLED | ||
Backlight lifetime | up to 50,000 hoursrs |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
