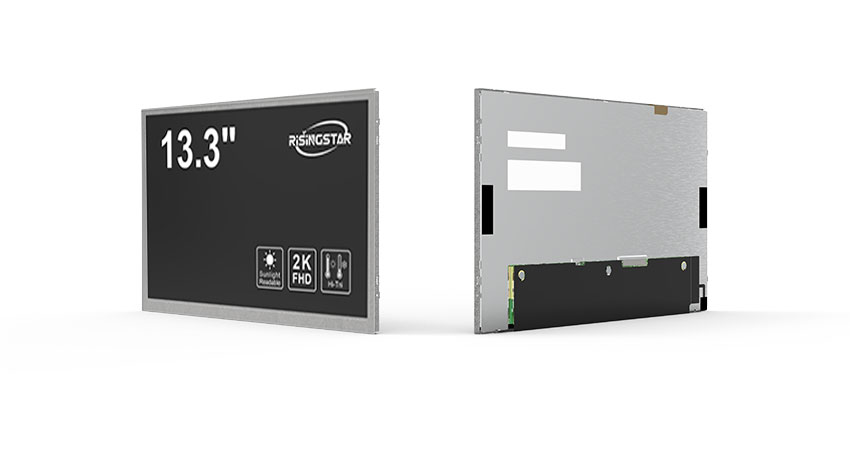

13.3" Industrial Ultra High Brightness TFT LCD Panel
13.3" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS133ENT-GE05 | 500 | 1920×1080 |
| RS133ENT-GE10 | 1000 | 1920×1080 |
| RS133ENT-GE15 | 1500 | 1920×1080 |
13.3-inch a-Si TFT-LCD Panel Specification
| Item | Specification |
|---|---|
| Panel Size | 13.3 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 × 1080 (FHD), 166 PPI, RGB vertical stripe |
| Active Area | 293.76 × 165.24 mm |
| Opening Area | 295.76 × 167.54 mm |
| Surface Treatment | Anti-glare (Haze), Hard Coating 3H |
| Brightness | 500 ~ 1500 nits |
| Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
| Recommended Viewing Angle | Full angle |
| Response Time | 30 ms (Typ., Tr+Td) |
| Viewing Angle | 85/85/85/85° (Typ., CR≥10) L/R/U/D |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 16.7M, 100% sRGB |
| Backlight Type | WLED, 15,000 hours, including LED driver |
| Appearance | Thin screen (PCBA bending, thickness ≤ 3.0 mm) |
| Application Product | Notebook, Industrial |
| Refresh Rate | 60 Hz standard; optional MEMC: 120Hz (60Hz input), 120Hz+120Hz panel+backlight, 240Hz (60Hz input) |
| Interface | 30 pins eDP (2 lanes), eDP 1.4a, HBR1 (2.7 Gbps/lane), Terminal |
| Supply Voltage | 3.3 V (Typ.) |
| Operating Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -20 ~ 70 °C |
Notes and Application
Panel Technology: This is an IPS hard-screen panel providing wide viewing angles and stable color reproduction, suitable for high-quality visual applications. IPS types include AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich.
Performance: With high brightness (up to 1500 nits) and wide contrast, this panel is ideal for outdoor-readable or bright industrial environments. The anti-glare surface and hard coating ensure durability and reduced reflection.
Applications: Commonly used in notebooks, industrial control displays, and other embedded systems where high visibility, wide color gamut, and compact form factor are required. Its thin profile allows integration into slim devices or customized industrial panels.
Advanced Refresh: Supports MEMC or high-refresh scenarios for smoother motion in video playback or dynamic industrial visualization.
