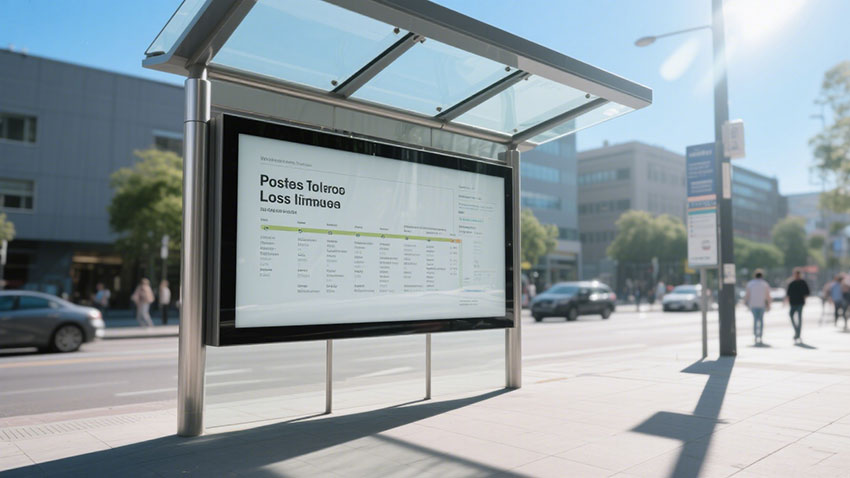

75" Industrial Ultra High Brightness Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
75" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS750ENT-GD20 | 2000 | 3840×2160 |
| RS750ENT-GD25 | 2500 | 3840×2160 |
| RS750ENT-GD30 | 3000 | 3840×2160 |
| RS750ENT-GD35 | 3500 | 3840×2160 |
| RS750ENT-GD40 | 4000 | 3840×2160 |
| RS750ENT-GD45 | 4500 | 3840×2160 |
| RS750ENT-GD50 | 5000 | 3840×2160 |
Specification
| Parameter | Specification |
|---|---|
| Panel Size | 75.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 59 PPI |
| Pixel Layout | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| Visible Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-Glare (Haze 3%), Hard Coating 2H |
| Brightness | 2000~5000 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Viewing Angle | 89°/89°/89°/89° (Min.) Left/Right/Up/Down (CR≥10) |
| Optimal Angle | Full View, IPS, Normally Black, Transmissive |
| Optical Mode | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ.) G to G |
| Color | 1.07B, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED Driver |
| Weight | 27.6 / 30.5 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz input) with MEMC 120Hz+120Hz: 120Hz Panel + 120Hz Backlight 240Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
| Typical Applications | Digital Signage, Outdoor High Brightness Display, Commercial Display, Advertising Panels, Interactive Kiosk, Information Boards |
Explanation & Applications
Description:
This 75-inch a-Si TFT-LCD module features UHD resolution (3840×2160) with a 59 PPI RGBW vertical stripe layout. The panel offers ultra-high brightness up to 5000 cd/m², making it ideal for sunlight-readable applications. It adopts an IPS optical mode, providing full viewing angles (89°/89°/89°/89°) and excellent color reproduction (1.07B colors, 69% NTSC). The WLED backlight supports up to 50,000 hours of operation with integrated LED drivers. Its robust anti-glare surface (Haze 3%, Hard Coating 2H) ensures durability in commercial and outdoor environments.
Applications:
Digital Signage: Outdoor and indoor high-brightness displays in shopping malls, airports, and train stations.
Advertising Panels: Ultra-visible panels under direct sunlight for promotions and campaigns.
Interactive Kiosks & Info Boards: High-performance display for transport hubs or EV charging stations.
Commercial Displays: Conference rooms, retail showrooms, or large-screen visualization setups.
| Parameter | Specification |
|---|---|
| Panel Size | 75.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 59 PPI |
| Pixel Layout | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| Visible Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-Glare (Haze 3%), Hard Coating 2H |
| Brightness | 2000~5000 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Viewing Angle | 89°/89°/89°/89° (Min.) Left/Right/Up/Down (CR≥10) |
| Optimal Angle | Full View, IPS, Normally Black, Transmissive |
| Optical Mode | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ.) G to G |
| Color | 1.07B, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED Driver |
| Weight | 27.6 / 30.5 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz input) with MEMC 120Hz+120Hz: 120Hz Panel + 120Hz Backlight 240Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
| Typical Applications | Digital Signage, Outdoor High Brightness Display, Commercial Display, Advertising Panels, Interactive Kiosk, Information Boards |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
