How Local Dimming Solves High Energy Costs for Outdoor Displays

From real-time traffic screens on highways to electronic timetables at bus stops, outdoor displays have become the neural endings of modern urban infrastructure. However, they face the harshest conditions: the midday sun makes images vanish in glare, rain and dust corrode internal structures, and extreme seasonal temperature shifts accelerate component degradation—not to mention the massive energy burden of 24/7 operation.

The traditional approach for high-brightness displays is "force against force": driving higher currents to gain visibility under sunlight, at the cost of staggering power consumption and rapid lifespan decay. It's like keeping an entire office building lit all night just to illuminate a few rooms where people are working late.

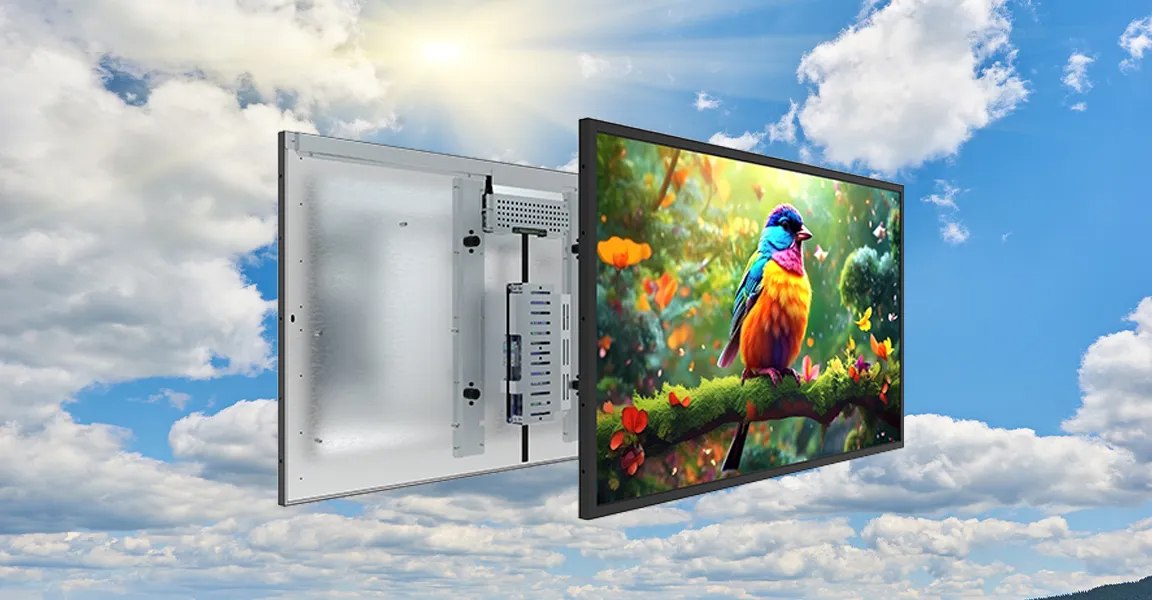

RisingStar's high-brightness solutions have long mastered perfect visibility under direct sunlight. Our products cut through glare with peak brightness up to 5000 nits. Built with an IP66 rainproof structure and a wide operating temperature range of -30°C to 70°C, they remain extremely stable in the most hostile environments. Furthermore, we have integrated local dimming technology. On top of traditional outdoor requirements for high brightness, protection, and wide temperature durability, this adds advanced energy-saving capabilities—reducing power consumption by up to 50%. Combined with anti-reflective coatings and optical bonding, we ensure vivid, reliable visuals and stable, energy-efficient operation in any environment.

The Principle of Local Dimming: From Full-Backlight Lighting to On-Demand Illumination

Imagine a traditional lighting system in an office building: if someone is in any room, the lights for the entire floor must stay on. A smart system, however, only lights the specific areas in use. Local dimming brings this same leap in intelligence to display backlight systems.

In traditional LCDs, whether the screen shows a brilliant starry sky or deep black scenes, the entire LED backlight panel operates at a constant brightness. This results in dark scenes appearing "dark gray" with limited contrast, wasting significant energy.

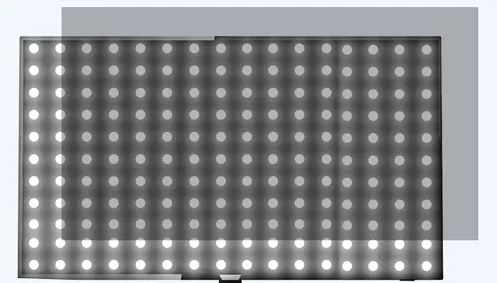

Local dimming completely changes this paradigm. Its hardware foundation is Mini-LED technology: hundreds or thousands of microscopic LEDs (less than 200 μm) mini-LED arranged precisely behind the panel. These are divided into hundreds or thousands of independent "dimming zones." A core intelligent algorithm acts as an efficient lighting director, analyzing every frame in real-time to calculate the ideal brightness for each zone. Bright areas trigger high output, while pure black or dark areas see their LEDs dimmed or turned off entirely.

This is not simple on/off switching; it is optimization based on complex mathematical models. Advanced algorithms translate dimming into linear programming models to ensure the backlight distribution perfectly matches the target image. This eliminates "halo" interference between zones while achieving extreme contrast ratios, such as 1,000,000:1. The process is seamless and real-time—users see only purer blacks, sharper highlights, and unprecedented depth. Essentially, it injects intelligence into every beam of light, achieving true "on-demand illumination."

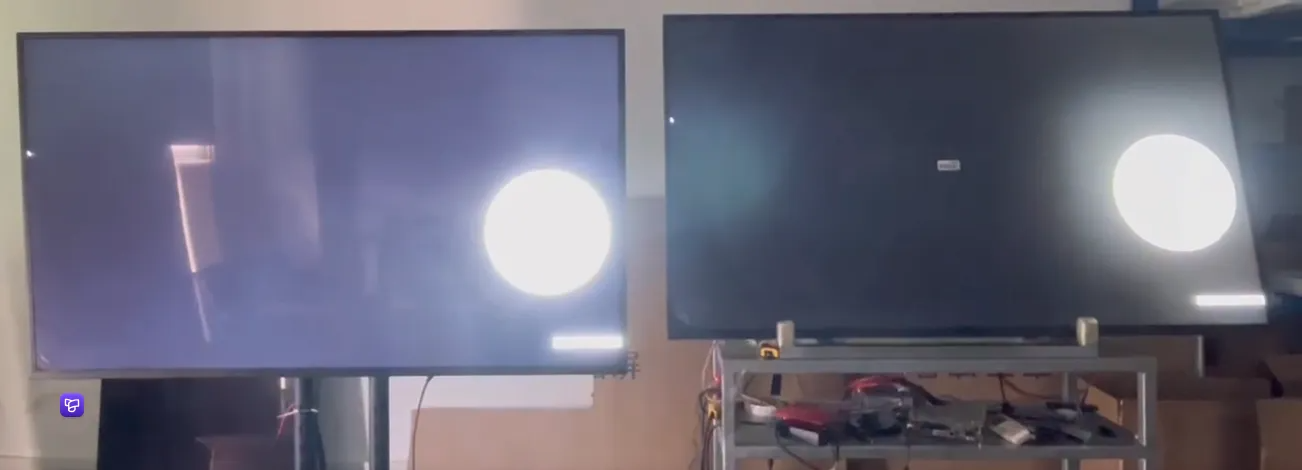

RisingStar Local Dimming Test Video

Click the below link to watch our local dimming test video:

https://www.risingstarlcd.com/index.php?c=show&id=884

RisingStar Technology Portfolio: Fusing Hardcore Protection with Smart Efficiency

The superior efficiency of local dimming is not built on thin air; it must stand on a stable, reliable hardware platform. This is the power of the RisingStar "Hardware Strength + Software Intelligence" combination.

1. Rock-Solid Hardware Foundation

Survival is the first priority for outdoor displays. RisingStar's core parameters define the limits of endurance:

• High Brightness (1000–5000 nits): Ample light output to ensure clarity under any intense light.

• Wide Temperature Range (-30°C ~ 70°C): Consistent performance from frozen northern winters to scorching summer roads.

• IP66 Protection: Total protection against dust ingress and resistance to powerful water jets from any direction.

• Explosion-proof Design: Safety assurance for hazardous environments like gas stations and chemical plants.

2. Display Uniformity and Mura Control

Visual texture depends on purity and consistency. RisingStar eliminates "Mura" defects through global management and precision correction:

• Supply Chain Control: We insist on Grade A+ panels and top-tier LED chips with Hi-Tni high-temperature resistance.

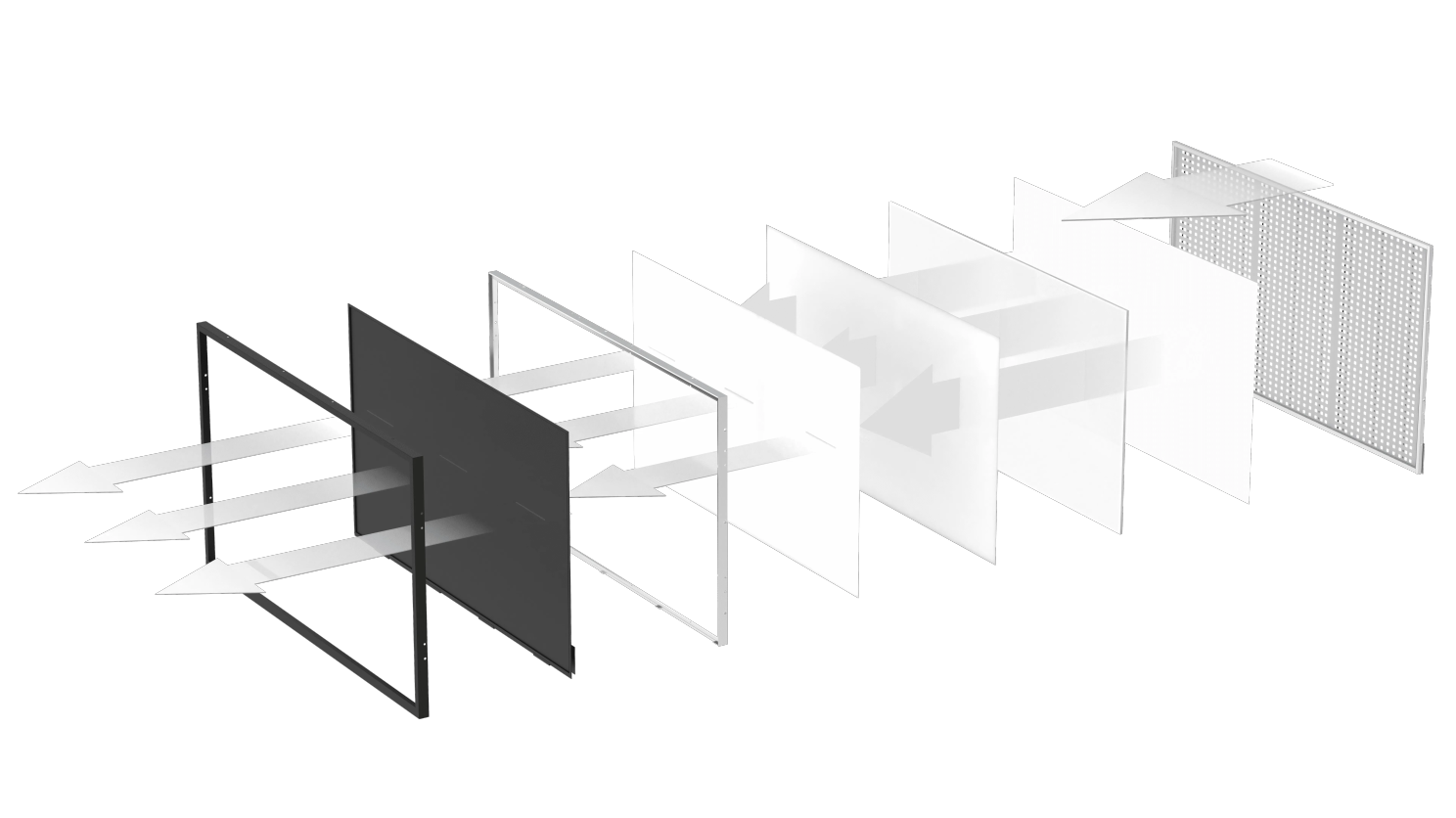

• Optical Optimization: Patented local dimming algorithms work with dual-layer precision diffusers to suppress blooming. A unique porous heat dissipation structure ensures a uniform temperature field for high-density LEDs.

• Demura Calibration: Using machine-vision AI, we perform pixel-level scans of every panel and apply compensation algorithms to ensure every delivered screen features flawless image quality.

3. Forward-Looking Thermal Technology

High-brightness mini-LEDs generate significant heat. RisingStar utilizes advanced lightweight aluminum alloy structures and energy-efficient driver schemes to keep core components within the optimal temperature range. This provides the thermal stability for local dimming; the system doesn't need to compromise or throttle due to overheating, allowing for maximum sustained energy savings.

4. Intelligent Integration

When Local Dimming runs on this "cool" and sturdy platform, energy savings are maximized. Efficient heat dissipation maintains high electro-optical conversion rates, while wide temperature adaptability ensures algorithms execute precisely in extreme cold or heat. Hardware stability is the stage upon which software intelligence performs.

Transportation Applications: Energy-Saving Pioneers on Smart Roads

In 24-hour transportation networks, power consumption adds up quickly. The combination of local dimming and smart sensing is reshaping this energy "high ground."

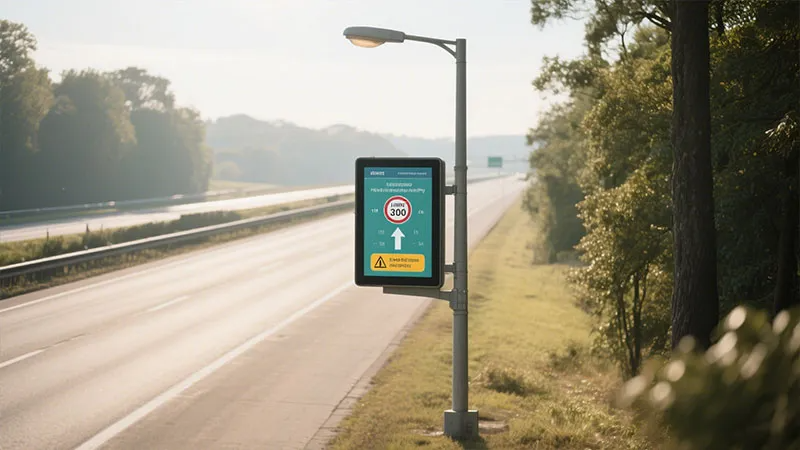

• Highway Information Screens: Keeping screens at full brightness during late nights or low traffic is inefficient. RisingStar systems shift to on-demand lighting, ensuring stability and power savings through rainproof, explosion-proof, and wide-temperature Local dimming designs.

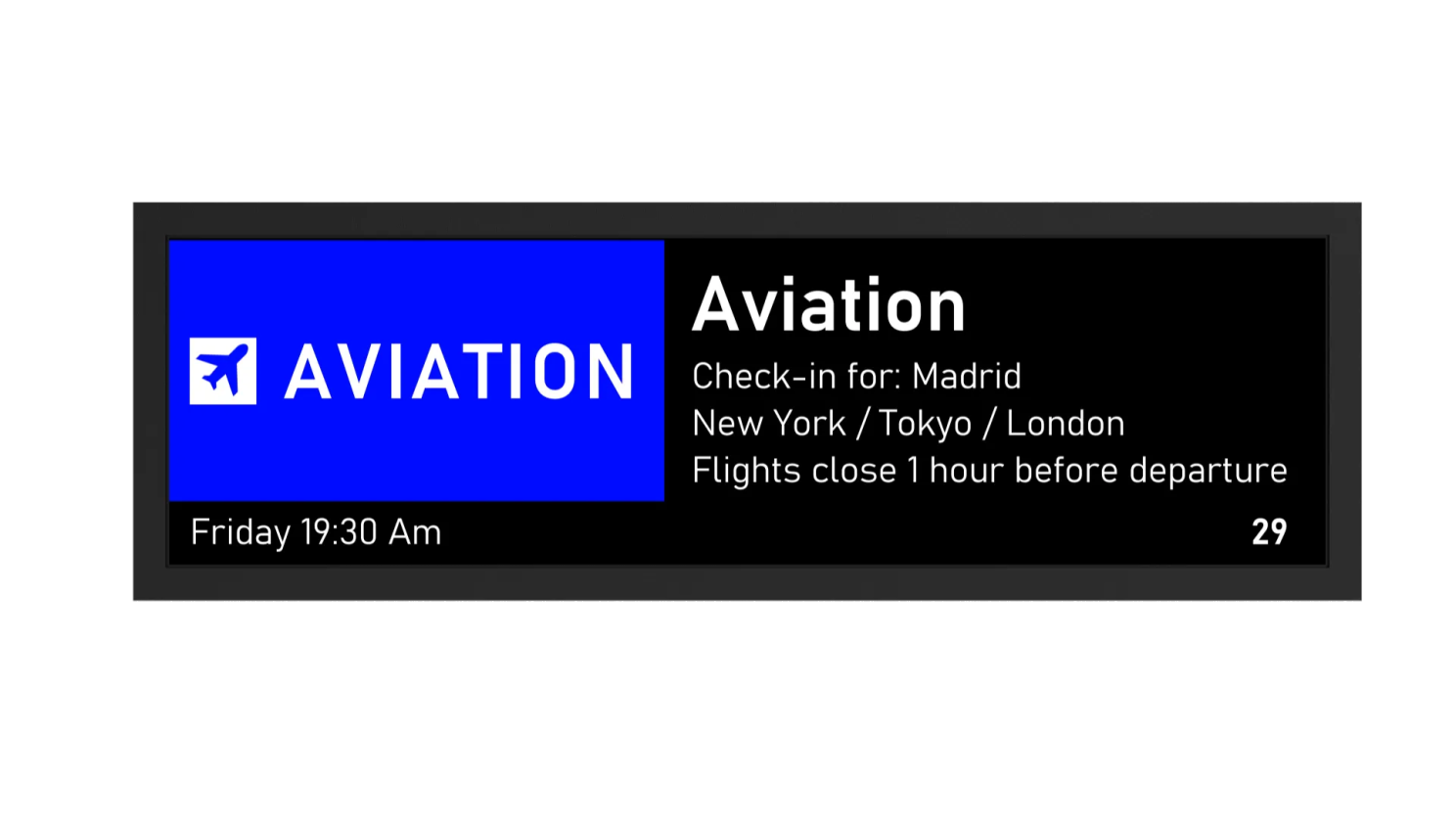

• Transit Hubs (Subway, High-Speed Rail, Airports): Information screens must be continuous. Traditional solutions run the whole backlight at full power even for simple white text on black backgrounds. RisingStar screens adapt: only the text zones are lit. When a full-screen video ad plays, the system instantly triggers full-domain brightness. This "content-based dimming" satisfies both commercial value and passenger experience while managing dynamic energy.

• Bus Shelter Displays: A perfect partner for green energy. As more shelters adopt solar power, RisingStar's local dimming displays become the ideal load for off-grid systems. Smart energy saving maximizes limited solar power, extending battery life and ensuring basic info display even on rainy days.

Economic Benefits: Every Cent Saved is Visible

Investing in RisingStar displays driven by local dimming technology yields a long-term list of economic returns:

• Immediate Electricity Savings: A traditional 55-inch outdoor high-bright screen can consume over 3000 kWh annually. With local dimming, average savings range from 20% to 40%. For a large-scale network, annual savings can reach hundreds of thousands or even millions of dollars.

• Extended Lifespan: Heat is the primary killer of electronics. By reducing unnecessary backlighting, local dimming lowers the overall thermal load. This keeps LEDs and driver ICs "cooler," extending the equipment lifecycle by 30% or more and lowering annual depreciation costs.

• Reduced Maintenance: Efficient thermal design reduces reliance on forced air cooling (fans). This eliminates a common point of failure and noise source, making the system quieter and more reliable.

A Powerful Technology Platform: From Core Capability to Scenario Customization

RisingStar's core advantage lies in providing a highly autonomous, deeply extensible display technology platform rather than isolated products. Centered on high-zone local dimming direct-lit backlighting, combined with innovative thermal management and low-power algorithms, we offer a complete tech stack covering hardware, drivers, and intelligent control.

Our platform supports extreme flexibility. From physical forms and sizes (for tunnels, overpasses, or platforms) to customized brightness curves and power modes (AC or solar), we provide integrated software and hardware solutions. Whether it is a Variable Message Sign (VMS) requiring all-weather reliability or an energy-efficient bus arrival forecast screen, RisingStar ensures that technical advantages translate into real-world value.
