Sunlight readable outdoor waterproof lcd monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

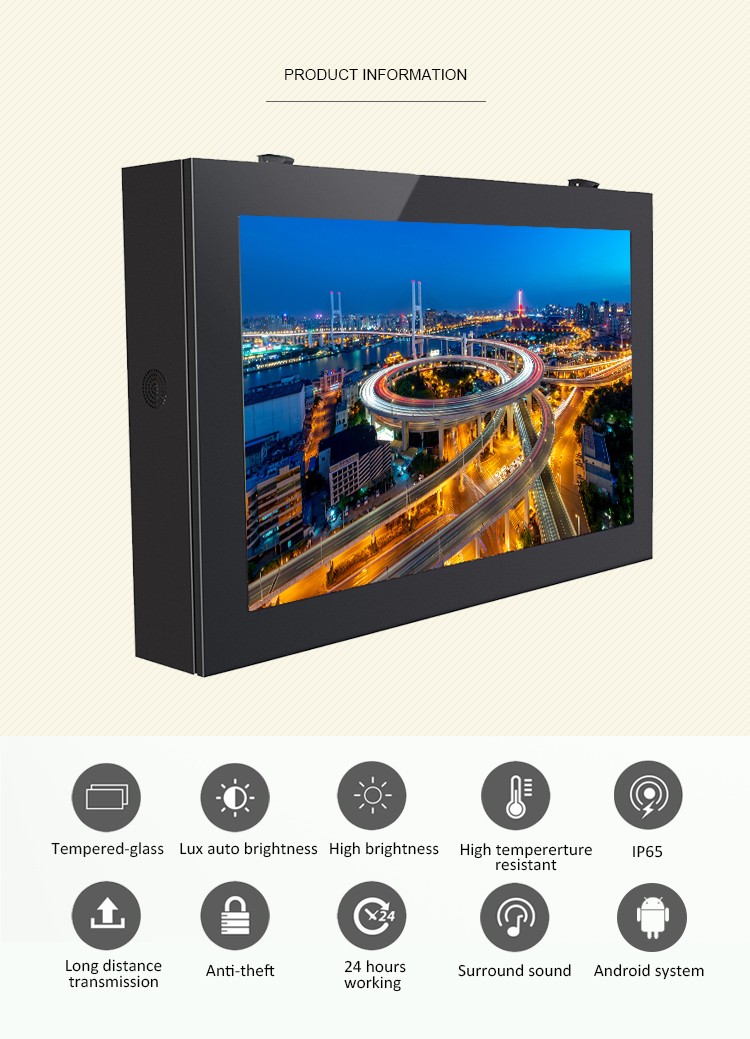

55/65 inch industrial 4k capacitive touch screen monitor sunlight readable outdoor waterproof lcd monitor
Panel size | 55"(16:9) | |
Native Resolution | 1920*1080 | |
Brightness (cd/m²) | 2000 cd/m2 | |
Contrast ratio | 5000:1 | |
View angle | 89°/89°/89°/89° (R/L/U/D) | |
Touch panel | ||
Touchscreen Type | Projected capacitive touch | |
Touch Interface | USB | |
Signal Ports | ||
VGA | 1×VGA | |
USB | 1xUSB for touch | |
HDMI | 1xHDMI | |
DVI | 1XDVI | |
OSD | ||
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. | |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect | |
Power Supply | ||
External Power Supply | AC 100 - 240V | |
Working voltage | DC 12V | |
Power consumption | ≤40W | |
Operating Environment | ||
Operating Temperature | -20 ~ 70 °C | |
Relative humidity | operating: 10% to 90% , storage :5% to 90% | |
Packing Details | ||
Accessories | Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional | |
Others | ||
Certification | ROHS | |
Warranty | 1 year warranty |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
