OM46B samsung 46 inch window facing LCD display with 4000 nits high brightness
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
OM46B samsung 46 inch window facing LCD display with 4000 nits high brightness

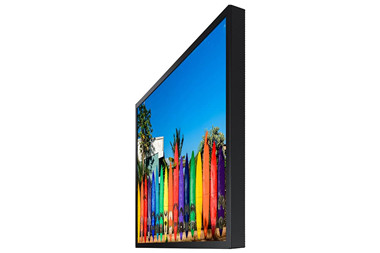

Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.
OM46B specification
Exceptional visibility with bright and flawless window signage.
Vivid and visible even in direct sunlight in FHD resolution
High brightness window displays that deliver flawless colors with 4,000nit
Slim design that complements the surroundings of any environment
Robust durability with IP5X-validated dust protection and functionality that mitigates overheating
High brightness semi-outdoor/slim and clean back design, and support landscape or portrait orientation.
Special features, polarized sun glasses veieable in any direction, auto brightness control with ambient brightness sensor, temperature sensor clock battery, auto source switching and recovery RJ45 MDC WiFi module embedded.
| Item No | OM46B |
| Panel Brand | samsung display |
| Diagonal Size | 46" |
| Type | VA |
| Panel No | LH46OMBEBGBXZA |
| Pixel Pitch(mm) | 0.53*0.53 |
| Resolution: | 1920*1080 (Full HD) |
| Brightness(Typ.) | 4000 nits |
| Active Display Area(mm) | 1018.08(H) x 572.67(V) |
| Dispay Mode | IPS |
| Aspect Ratio: | 16:9 |
| Contrast Ratio | 6000:1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Color Gamut | 72% |
| Operation Hour | 24/7 |
| Haze | 0% |
| Power Supply | AC 100-240V, 50/60Hz |
| Power consumption Max(W/h) | 350 |
| Operating Temperature | -20 ~ 70 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
