55 inch 4000 Nits Ultra Slim Bezel Window Facing Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Global Industry Leader in High Brightness Window Facing LCD Display

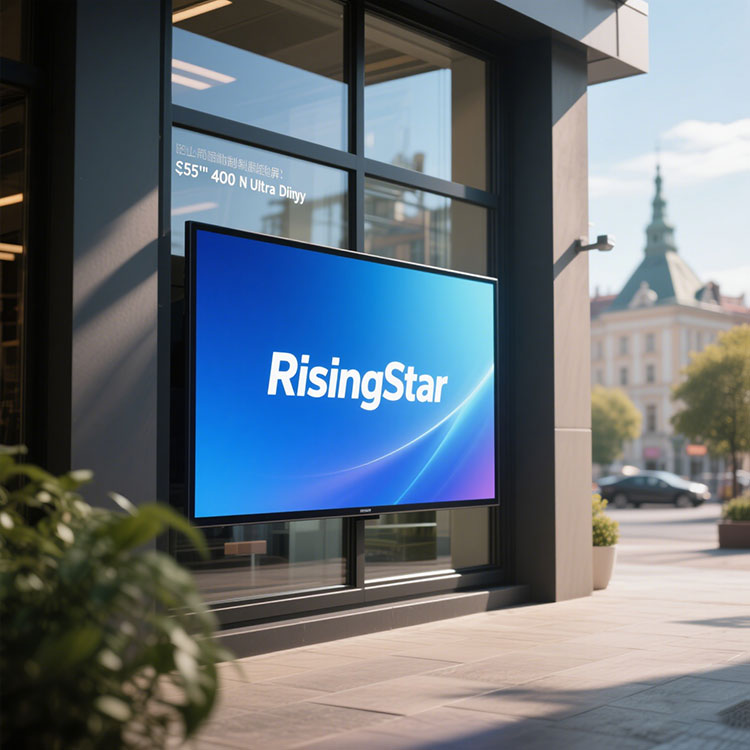

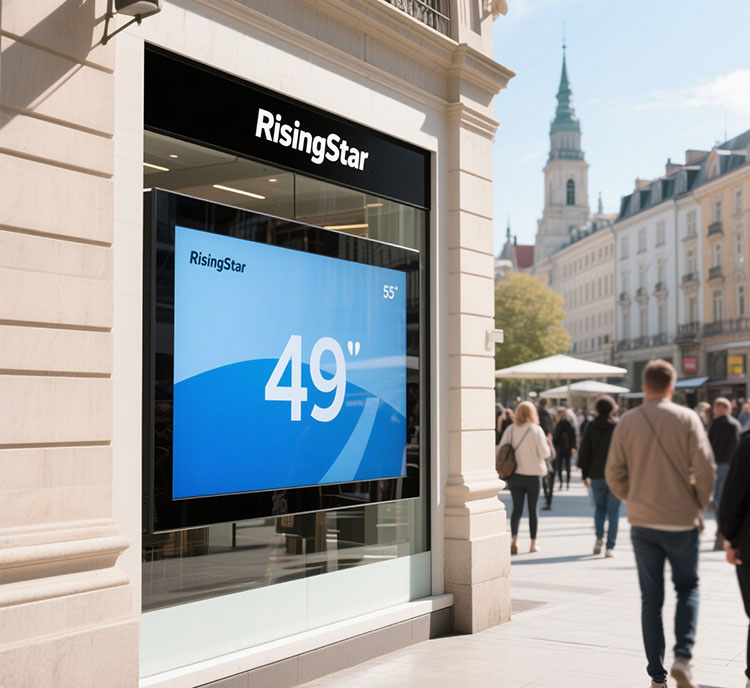

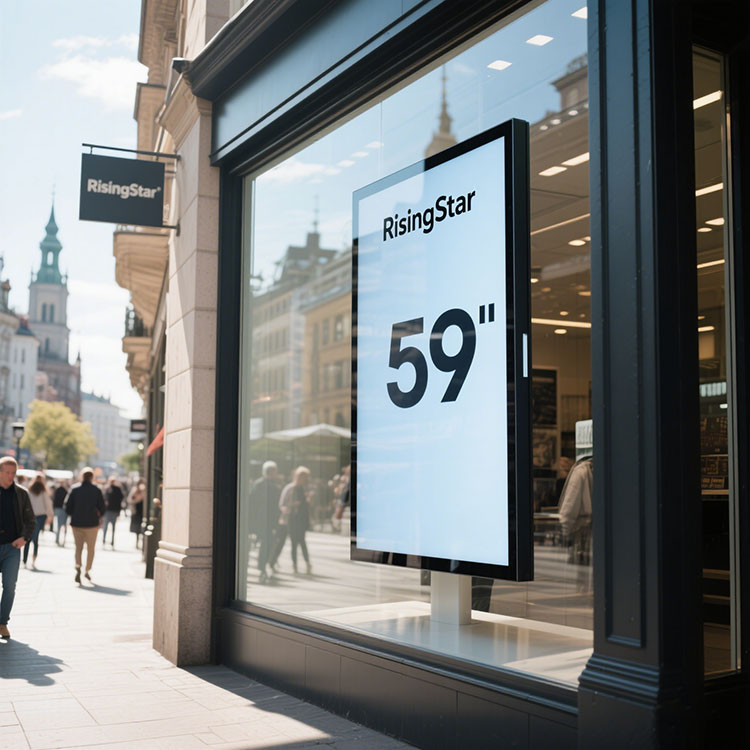

55 inch 4000 Nits Ultra Slim Bezel Window Facing Display – Sunlight-Proof Clarity for Storefronts,
Outdoor Signage & High-Traffic Zones. IP65 Weatherproof, Anti-Glare Glass, and 35% Energy Savings. 4mm Ultra-Thin Frame Seamlessly Blends with Windows. Custom Mounting Kits + Instant Quotes. Factory Direct Pricing – ISO-Certified, 3-Year Warranty.
Sunlight-Proof Clarity for Storefronts, Outdoor Signage & High-Traffic Zones.

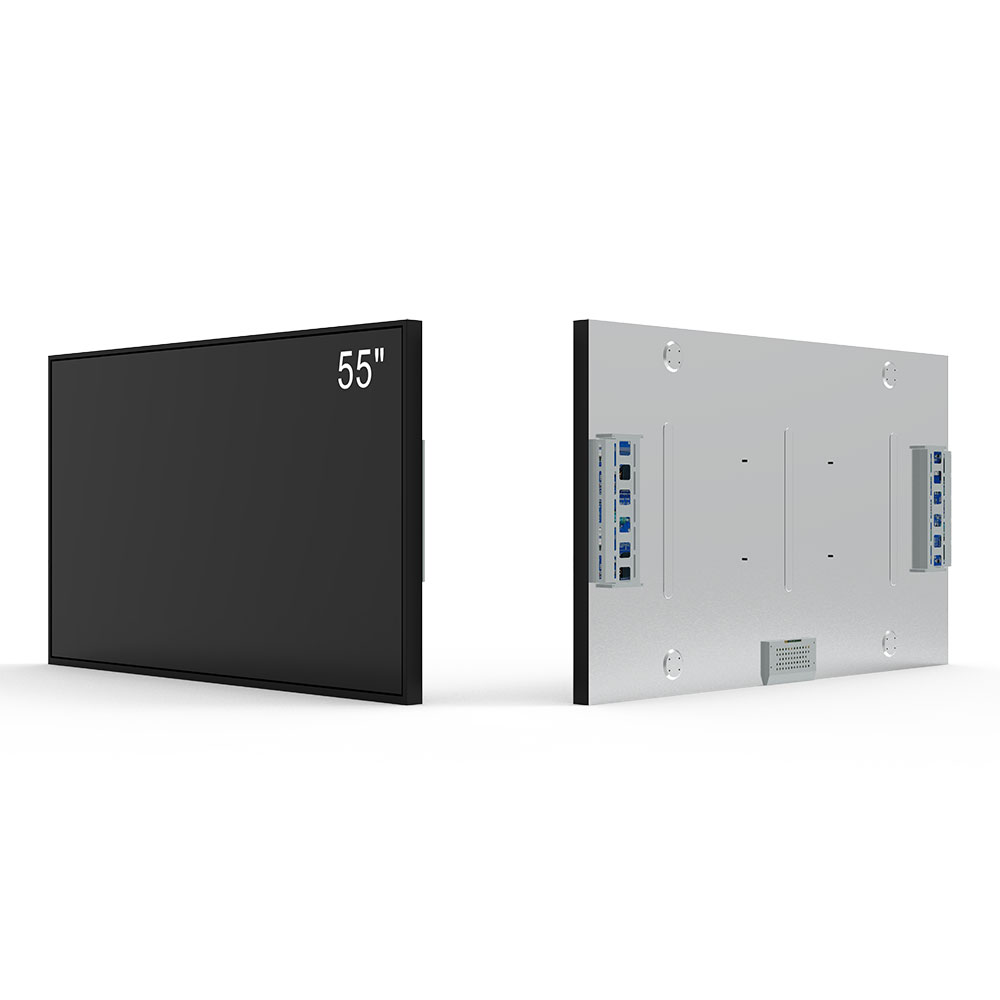

"RS550MNX02D01 55-inch Window Facing Display by Risingstar — Flagship model with IP65 weatherproofing, anti-glare tempered glass, and 35% energy-saving backlight. Featuring an ultra-slim 4mm bezel and signature Risingstar design DNA: high-brightness performance (3,500 nits) meets minimalist industrial aesthetics. Supports versatile floor-standing or ceiling-hanging installations. Ideal for retail stores, airports, and outdoor digital signage applications."
Why Choose the 55-inch 4000nits Ultra-Slim Bezel Window-Facing Display
1. Engineered for Extreme Environments
Sunlight-Dominated Spaces: 4000nits peak brightness (30% higher than industry standards17) ensures crystal clarity in direct sunlight, ideal for storefronts, outdoor signage, and high-traffic zones.
IP66 Weatherproofing + Anti-Glare Tempered Glass: Resists rain, dust, and glare interference for 24/7 reliability in harsh conditions.
2. Competitive Edge Over Rivals

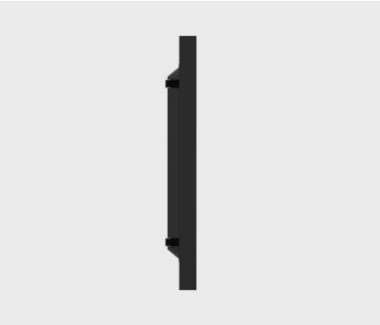

4mm Ultra-Thin Bezel: Thinnest in its class (vs. Samsung/LG commercial displays at 8mm35), enabling seamless integration with architectural windows.
35% Energy Savings: Smart adaptive dimming cuts annual power consumption by 2000kW·h vs. traditional LED systems (TÜV-certified16).
3. Built to Last, Backed by Trust
Factory Direct Pricing: Eliminates middlemen markups, with full OEM/ODM customization (size, ports, branding, etc.).
Dual Certifications (ISO 9001 & RoHS) + 5-Year Core Warranty: Proven reliability across 50+ global airports and retail chains.
Top grade LCD panel
Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
From 500 to 4000+ nits, customize display brightness for any environment – dimly lit interiors, high-traffic retail zones, or sun-drenched outdoor spaces.
Model number | RS215MNX01D01 | RS320MNX01D01 | RS430MNX01D01 | RS550MNX02D01 | RS650MNX01D01 |
Brightness (cd/m2) | 1000 | 1500 | 2000 | 4000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 230 | 350 | 300 | ||
Operating temperature | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C |

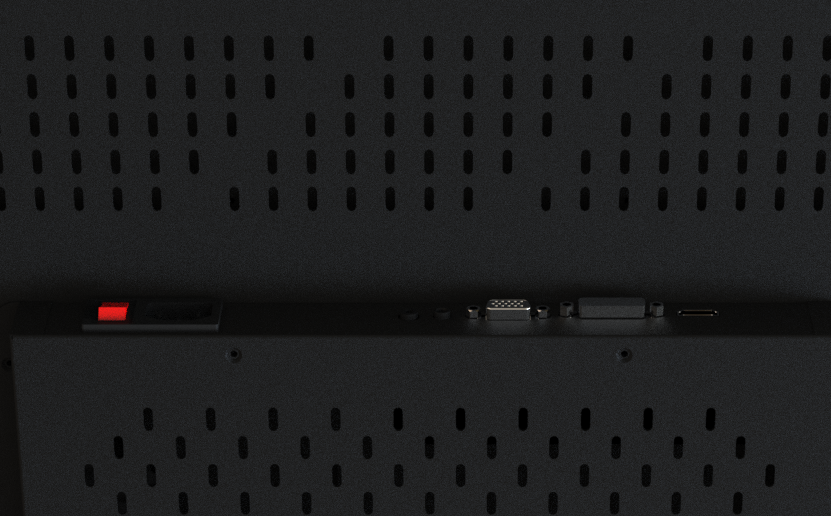

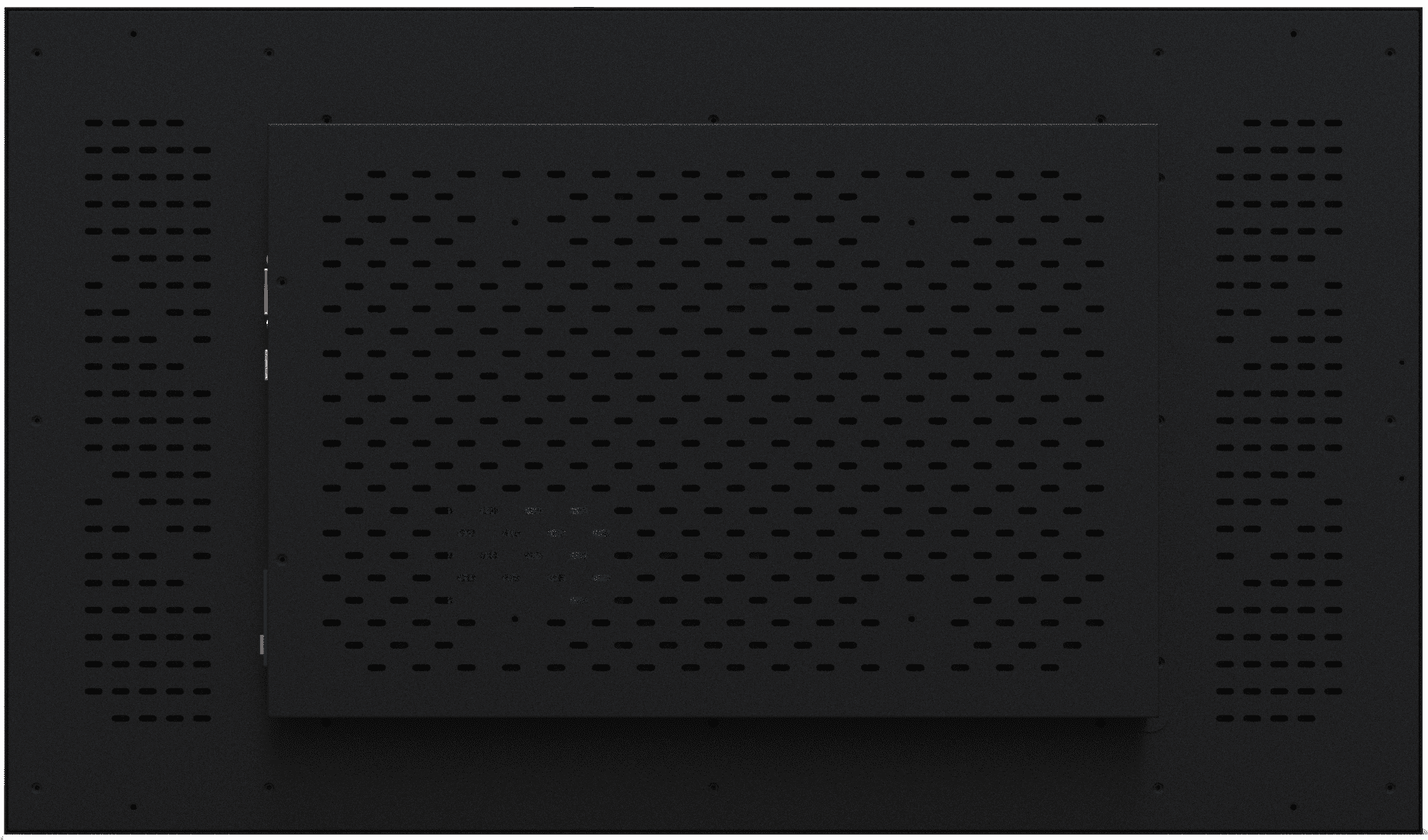

Rugged and unique housing: This display has unqiue outershell, it has over 100 holes on the housing to make the air pass through easier, the fans inside will pump them in/out to form a circulation, the heat will follow the circulation and the display can keep working under scorching sunlight.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

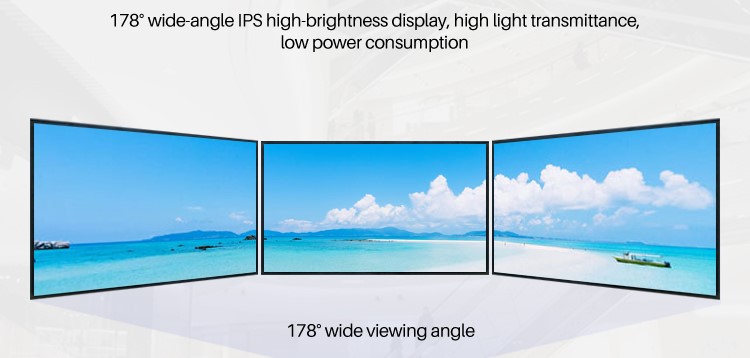

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

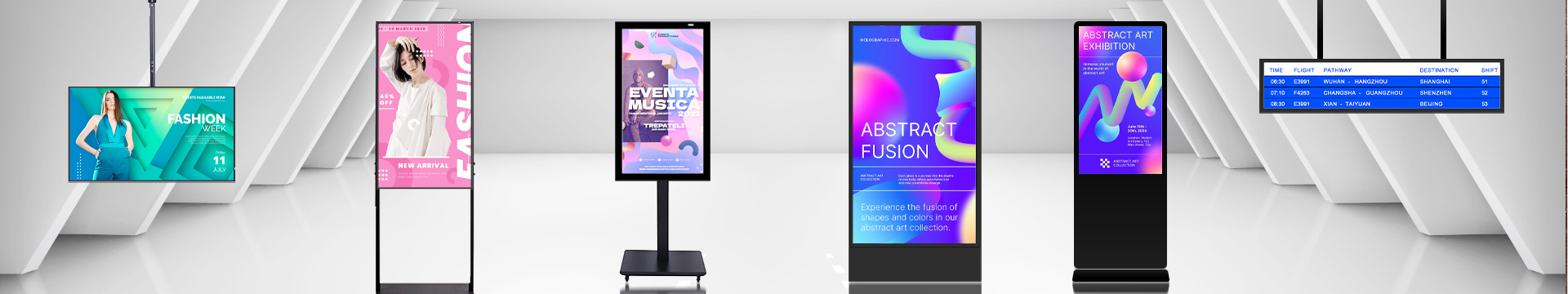

Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
window facing display series:
RS320HNX02D05, outdoor no fans and A/C self dissipition monitor, save the consumption also muted design...
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
| 55 inch window facing display 4000 nits with ultra slim bezel | |
| Screen Size | 55" |
| Display Area (mm) | 1209.6(H) x 680.4(V) |
| Brightness | 4000 cd/m |
| Resolution | 3840x2160 |
| Aspect Ratio | 16:09 |
| Contrast Ratio | 1300:1 |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M |
| Response Time (Typical) | 6 (Typ.)(Tr/Td) (ms) |
| Display Colors | 16.7M |
| OS | Android 7.1.2 |
| CPU | T972 |
| Memory | 2G/4G |
| Internal Memory | 16G/32G/64G |
| Input Interface | SD*1 EARPHONE OUT*1, LAN*1 USB*2 HDMI IN*1 AC IN*1 |
| OSD Key | IR Remote Control |
| Input Power | AC 200-240v |
| Power Consumption | 350W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 1235 x 705.8 x 80.5mm |
| Mounting | 400x400mm Screws metric M8 |
| Weight (Net) | 29kgs |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| The information described in this specification is preliminary and can be changed without prior notice. | |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
