High brightness 55 inch TFT LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Risingstar high brightness LCD panels offer exceptional visibility and optimal performance, making them the perfect choice for outdoor advertising and information display. With a customized brightness of 3000nits, these panels are easily readable even in bright sunlight, providing an unparalleled viewing experience. Choose Risingstar for your outdoor display needs and enjoy the brilliance of high-performance technology.
55 inch high brightness LCD panel Main Features
· 24/7 Commercial Grade LG open cell
· High brightness 3000cd/m2 IPS Panel
· 1920*1080 FHD resolution
· Wide viewing angel 89/89/89/89 (Typ.)(CR≥10)
· 1000:1 contrast ratio
· Low Power Consumption
· Lightweight Design

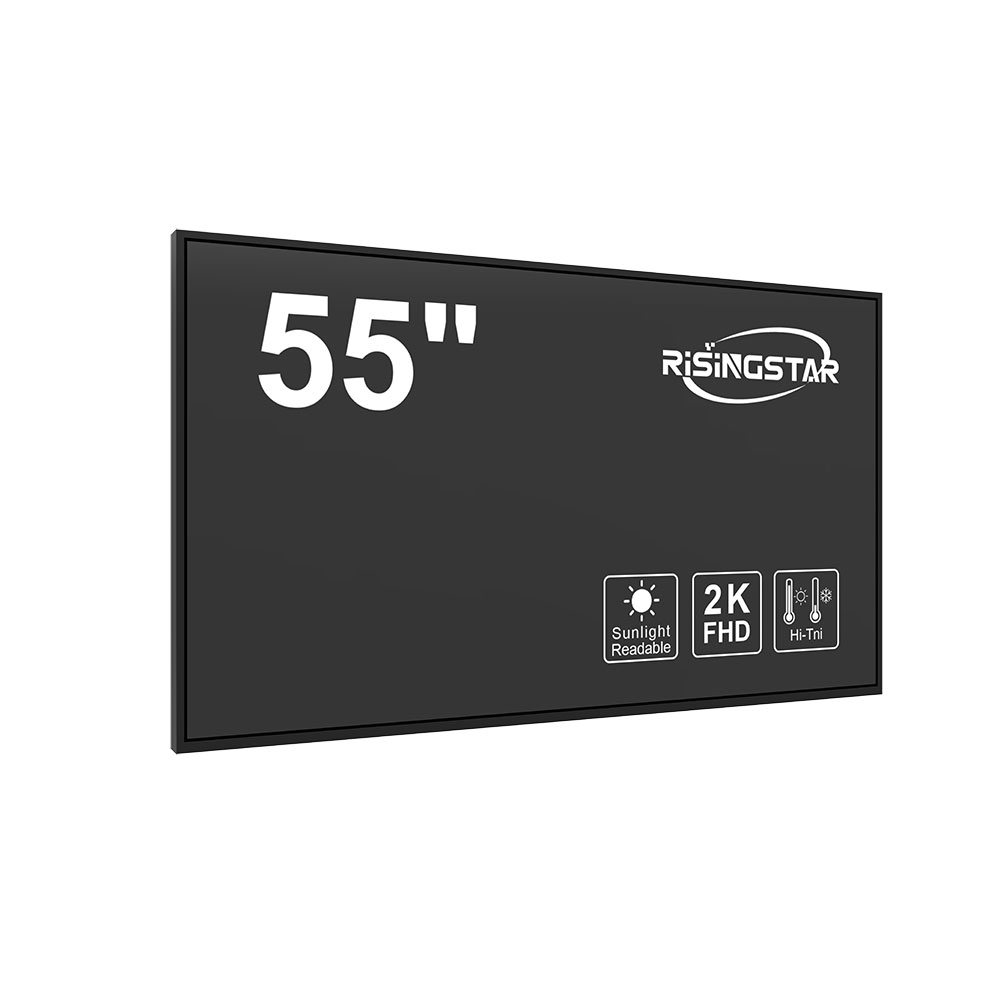

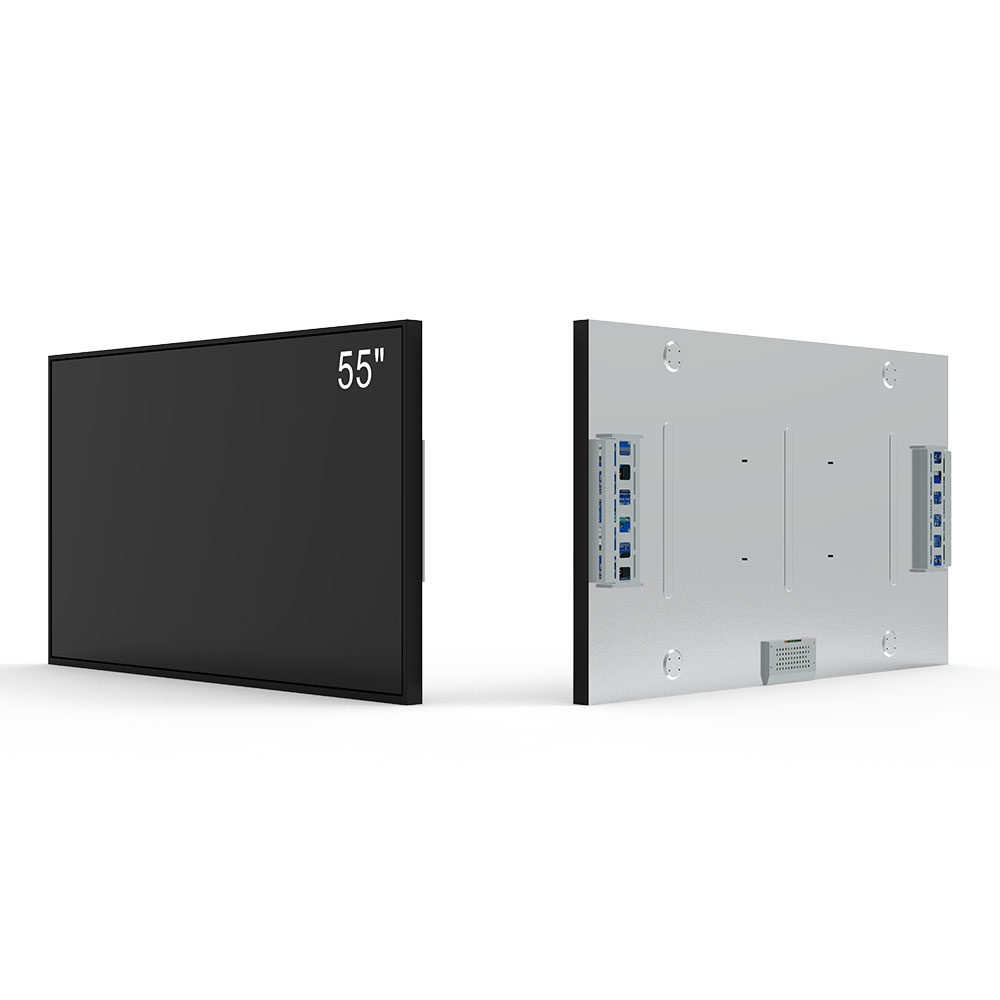

RS550DPY-GD30 is an 55-inch high brightness TFT LCD panel is equipped with LG LD550DPY-SHP1 screen. The display features 2K FHD resolution with a high brightness LED backlight producing a sunlight viewable 3000 nits image. IPS type panel, display size 1209.6(H)X680.4(V)mm, 1920*1080 FHD resolution, all aluminum profile frame, built in light sensor, it can be operated in both portrait and landscape orientation.

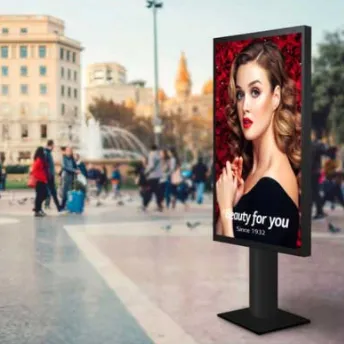

It is the perfect for outdoor digital signage, bus electronic platform, new energy charging pile, outdoor electronic newspaper reading column, security monitor, medical monitor.
| Screen Diagonal | 55 inch |
| LG panel no | LD550DPY-SHP1 |
| Panel Brand | RisingStar |
| Model No | RS550DPY-GD30 |
| Active Area | 1209.6(W)×680.4(H) mm |
| Pixels | 1920(3)×1080, FHD, 40PPI |
| Physical Size | 1242.7(H)×718(V)×60.3(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 3000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1000:1 (Typ.) |
| Optical Response Time | 6 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.7V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 14kgs(Typ.) |
| Interface Type | 51 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 70% NTSC |
| Surface Treatment | Hard coating (2H), |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
