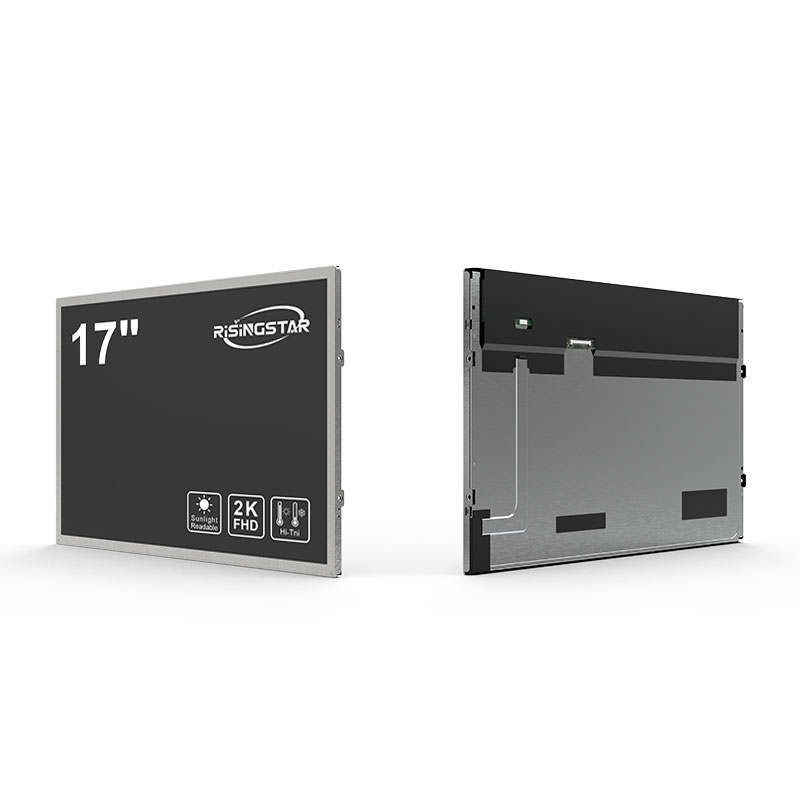

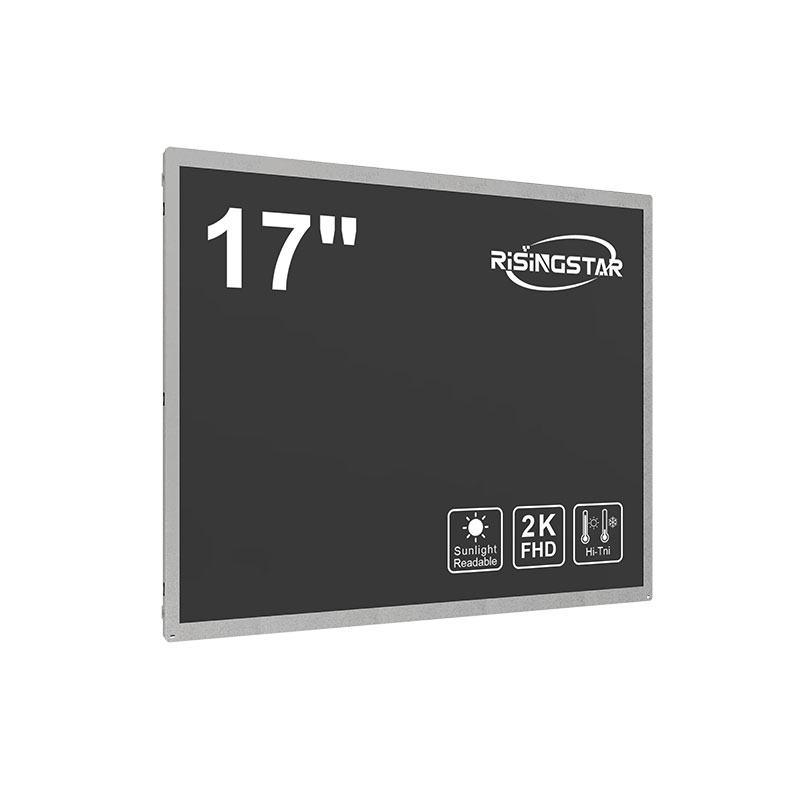

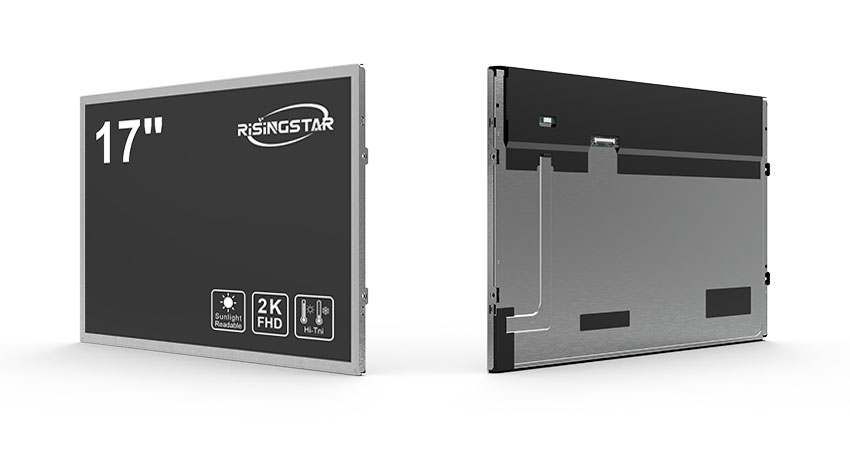

17" Industrial Ultra High Brightness 4:3 LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
17" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS170ENT-GE05 | 500 | 1280×1024 |
| RS170ENT-GE10 | 1000 | 1280×1024 |
| RS170ENT-GE15 | 1500 | 1280×1024 |
17.0" Industrial TFT-LCD Module – Specifications
| Item | Specification |
|---|---|
| Panel Size | 17.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA, 96 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 337.92 (W) × 270.336 (H) mm |
| Outline / Bezel Opening | 341.5 (W) × 274.6 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Recommended Viewing | All-round Viewing |
| Response Time | 14 ms (Typ., G-to-G) |
| Viewing Angle | 89/89/89/89 (Typ., CR ≥ 10) Left/Right/Up/Down |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 50,000 hrs Lifetime, Built-in LED Driver |
| Weight | 1.26 kg (Typ.) |
| Frame Rate | 60 Hz (Standard) • 120 Hz (60 Hz Input) – Built-in MEMC • 120 Hz + 120 Hz – 120 Hz Panel + 120 Hz Backlight • 240 Hz (60 Hz Input) – Built-in MEMC |
| Touch | No Touch |
| Interface | 30-pin LVDS (2-channel, 8-bit), Terminal Type |
| Input Voltage | 5.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Industrial Equipment |
Description
This 17.0-inch SXGA industrial-grade TFT-LCD display is designed for high-reliability applications requiring exceptional visibility, durability, and stable performance. Featuring an IPS “normally black” transmissive design, it provides wide viewing angles of 89° in all directions, ensuring consistent color and clarity from any perspective. The display supports extremely high brightness levels from 500 up to 1500 nits, making it suitable for bright environments or semi-outdoor use.
The module integrates a long-lifetime WLED backlight with a built-in LED driver, supporting 50,000 hours of operation. With optional high-frame-rate modes enabled by integrated MEMC technology (up to 240 Hz), it ensures smooth motion rendering for dynamic content.
The rugged design includes a 3H anti-glare surface, wide temperature tolerance (–20~70°C), and a durable structure that meets industrial-grade requirements.
Typical Applications
This 17-inch industrial LCD is suitable for a wide range of professional and rugged environments, including:
Industrial automation systems
Factory-floor control HMI panels
Medical diagnostic equipment

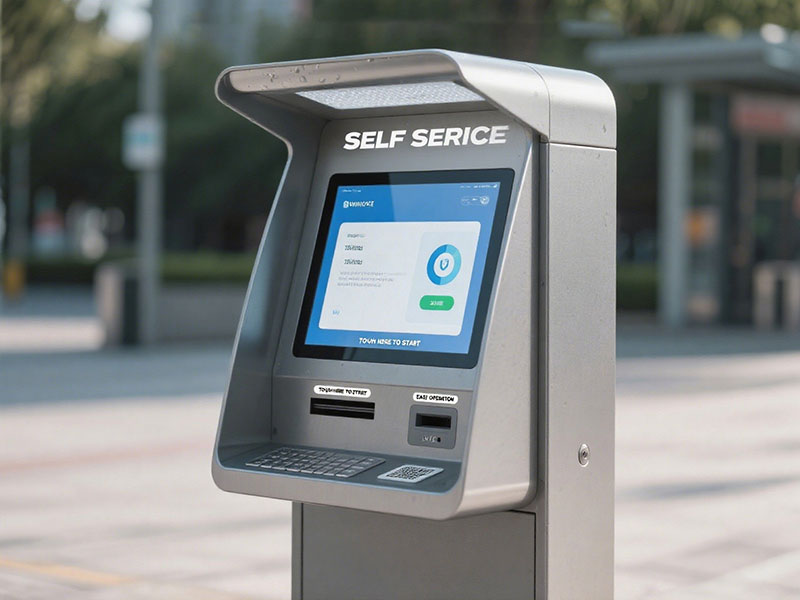

Kiosk terminals and self-service machines
Transportation control & monitoring systems
Test and measurement instruments
Military and security equipment
Server monitoring displays
Energy & power-station control interfaces
Its combination of high brightness, wide temperature range, and long backlight lifetime makes it ideal for 24/7 operation and challenging environments.
| Item | Specification |
|---|---|
| Panel Size | 17.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA, 96 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 337.92 (W) × 270.336 (H) mm |
| Outline / Bezel Opening | 341.5 (W) × 274.6 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Recommended Viewing | All-round Viewing |
| Response Time | 14 ms (Typ., G-to-G) |
| Viewing Angle | 89/89/89/89 (Typ., CR ≥ 10) Left/Right/Up/Down |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 50,000 hrs Lifetime, Built-in LED Driver |
| Weight | 1.26 kg (Typ.) |
| Frame Rate | 60 Hz (Standard) • 120 Hz (60 Hz Input) – Built-in MEMC • 120 Hz + 120 Hz – 120 Hz Panel + 120 Hz Backlight • 240 Hz (60 Hz Input) – Built-in MEMC |
| Touch | No Touch |
| Interface | 30-pin LVDS (2-channel, 8-bit), Terminal Type |
| Input Voltage | 5.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Industrial Equipment |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
