RS133HAN-GE10 High brightness open frame LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Looking for a display that you can use even under bright sunlight? Look no further than our high brightness open frame displays! These top-of-the-line displays are perfect for any application that demands high visibility, even in the harshest of lighting conditions. Check out our website today and discover the perfect solution for all of your display needs!
Description:
1) Open frame design
2) 43 inch, 46 inch, 49 inch,55 inch are all available
3) Industrial A+ grade LCD panel
4) 4000 nits high brightness,vivid image layout,bets details performance.
5) High operation temperature, Hi-Tni screen .
6) Auto brightness adjustment.
7) Wide visual angle 178°
8) Build-in stable power,low consumption,long life span>60000hours

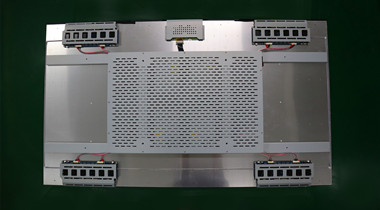

Open Frame LCD panel
An Open Frame LCD panel provides an LCD with the supporting structure to protect electronic components without using an enclosure or bezel. VESA mounting makes this monitor easy to install, making it the perfect solution for ATMs, vending machines, casino monitors, airport information displays, and mall kiosks.

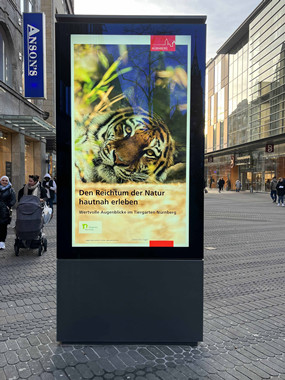

High brightness open frame display
With a great brightness of 4,000 nits, RisingLCD LCD panel clearly delivers contents and attract public attention, which is the ultimate display for outdoor visibility. this series is optically bonded which increases the perceived contrast ratio and cuts down on glare, providing amazing picture quality, even in direct sunlight.
Applications:
Stock exchanges, Traffic control centers, metro, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
| Panel | Screen Size | 46inch | 55inch | 65inch |
| Resolution | 1920*1080 FHD | 1920*1080 FHD | 3840*2160 UHD | |
| Brightness (nits) | 4000 nits (Typ.) 3600 nits(Min.) | 4000 nits (Typ.) 3600 nits(Min.) | 4000 nits (Typ.) 3600 nits(Min.) | |
| Display Area(mm) | 1018.08(W) X 572.67(H) mm | 1209.6(W) X 680.4(H) mm | 1428.28(W) X 803.52(H) mm | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | 89/89/89/89 (Min.)(CR≥10) | 89/89/89/89 (Min.)(CR≥10) | |
| Color | 1.07B | 1.07B | 1.07B | |
| View angle (H x V) | 178/178 | 178/178 | 178/178 | |
| Ratio | 16:9 | 16:9 | 16:9 | |
| Contrast Ratio | 4000:1 | 1100:1 | 1200:1 | |
| Portrait/Landscape | Yes/Yes | Yes/Yes | Yes/Yes | |
| Product Specification | Products Size (H*V*D）(mm) | 1050.6(H) *610.3(V) * 78.7(D) | 1242.1(H) *718(V) * 83(D) | 1461(H) *843.1(V) * 87(D) |
| Brightness Control | Auto-Sensitivity | Auto-Sensitivity | Auto-Sensitivity | |
| Power Supply | AC 110V/240V | AC 110V/240V | AC 110V/240V | |
| 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | ||
| Cooling System | Smart Direct Ventilation | Smart Direct Ventilation | Smart Direct Ventilation | |
| Power Consumption | 400W (Typ.) | 300W (Typ.) | 875W (Typ.) | |
| Operation Temperature | -20℃ to 70℃ | -20℃ to 70℃ | -20℃ to 70℃ | |
| Operation Humidity | 5%-90%RH | 5%-90%RH | 5%-90%RH | |
| VESA standard mount interface | 400 * 400mm | 400 * 400mm | 400 * 400mm | |
| Gross Weight | TBD | TBD | TBD | |
| Cooling Fan | NO | NO | NO | |
| Connectivity | Input | HDMI, DVI, VGA, PC, AUDIO | HDMI, DVI, VGA, PC, AUDIO | HDMI, DVI, VGA, PC, AUDIO |
| Output | Earphone | Earphone | Earphone |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
