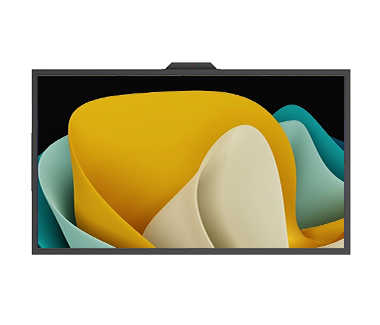

58.5 inch high brightness stretch bar LCD display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
| Item | Specification |
|---|---|
| Screen Diagonal | 58.5 inch |
| Model No. | RS58.5ENT-NE10 |
| Active Area | 1428.48(W) × 401.76(H) mm |
| Pixels / PPI | 3840(RGB) × 1080, 41 PPI |
| Physical Size | 1444.08(W) × 420.36(H) × 27.58 / 57.2(D) mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance (Center) | 500–5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Optical Response Time | 8 ms (Typ., G-to-G) |
| Backlight | Down-edge side, 2-LED light bar |
| Operating System | Android 8.0 |
| Viewing Angle | 89/89/89/89 (Typ., CR ≥ 10) |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Anti-glare (Haze 28%) |
| RoHS Compliance | Yes |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Weight | 11.8 kg |
| VESA Mounting | 300 × 400 mm |
Product Description
The RisingStar RS58.5ENT-NE10 is a 58.5-inch high-brightness stretched LCD display designed for professional and semi-outdoor environments. With 500–5000-nit luminance, 3840×1080 ultra-wide resolution, and an industrial a-Si TFT-LCD panel, it ensures excellent visibility even under direct sunlight. The anti-glare surface, wide 178° viewing angle, and 72% NTSC color performance deliver vibrant and clear images in public spaces.
Powered by Android 8.0, the display supports intelligent content playback, scheduling, and cloud-based digital signage systems. Its lightweight construction, VESA mounting compatibility, and robust temperature endurance make it reliable for long-term continuous operation.
Application Scenarios
The RS58.5ENT-NE10 is ideal for:
✔ Passenger Information Display (PID)
Metro stations
Railway platforms
Bus shelters
✔ Outdoor Digital Signage
Semi-outdoor advertising kiosks
Shopping mall entrances
Stadium and sports venues
✔ Industrial & Commercial Use
Factory dashboards
Logistics and warehouse monitoring
EV charging station displays
✔ Retail & Wayfinding
Digital menu boards
Directional displays
Ultra-wide promotional screens
Its ultra-wide 32:9 format and high brightness make it especially suitable for locations requiring sunlight-readable stretched displays.
| Item | Specification |
|---|---|
| Screen Diagonal | 58.5 inch |
| Model No. | RS58.5ENT-NE10 |
| Active Area | 1428.48(W) × 401.76(H) mm |
| Pixels / PPI | 3840(RGB) × 1080, 41 PPI |
| Physical Size | 1444.08(W) × 420.36(H) × 27.58 / 57.2(D) mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance (Center) | 500–5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Optical Response Time | 8 ms (Typ., G-to-G) |
| Backlight | Down-edge side, 2-LED light bar |
| Operating System | Android 8.0 |
| Viewing Angle | 89/89/89/89 (Typ., CR ≥ 10) |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Anti-glare (Haze 28%) |
| RoHS Compliance | Yes |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Weight | 11.8 kg |
| VESA Mounting | 300 × 400 mm |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
