36.6 inch stretch LCD modules and strip LCD modules
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
36.6-Inch Native Bar Type LCD Panel Specifications
| Item | Specification |
|---|---|
| Panel Size | 36.6 inches (Native Bar Type) |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 290 |
| Pixel Density | 53 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Display Area | 919.296 (W) × 138.852 (H) mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (3H) |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Contrast Ratio | 4000:1 (Typical, Transmissive) |
| Viewing Direction | All Viewing Angle |
| Response Time | 8 ms (Typical, G to G) |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L / R / U / D) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Supported Color | 16.7M colors, 72% NTSC |
| Backlight Type | WLED [3 strings × 2CN], No Driver |
| Backlight Lifetime | 70,000 hours |
| Weight | 2.70 kg (Typical) |
| Frame Rate | 60Hz (Input) |
| 120Hz (60Hz input, with MEMC circuit) | |
| 120Hz + 120Hz (120Hz panel + 120Hz backlight) | |
| 240Hz (60Hz input, with MEMC circuit) | |
| Touch Technology | No Touch |
| Interface | 51 pins LVDS (2 channel, 8-bit), Terminal |
| Power Supply Voltage | 12V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Digital Signage, Outdoor High Brightness, Bar Type Display |

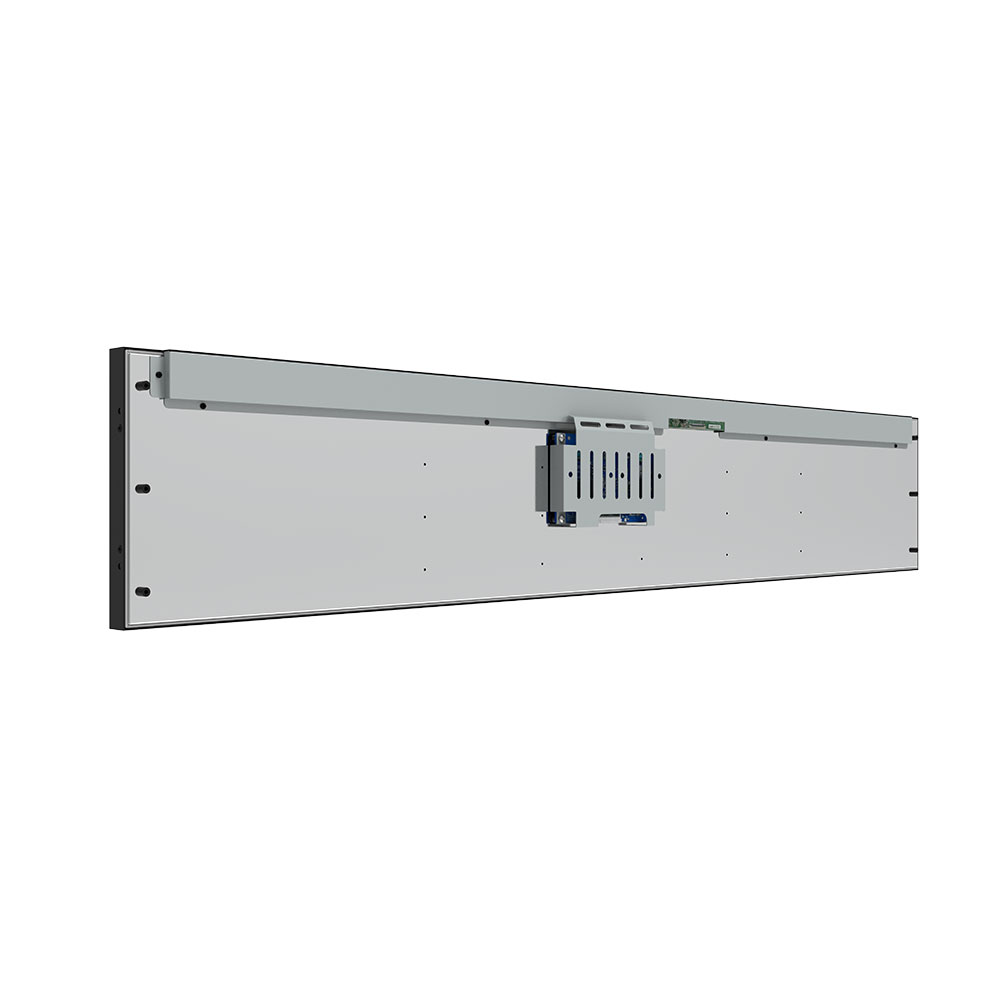

36.6-Inch Bar Type LCD Display – Designed for Industrial & Commercial Signage Applications
RisingStar’s 36.6-inch bar type LCD display is a high-performance, ultra-wide solution tailored for digital signage and embedded industrial systems. Featuring a native resolution of 1920×290 and a pixel pitch of 53PPI, this ultra-stretched screen delivers sharp and clear content ideal for narrow or constrained spaces. The AMVA3 panel technology provides wide viewing angles (89° in all directions) and a high contrast ratio of 4000:1, ensuring excellent readability under various lighting conditions.
Engineered with 700 nits of brightness and a matte anti-glare surface (Haze 28%), this display remains clearly visible in semi-outdoor and bright ambient environments. The WLED backlight supports up to 70,000 hours of lifespan, making it a reliable long-term signage solution. Built with an aluminum structure and rated for operating temperatures from -20 ~ 70 °C, it is well-suited for demanding environments.
Application Areas:
This 36.6" bar type LCD is widely used in public transportation displays (bus, metro, rail), shelf-edge retail signage, EV charging stations, gas pumps, smart kiosks, and outdoor digital signage where ultra-wide formats are required.
36.6-Inch Native Bar Type LCD Panel Specifications
| Item | Specification |
|---|---|
| Panel Size | 36.6 inches (Native Bar Type) |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 290 |
| Pixel Density | 53 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Display Area | 919.296 (W) × 138.852 (H) mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (3H) |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Contrast Ratio | 4000:1 (Typical, Transmissive) |
| Viewing Direction | All Viewing Angle |
| Response Time | 8 ms (Typical, G to G) |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L / R / U / D) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Supported Color | 16.7M colors, 72% NTSC |
| Backlight Type | WLED [3 strings × 2CN], No Driver |
| Backlight Lifetime | 70,000 hours |
| Weight | 2.70 kg (Typical) |
| Frame Rate | 60Hz (Input) |
| 120Hz (60Hz input, with MEMC circuit) | |
| 120Hz + 120Hz (120Hz panel + 120Hz backlight) | |
| 240Hz (60Hz input, with MEMC circuit) | |
| Touch Technology | No Touch |
| Interface | 51 pins LVDS (2 channel, 8-bit), Terminal |
| Power Supply Voltage | 12V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Digital Signage, Outdoor High Brightness, Bar Type Display |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
