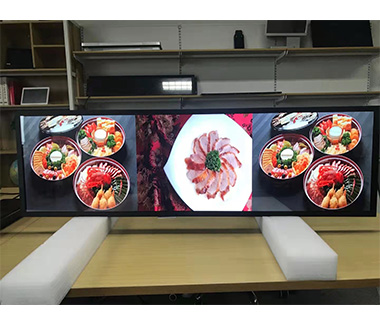

47.6 inch ultra wide stretch TFT LCD Bar with 1500 nits high brightness

47.6 inch ultra wide stretch TFT LCD Bar with 1500 nits high brightness

RisingStar® 47.6 inch RS476NET-NE15 sunlight readable display. 1500 nits high brightness, 1920(RGB)×360 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

To cater to diverse demands, the Risingstar Bar Type LCD display monitor boasts a range of options for display ratios of length and width. Specifically crafted for retail spaces, these commercial screens are an ideal fit for shelf edge integration. The ultra-stretched digital shelf edge display is loaded with a built-in powerful signage player and a ready-to-use digital signage publishing system, making it tailored to meet the dynamic requirements of the retail environment.

47.6 inch ultra wide TFT stretch high brightness TFT LCD bar

Wide high resolution display 1920*360

High Brightness 1500 nits

Side LED Backlight

Low Power Consumption

Risingstar offers a wide spectrum of indoor and outdoor ultra stretched LCD digital signage solutions. All these solutions are powered by customized backlight. Stretch tft LCD digital signage are available from size 19 inch to 86 inch, and brightness from 500 nits to 5000 nits.

Screen Diagonal47.6 inch
Model NoRS476NET-NE15
Active Area 1189.44(W)×223.02(H) mm
Pixels1920(RGB)×360, 41PPI
Physical Size1201.44(H)×215.42(V)×22.6(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 1200:1 (Typ.)
Optical Response Time8 (Typ.)(G to G)
Back light down edge side, 2-led light bar
bezel2.2/2.2/13.6/13.6
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [g] 5.1Kgs
Power consumption: 65--103.68
Support Color 16.7M, 72%  NTSC
Surface Treatment Antiglare (Haze 28%)
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS476NET-NE15 47.6 inch high brightness display 47.6 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
