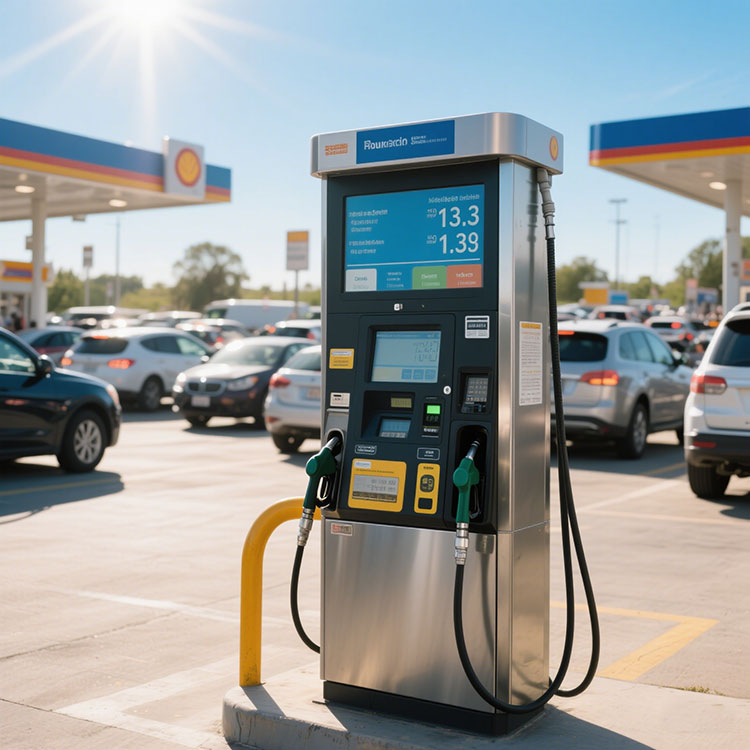

In the fiercely competitive fueling equipment market, many outdoor fuel dispenser manufacturers are always looking for display solutions that combine durability, clarity and stability. After several rounds of technical evaluation and cooperation negotiations, a well-known outdoor fuel dispenser brand finally chose our 13.3 inch high brightness waterproof display designed for outdoor environments and successfully integrated it into its new generation of fueling equipment.

With ultra-high brightness, IP-level protection and wide temperature working performance, this display still performs well under various lighting and bad weather conditions, ensuring clear and readable information display, which not only greatly improves the end-user experience, but also wins a large number of orders and industry reputation for customers, becoming a key link in their equipment upgrade.

Comments from a large refueling equipment manufacturer after project delivery

"We’ve been looking for a reliable and truly outdoor-ready display solution for years. After testing your 13.3 inch high brightness waterproof screen in our latest dispenser model, we were very impressed by its performance — even under direct sunlight and in rainy conditions. The clarity and durability exceeded our expectations, and feedback from our distributors has been overwhelmingly positive."

The actual situation, product advantages, application scenarios and why customers choose RisingStar screens

After three months of multiple rounds of technical evaluation and field testing, a well-known global refueling equipment and smart transportation terminal manufacturer finally chose to use the high-brightness, industrial-grade outdoor display developed by RisingStar for its new generation of refueling machines and EV charging kiosk product lines, and simultaneously expanded to multiple railway and public transportation information release terminal equipment. The first batch of purchased products covers regular sizes such as 13.3 inches, 15.6 inches, 18.5 inches, 21.5 inches, 23.8 inches, 27 inches and 32 inches to meet the information visualization needs in different scenarios.

RisingStar product advantages

1. Excellent sunlight readability and ultra-high brightness performance:

RisingStar adopts direct-type LED backlight design, with a maximum brightness of 5000nits, which is clearly visible even in direct sunlight. It is an ideal choice for outdoor application scenarios such as railways, buses, EV charging stations, and gas pumps. Large-size (such as 55-inch) products provide 2500/3000/4000/5000nits brightness levels, providing flexible configuration for different usage environments.

2. Industrial-grade quality, stable and reliable:

Each device undergoes an extreme temperature cycle test of -20℃ to 60℃ for more than 8 hours before leaving the factory, as well as a 24-48-hour uninterrupted operation aging test, which effectively eliminates the risk of early failures and ensures long-term stable operation on site. The entire line of products adopts industrial-grade LCD modules and all-aluminum frame design, which is lighter, more corrosion-resistant, and more heat-dissipating than traditional iron shells.

3. Optimized structure, energy saving and environmental protection:

RisingStar display screen has low energy consumption, low heat generation, lifespan of up to 50,000 hours, and thin screen structure, which effectively helps terminal equipment control overall energy consumption and maintenance costs. It is especially suitable for occasions that require continuous operation and high-intensity use.

4. Rich sizes and comprehensive coverage:

RisingStar provides a full range of standard sizes from 10.1” to 110” (16:9 / 4:3 / bar screen), such as AA121TD02, LD270EUY-SPN2, LD550EGY-SSA1 and other LCD modules are widely used in customer orders to meet the needs of various scenarios including passenger information systems (PIS), real estate guides, retail advertising, outdoor TV, etc.

Why do customers choose RisingStar?

Display performance leads the industry: At the same size, RisingStar screens are superior to similar products in terms of brightness, contrast, and color performance, especially in direct sunlight. The image remains clear and sharp.

Lighter and thinner structure: The aluminum alloy frame design greatly reduces weight, facilitates equipment integration and installation, and reduces transportation costs.

Long life and low failure rate: Customers emphasize that after choosing RisingStar, after-sales maintenance has been significantly reduced, the overall quality of the terminal product has been improved, and user satisfaction has been significantly improved.

Strong engineering support and customization capabilities: We not only provide standard products, but also provide a variety of combination solutions such as open display, waterproof whole machine, front waterproof whole machine according to customer equipment structure and heat dissipation requirements.

Small products, big market

Small size high brightness products from 10.1" to 32" are widely used in intelligent transportation, digital energy, smart retail and public information systems. Whether it is gas stations, charging kiosks, railway platforms, subway entrances and exits, intercity bus stations, commercial plazas, or residential real estate advertising, RisingStar's industrial-grade display solutions have been running stably in many countries and regions around the world and continue to be favored by customers.

RisingStar is not only a display manufacturer, but also your reliable display solution partner. We look forward to in-depth cooperation with more international customers to work together to create a clearer, more efficient and intelligent outdoor visual information world. Welcome to contact us for customized solutions and technical information.

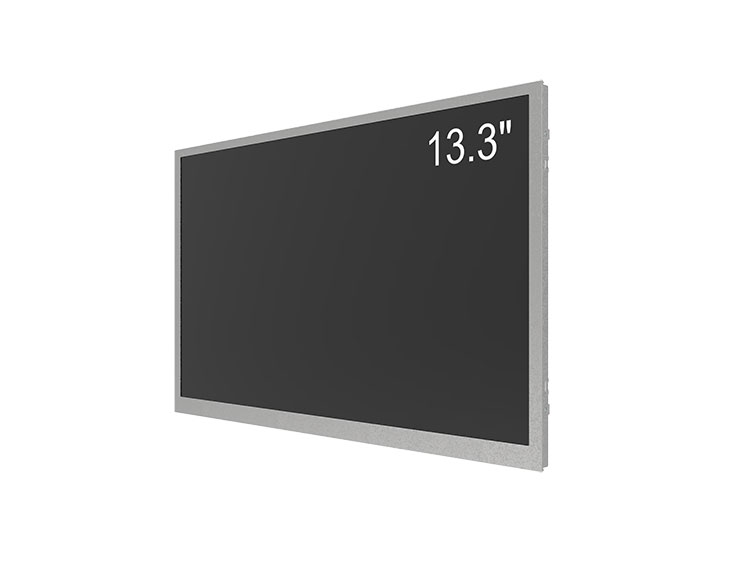

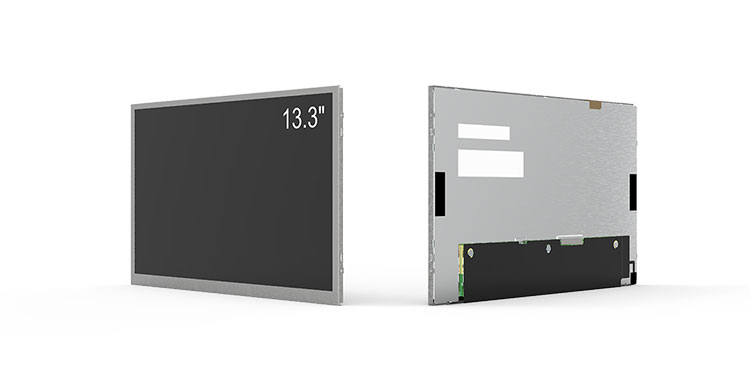

RisingStar 13.3-inch high-brightness industrial display core parameters introduction

RisingStar's 13.3-inch a-Si TFT-LCD liquid crystal module is specially designed for outdoor smart devices and industrial scenes. It has multiple advantages such as high-definition display, wide viewing angle, and high contrast. It is suitable for high-demand scenes such as gas pumps, EV charging piles, bus/rail passenger information systems, and industrial terminals.

Core parameters at a glance:

Resolution: 1920 (RGB) × 1080 (FHD), pixel density up to 166PPI, fine and clear picture

Display area: 293.76 (W) × 165.24 (H) mm

Appearance size: 298.76 (W) × 176.24 (H) × 3.8 (D) mm

Viewable area: 295.76 (W) × 167.54 (H) mm

Contrast: 1500:1 (Typ.), clear details, excellent black and white performance

Brightness: 400 cd/m² (typical value), good readability in sunlight (higher brightness version can be customized)

Viewing angle: 85°/85°/85°/85° (L/R/U/D), using IPS wide viewing angle technology, supporting all-round viewing

Display mode: Normally black display, transmissive, presenting deeper black and excellent color reproduction

Surface treatment: Matt + 3H hardened coating, effective anti-reflection and anti-scratch

Response time: 30ms (Tr+Td), suitable for video playback and real-time interface response

Color performance: 16.7M colors, 100% sRGB color gamut coverage

Backlight type: WLED light source, life up to 15,000 hours, built-in LED driver

Refresh rate: 60Hz, support MEMC to 120Hz/240Hz (custom version)

Signal interface: eDP 1.4a (2 Lanes), 30-pin terminal, support HBR1 (2.7Gbps/lane)

Drive voltage: 3.3V (typical value)

Operating temperature range: 0 ~ 50°C, storage temperature: -20 ~ 60°C

Structural features: ultra-thin design, bendable PCBA, overall thickness ≤3.0mm, easy to embed in compact devices

Application scenarios: suitable for notebooks, industrial control, human-computer interaction terminals, outdoor information display and other application fields
