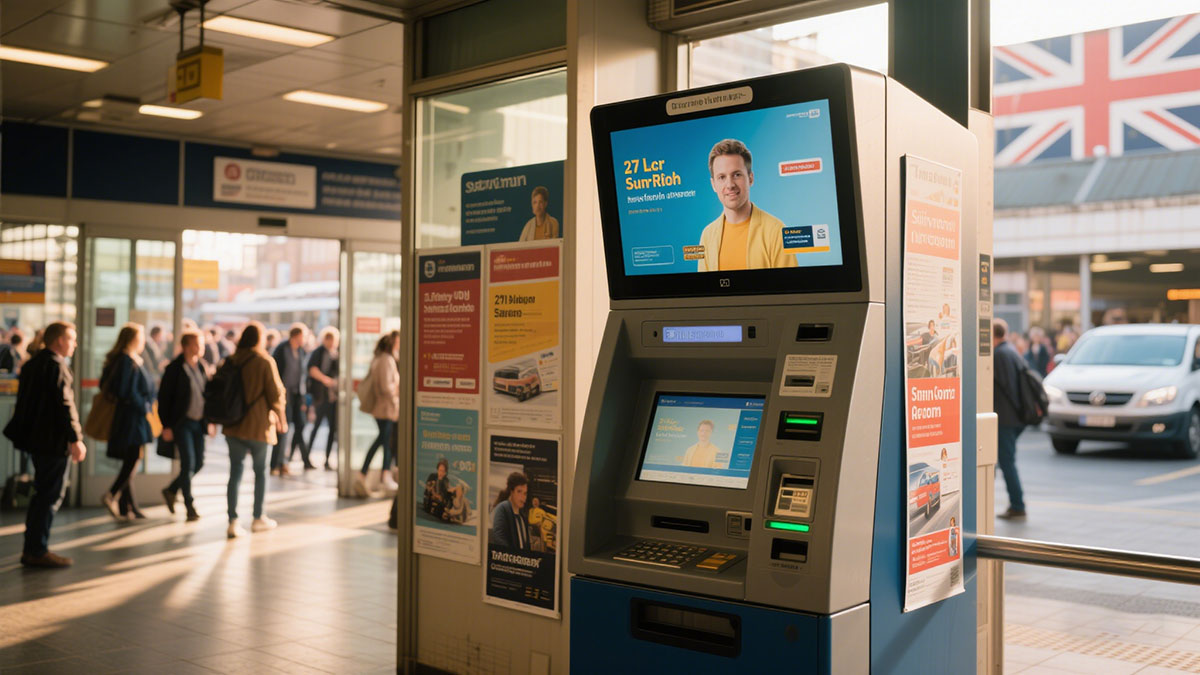

Self-Service Ticket Machine 19 Inch High Brightness Display Solution

In the increasingly competitive self-service equipment market, an excellent display screen determines the first impression and final effect of the product. Our 19-inch high brightness display solution, with a super brightness of up to 5000nits, is still clearly visible even under strong outdoor light, completely solving the pain point of "not being able to see clearly" on traditional screens.

After many self-service ticket machine manufacturers chose our high-brightness display screens, their products quickly stood out in the market and won the favor and invitation of many urban rail transit, scenic spots, supermarkets and other project parties. It not only improves the user experience, but also directly drives sales growth. If you are looking for a set of screen display solutions that can truly empower terminal products, welcome to learn about RisingStar's 19-inch high-brightness series.

Feedback from the Chief Product Officer of a European self-service ticket machine brand

"We have fully adopted this 19-inch high-brightness display in the new generation of outdoor self-service ticket terminals. The brightness is as high as 5000nits, which can keep the picture clear and the colors vivid even under direct sunlight. This upgrade has greatly improved the user's operating experience and reduced complaints caused by screen reflection or unclear vision. After going online, the terminal won bids in multiple transportation hubs and scenic spot projects, and customer satisfaction has significantly improved. We highly recognize the stability and visual performance of this 19-inch high-brightness display, and it has become the standard for our high-end equipment."

Why overseas ticket terminal manufacturers choose RisingStar high-brightness display solutions

In the fiercely competitive smart ticketing equipment market, high-brightness, low-power, and environmentally resistant display solutions are becoming the key to winning outdoor scene orders. At the beginning of 2024, a well-known European self-service ticket machine manufacturer was looking for an outdoor screen solution suitable for railway stations, subways, intercity railways and bus stations. After multiple comparisons, it finally chose RisingStar as the core display supplier.

"We have deployed new ticketing terminals in multiple European cities on a trial basis. The project requires that the screen must be clearly readable even in strong sunlight, while maintaining low power consumption and long life. RisingStar's products far exceeded our expectations in the initial testing phase."

The customer first introduced RisingStar's 19-inch industrial-grade high brightness display with a brightness of up to 5000nits. With the direct backlight technology, it achieved 100% readability in sunlight and successfully passed the project's outdoor brightness test standards. Subsequently, the customer gradually expanded the application to different sizes of models such as 23.8 inches, 27 inches, and 32 inches, which are used in EV charging kiosks, bus ticketing terminals, gas pumps, outdoor information signs, and real estate digital display equipment.

The display products provided by RisingStar not only have high brightness and clear picture quality, but also have the following core advantages:

High contrast: no fear of light interference, sharp picture;

Industrial-grade design: can operate without trouble 24 hours a day;

Extreme life: LED module life exceeds 30,000 hours;

Energy saving and low heat: low power consumption solution, low equipment heat generation, and adapted sealed waterproof structure;

Lightweight structure: the all-aluminum frame is lighter than iron and easier to install;

Extreme temperature test: each device undergoes 8 hours of -20℃ to 60℃ temperature cycle before leaving the factory, and runs 24~48 hours of aging test to eliminate early faults.

It is particularly worth mentioning that RisingStar provides a one-stop solution from modules, open displays, fully waterproof whole machines to front waterproof whole machines, covering the full size segment from 10.1 inches to 110 inches, supporting 16:9, 4:3 and a variety of bar screens, to meet the integration needs of various terminal devices.

"Small size, big market" - high-brightness small screen fully empowers smart travel and outdoor applications

With the implementation of the project, the customer not only fully adopted RisingStar's 18.5-inch, 21.5-inch, 23.8-inch and other small-size high-brightness screens in railway, bus, subway and intercity train information release terminals, but also won consecutive bids in outdoor TV, digital retail, real estate display screens and other scenarios. The products are popular in the European and Middle Eastern markets, and the cooperation orders continue to increase.

Today, RisingStar has become a long-term partner of this customer, customizing stable and reliable high-brightness LCD display solutions for its different product lines, achieving a double breakthrough from function to market.

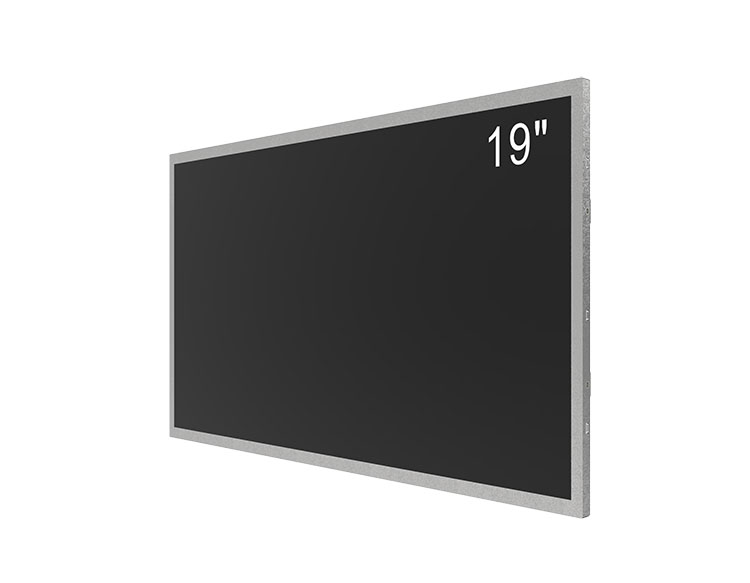

This 19.0-inch a-Si TFT-LCD liquid crystal module adopts IPS full-viewing angle technology, has excellent image performance and industrial-grade stability, and is particularly suitable for high-demand application scenarios such as self-service ticket machines, outdoor digital signage, EV charging kiosks, gas pumps and smart transportation terminals.

Core technical parameters at a glance

Panel size: 19.0 inches

Resolution: 1280 (RGB) × 1024 (SXGA), 86 PPI, 16.7M colors, 72% NTSC

Display area: 376.32 (W) × 301.056 (H) mm

Appearance size: 396 (W) × 324 (H) × 10.4 (D) mm

Opening size: 378.8 (W) × 303.0 (H) mm

Contrast ratio: 1000:1 (Typ.) (TM mode)

Viewing angle: 89°/89°/89°/89° (CR≥10), full-viewing angle IPS

Surface treatment: matte anti-glare + 3H hardened coating, adapt to strong light and outdoor environment

Brightness can be customized: standard brightness 250 nits, upgradeable to 5000 nits ultra-high brightness, meet the needs of sunlight readable applications

Response time: 14ms (G to G), smooth dynamic display

Light source system: 19S2P WLED backlight, lifespan up to 30,000 hours

Signal interface: LVDS dual-channel 8-bit, 30-pin terminal, strong universal compatibility

Drive voltage: 5.0V (Typ.)

Frequency support: 75Hz standard refresh rate, expandable to 120Hz/240Hz (optional MEMC circuit)

Working environment: 0 \~ 50°C; Storage environment: -20 \~ 60°C

Weight: 1.46kg (Typ.)
