    19-inch high brightness display application guide

    2025-05-16 17:29:23  News

    Designed for 24/7 operation in challenging environments, our 19 inch high brightness display delivers exceptional visibility with 250-nit brightness and 1000:1 contrast ratio. The IPS panel technology ensures consistent color reproduction across 89° viewing angles in all directions, making it ideal for control rooms, medical imaging, and outdoor kiosks.

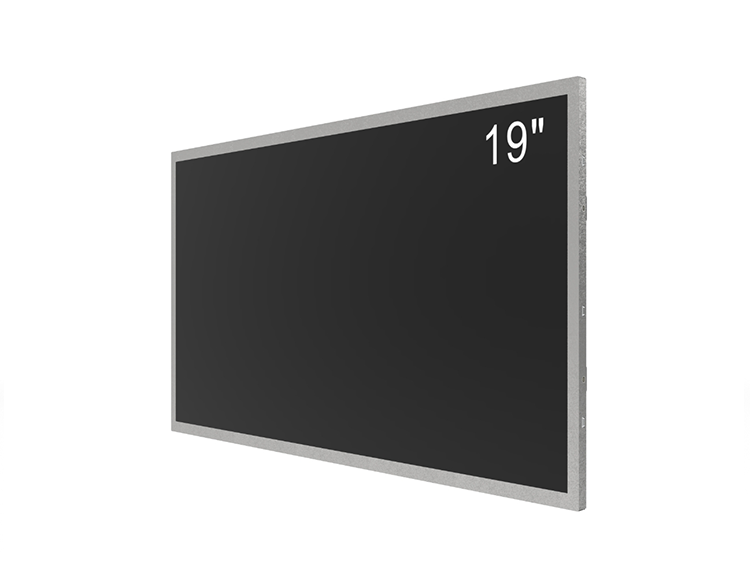

    high-brightness-display


    This 19-inch high brightness display can be widely used in the following scenarios with its professional-grade parameter configuration:


    1. Industrial intelligent control terminal

    Adaptability to harsh environments: 250cd/m² high brightness and 1000:1 contrast ratio can clearly display production line data in strong light workshops or outdoor scenes; matte treatment (Haze 25%) effectively suppresses equipment reflections and adapts to power monitoring, mechanical operation and other scene requirements.

    Stable interactive design: LVDS 2-channel anti-interference interface ensures signal transmission stability, and with IPS wide viewing angle (89°/89°/89°/89°), it supports multi-angle collaborative operations and real-time monitoring of equipment status.


    2. Public service intelligent terminal

    Multi-scenario interactive adaptation: lightweight design (1.54kg) that supports wall-mounted/embedded installation, combined with 75Hz refresh rate and MEMC interpolation technology, improves the dynamic information response efficiency of elevator advertising screens and government self-service machines.

    Anti-interference ability: equipped with industrial-grade signal protocol to avoid interface freezes or signal loss caused by electromagnetic interference in public areas.


    3. Retail and commercial interactive terminals

    Immersive experience optimization: SXGA resolution (1280×1024) and RGB vertical strip pixel layout are suitable for AI intelligent marketing systems in digital tea shops and jewelry showrooms to achieve dynamic product display and interactive shopping guidance.

    Extensibility support: Reserve compatible AI interactive module interface, expand face recognition, gesture control and other functions, and promote the full process digital upgrade of retail scenes.

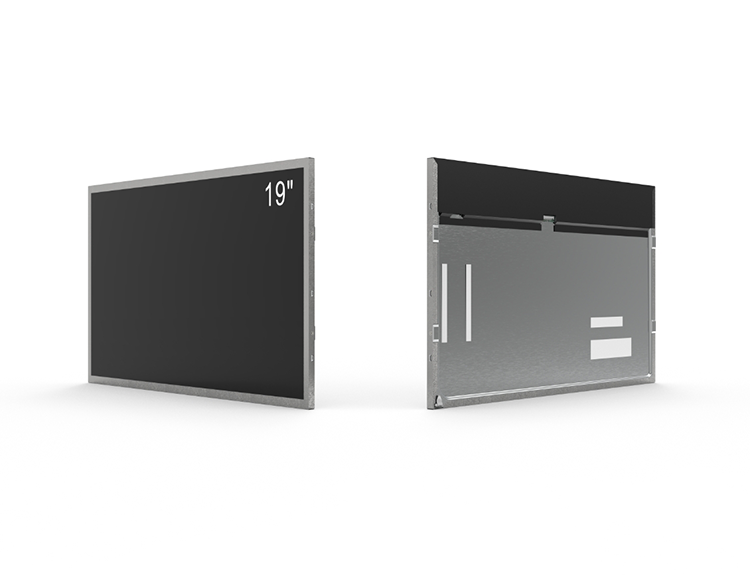

    high-brightness-display


    The core technology of RisingStar 19-inch LCD panel is analyzed as follows:


    I. Display performance optimization


    HD resolution and pixel density

    Adopting 1280×1024 (SXGA) resolution and RGB vertical strip pixel layout, it can achieve 86PPI fine display effect, meeting the needs of industrial control and medical imaging.


    Brightness and contrast balance

    The combination of 250cd/m² high brightness and 1000:1 contrast enhances visibility in strong light environment, and eliminates color deviation through IPS wide viewing angle technology (89°/89°/89°/89°) to ensure consistency of multi-angle observation.


    Color reproduction capability‌

    72% NTSC color gamut coverage and 16.7M color depth accurately restore the color levels of medical images and industrial graphics.


    2. Structure and optical design


    High-strength surface treatment‌

    Mist treatment (Haze 25%) combined with 3H hardness anti-scratch coating effectively suppresses reflections and improves screen durability, suitable for industrial sites and public information terminals.


    Compact structure design‌

    The appearance size is 396×324×10.4mm, and a high screen-to-body ratio is achieved by optimizing the frame. The 1.54kg lightweight body supports wall-mounting and embedded installation.


    Backlight system life‌

    The 19S2P WLED backlight architecture combined with a 30K hour life design reduces the maintenance cost of long-term operation scenarios.


    3. Dynamic performance and signal transmission


    Response and refresh rate optimization‌

    14ms grayscale response time reduces dynamic blur, supports 75Hz native refresh rate and MEMC interpolation technology extended to 120Hz, and improves the smoothness of motion pictures.


    Industrial-grade signal stability

    The LVDS 2-channel 8-bit interface is equipped with an anti-interference protocol to meet the signal transmission requirements of industrial equipment in harsh environments.


    IV. Environmental adaptability


    The wide operating temperature range (0~50℃) and -20~60℃ storage temperature ensure stable operation of medical equipment, outdoor terminals and other scenarios.


    The solution accurately matches the needs of professional fields such as industry and medical care through display performance optimization, structural reliability and dynamic enhancement technology.


    RisingStar 19-inch high brightness display parameter table

    CategoryParameterSpecificationTechnical Notes
    Basic SpecsPanel Size19.0 inchesStandard industrial size for embedded applications

    Panel Typea-Si TFT-LCD moduleLow-temperature polysilicon technology

    Resolution1280(RGB)×1024 (SXGA), 86PPIRGB vertical stripe layout for sharp text/graphics
    OpticalActive Area376.32(W)×301.056(H) mmHigh screen-to-body ratio design

    Brightness250 cd/m² (Typ.)Enhanced outdoor visibility

    Contrast Ratio1000:1 (Typ.)IPS technology for dark detail enhancement

    Viewing Angle89°/89°/89°/89° (CR≥10)Wide viewing angle for collaborative use
    StructureSurface TreatmentAnti-glare (Haze 25%) + 3H hard coatingScratch-resistant for public terminals

    Outline Dimensions396(W)×324(H)×10.4(D) mmSlim profile for space-constrained installations

    Weight1.46/1.54 kg (Typ./Max.)Lightweight for transportation
    PerformanceResponse Time14ms (G to G)Reduced motion blur for industrial monitoring

    Refresh Rate75Hz native / 120Hz MEMCDual-mode for dynamic content display
    ElectricalInterfaceLVDS (2 ch, 8-bit), 30-pin connectorIndustrial-grade signal stability

    Backlight19S2P WLED, 30K hours lifespanDriverless design reduces maintenance
    EnvironmentOperating Temperature0~50°CSuitable for harsh environments

    Storage Temperature-20~60°CRobust storage conditions
    Advanced FeaturesColor Gamut16.7M colors, 72% NTSCMedical imaging color accuracy

    Touch FunctionNon-touchStandard industrial configuration

    Power Supply5.0V (Typ.)Low power consumption design
