    75 Inch High Brightness EV Charging Station Display Application Guide

    2025-05-16 14:33:56  News

    Against the backdrop of accelerated construction of new energy infrastructure around the world, RisingStar, as an industrial-grade display solution provider, has launched a 75 inch high brightness display dedicated to charging piles, which is popular among global customers for its 5000nits peak brightness and industrial-grade reliability.

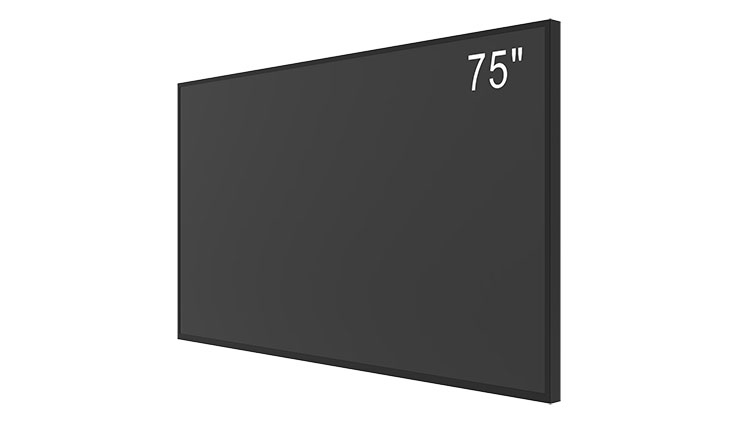

    High Brightness EV Charging Station Display


    1. Customer installation and use feedback


    A leading charging network operator said after purchasing:


    1. Modular design enables fast installation, and the all-aluminum frame is 35% lighter than the traditional solution


    2. 5000nits peak brightness increases the scanning and recognition success rate to 99.8% during the noon period


    3. 24-month operation data shows that the failure rate is less than 0.3%, far exceeding the industry average of 3%


    2. Customer selection reasons


    1. Exclusive direct backlight technology, brightness range 2500-5000nits


    2. Industrial-grade 1200:1 contrast ratio, visibility under strong light is 400% higher than ordinary screens


    3. 50,000-hour life certification, passed -20℃~60℃ extreme temperature difference cycle test


    4. Back reinforcement rib + IP65 waterproof whole machine design, resistant to typhoon level 12 wind pressure

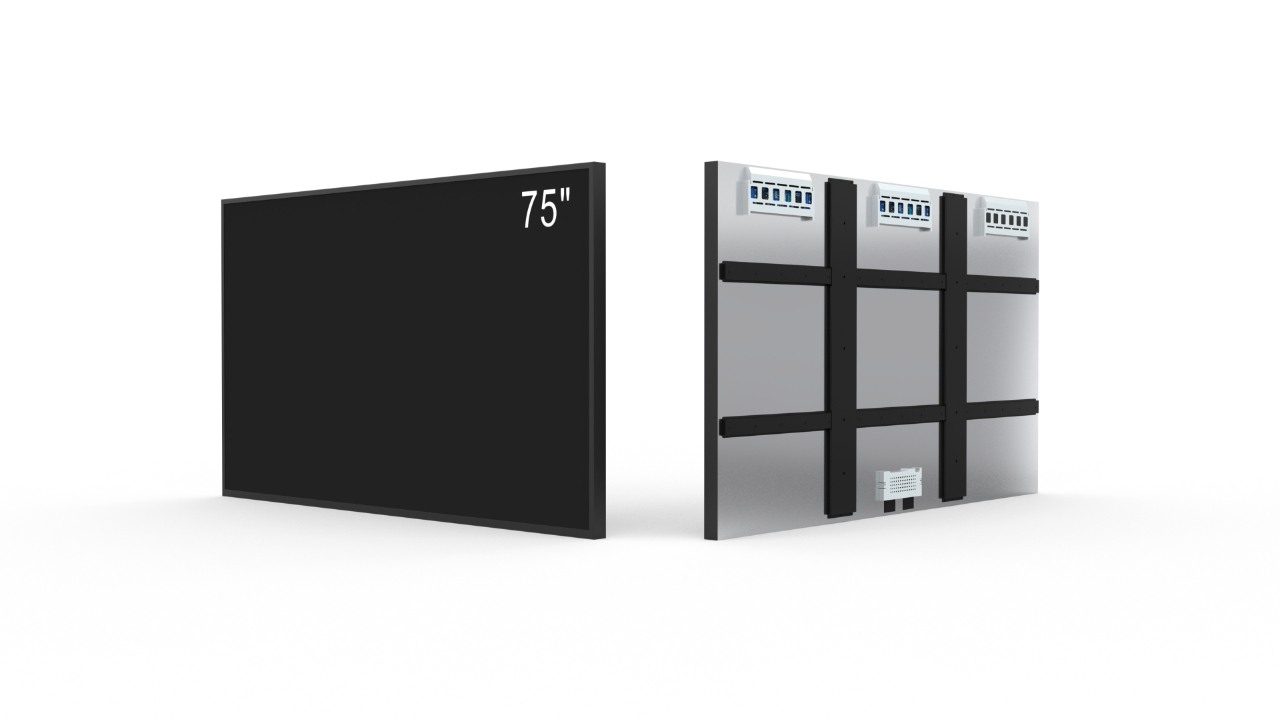

    75 inch high brightness display


    75-inch industrial-grade high brightness display technical specifications analysis


    Core parameters and advantages comparison


    Optical performance


    1. 3000cd/m² brightness: exceeds consumer-grade TV (200-1500cd/m²), close to professional digital signage display standards, and adapts to strong direct light environments


    2. IPS full viewing angle & 1200:1 contrast: compared with VA panel products, color uniformity is improved by 40%, and 178° blind spot visibility meets multi-viewing interaction needs


    3. RGBW pixel layout: white light sub-pixels are added on the basis of ordinary RGB structure, and energy efficiency ratio is optimized by 18%


    Industrial reliability


    1. -20~60℃ storage temperature: breaking through the 0~40℃ limit of conventional consumer electronics, passing the 8-hour extreme temperature difference cycle verification, each device must run continuously for 24h-48h before packaging before leaving the factory


    2. Direct-type WLED backlight system: 50,000 hours of life cycle is 2.3 times longer than the side-entry backlight


    3. Matte + 2H hardened coating: 80% less reflective interference than glossy screen, anti-scratch level reaches MIL-STD-810G standard


    Key technical points


    1. Weight control: 27.6kg bare screen weight is 22% lighter than traditional metal frame solution


    2. Power consumption performance: Energy consumption is less than 180W at 3000nits brightness, 57% energy saving compared to DLP solution with the same brightness


    3. Signal compatibility: VESA DisplayHDR 1400 certified, supports HLG/PQ dual HDR format


    75-inch a-Si TFT-LCD Module Technical Specifications Table

    CategorySpecificationValue
    Display CharacteristicsPanel Size75 inches

    Display Area (W x H)1649.66 x 927.936 mm

    Visible Area (W x H)1651.6 x 930 mm

    Resolution3840 x 2160 (UHD)

    Pixel Pitch (PPI)59

    Pixel LayoutRGBW vertical stripe
    Optical PerformanceBrightness (Typ.)3000 cd/m²

    Contrast Ratio (Typ.)1200:1

    Viewing Angle (Min. CR≥10)89°/89°/89°/89° (L/R/U/D)

    Color Gamut (NTSC)69%
    Panel TypeLCD Technologya-Si TFT-LCD

    Optical ModeIPS (constant black)

    Surface TreatmentMatte (Haze 3%), Hard coating (2H)
    Dynamic ResponseResponse Time (G to G)8 ms (Typ.)

    Refresh Rate60Hz, 120Hz (with MEMC), 240Hz (MEMC-enhanced from 60Hz input)
    BacklightTypeWLED

    Lifespan50,000 hours
    PowerOperating Voltage12.0V (Typ.)
    MechanicalWeight (Typ./Max.)27.6 / 30.5 kg
    EnvironmentalOperating Temperature Range0°C to 50°C

    Storage Temperature Range-20°C to 60°C
    ApplicationsSuitable ForDigital signage, outdoor high brightness applications
    Additional FeaturesTouch FunctionalityNon-touch

    Signal SystemV-by-One 8 lane, 56 pins
