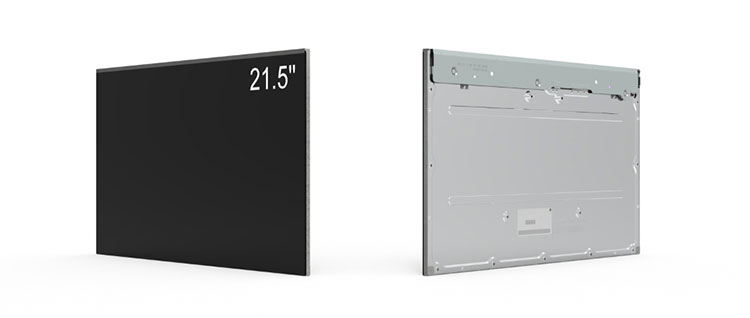

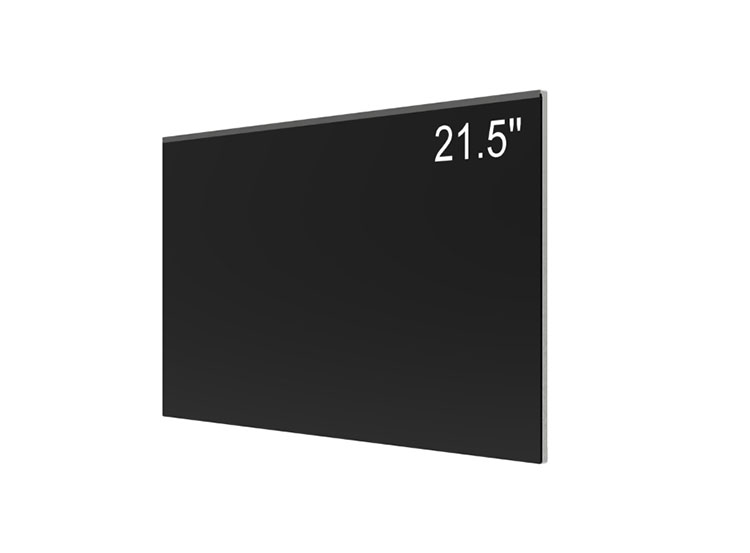

RisingStar specializes in providing display solutions for various fuel dispenser manufacturers. Our industrial-grade 21.5-inch high-brightness LCD screen display is carefully designed to provide clear visibility even in direct sunlight (up to 5000 nits brightness), while also withstanding extreme temperature fluctuations (-20°C to 60°C) to ensure uninterrupted operation 24/7. Its anti-glare surface treatment and IP65 protection level combine to provide a clear and visible operation interface for fuel dispensers 24/7.

Customer feedback on 21.5-inch high-brightness LCD fuel dispensers:

We have been using 21.5-inch high-brightness LCD fuel dispensers at 12 highway service stations for 6 months, and the results are excellent. According to our survey, the clear display has reduced customer confusion by 40% and significantly accelerated transactions during peak hours. Drivers can easily view fueling options and payment instructions even in direct sunlight.

21.5-inch high brightness lcd screen application scenarios

This 21.5-inch high brightness LCD screen fuel dispenser is ideal for deployment at busy highway gas stations and 24-hour fueling points. Its large, sunlight-readable display clearly displays fuel selection options, real-time prices and transaction information to customers even in direct sunlight. During refueling, animated safety tips and promotional content for each fuel brand are displayed on the screen. The touch screen interface allows drivers to easily select fuel grade, payment method (cash/credit card/mobile payment) and print receipts. When integrated with the gas station management system, it can display membership program balances, car wash options and convenience store specials, significantly improving cross-selling opportunities. The durable display withstands extreme temperatures and is anti-glare, ensuring reliable operation in all weather conditions while reducing customer errors and increasing transaction speed.

21.5-inch high brightness LCD screen core technology analysis

1. Breakthrough in optical performance

Color laboratory-level accuracy: IPS hard screen with 8-bit color depth (16.7M colors), through the factory calibration parameters of ΔE<3 under the CIE1931 standard, meeting the strict requirements of the medical DICOM Part14 standard for grayscale display

Ambient light countermeasure system: 25% haze + 3H hardened coating constitutes a composite optical solution, maintaining a contrast ratio of 1000:1 under 10,000 lux illumination (based on ISO13406-2 standard test)

2. Industrial reliability architecture

Mechanical stress protection: 497.6×292.2×11mm full metal package structure, passed IEC60068-2-6 vibration test (5-500Hz/1.5Grms)

Thermal management system: The wide temperature range backlight module (-30~70℃ storage/0~50℃ operation) adopts a copper-based heat sink design to ensure that the light decay is <15% in 30,000 hours

Electrical safety design: LVDS interface is equipped with ESD protection (contact discharge 8kV/air discharge 15kV), in line with IEC61000-4-2 Level4 standard

3. Intelligent scene adaptation

Digital signage protocol: built-in CEC control and HDCP2.2 content protection, support remote brightness adjustment (50-250cd/m² adjustable)

Industrial HMI expansion: OpenFrame version is provided (476×267.8mm viewing area), compatible with PanelPC embedded development

4. Life cycle value

Energy consumption economy: 5V driving voltage saves 40% energy compared to traditional 12V solutions (measured power consumption <8W@250nit)

Maintenance-friendly design: front-disassembly structure supports quick replacement in 5 minutes, compatible with VESA 75mm bracket standard

Long-term supply: promise 10-year product life cycle, provide industrial-grade BOM traceability service
