21.5" 1000 nits TFT LCD module Chinese manufacturer

calendar_month Sep 29, 2021
person By RisingStar Engineering Team

21.5 inches 1000 nits 1500 nits TFT LCD module Chinese manufacturer, sun-readable LCD module size 10.1 inches-120 inches, brightness 500 nits-5000 nits, the products are as follows: outdoor waterproof digital signage, outdoor high-brightness digital Signage, outdoor monitor, outdoor TV, terrace TV, touch monitor, open monitor, waterproof grade: ip67, explosion-proof grade IK10, sales markets: Europe, America, Russia, Japan, Australia, Southeast Asia, etc.

21

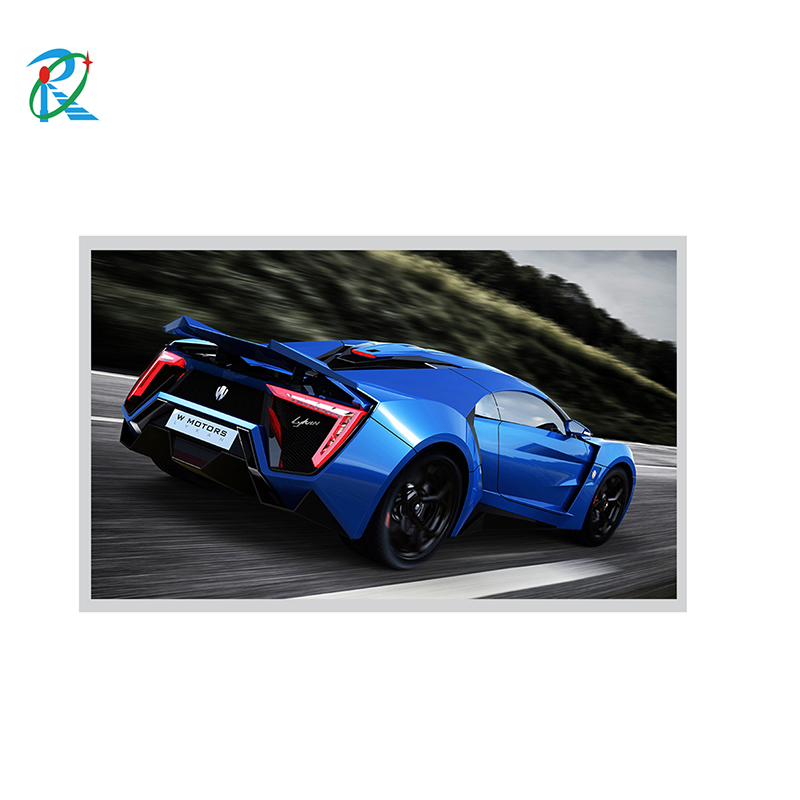

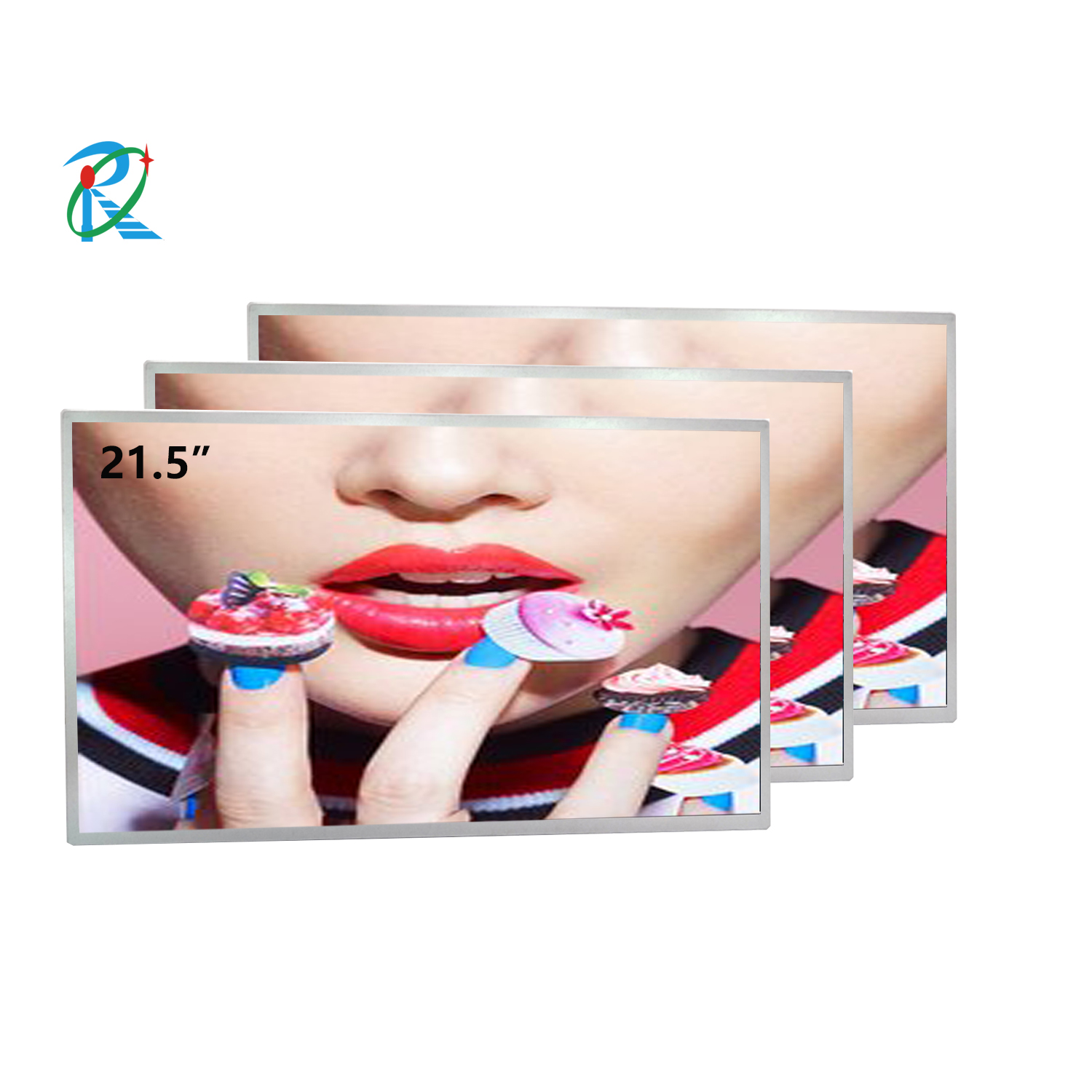

Brand: RISINGLCD Model Name: RS215ENT-N15

Screen size: 21.5" Screen type: LCD module, a-Si TFT-LCD

Resolution: 1920(RGB)×1080 Pixel configuration: RGB vertical bar

Display size: 476.064×267.786 mm (H×V) Appearance size: 501.1×292.2×16.12 mm (H×V×D)

Visual size: 480.7×271.8 mm (H×V) Surface treatment: matte, Hard coating (3H)

Brightness (cd/m²): 1500 Contrast degree: 1000: 1

Best angle: full viewing angle Optical mode: AHVA, normally black display, transmissive

Viewing angle: 89/89/89/89 Response speed: 25 ms

Number of colors: 16.7M, 72% NTSC backlight type: 4 strings×2CN WLED, 50K hours, no driver

Screen weight: 2.10Kgs Suitable for: digital signage outdoor highlight

Refresh rate: 60Hz

Signal system: LVDS (2 ch, 8-bit), terminal, 30 pins

Supply voltage: 5.0V (Typ.)

Maximum rating: Storage temperature: -20 ~ 60 °C Working temperature: -10 ~ 50 °C



Please contact risingstarlcd@Foxmail.com to purchase
