55 inch window digital signage advertising screen

55 inch window digital signage advertising screen

BrandRisingStar
Model nameRS550ENT-N20
Screen size55"
Screen typeLCD
Resolution3840(RGB)×2160 Surface treatment: matte, Hard coating (3H)
Contrast degree1200:1
Best angleFull viewing angle Optical mode: IPS, normally black display, transmissive

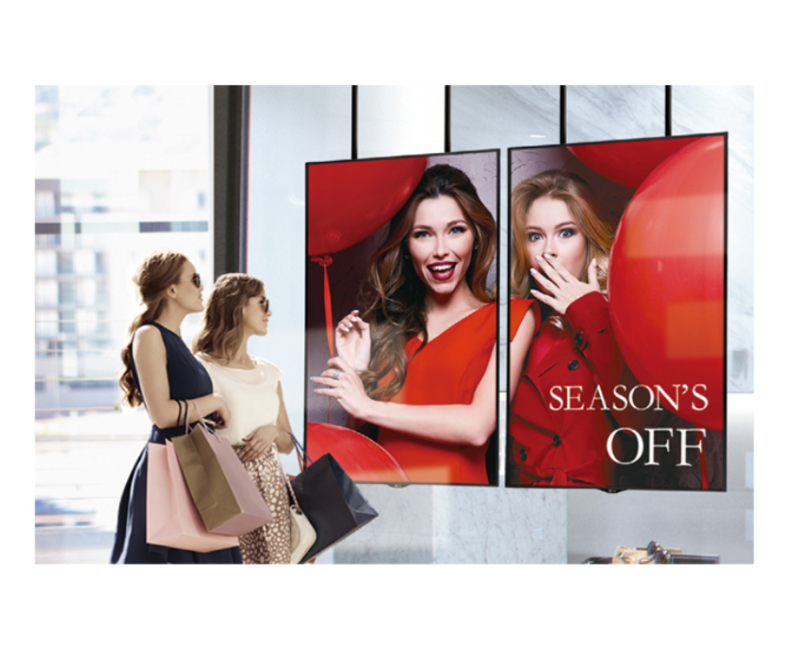

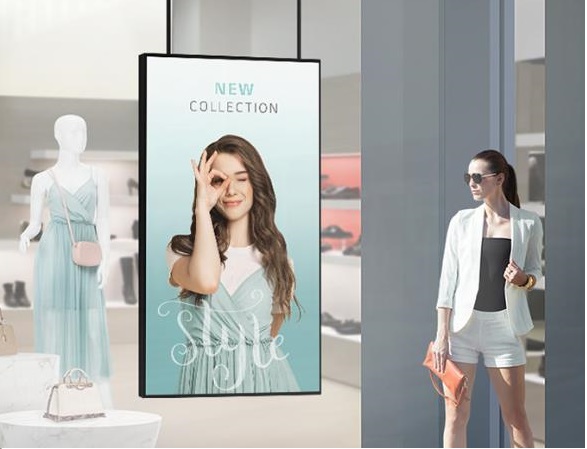

RS550HVX01D01 is a 55-inch window-facing display from RisingStar, designed for shop retail to promote products through video or images to passersby on the street. This makes the traditional display window 'come to life.' With ultra-high brightness over 2000 nits, an IPS wide viewing angle, and 4K high resolution, all these features ensure that the content you display will be noticed by anyone walking past your shop on the street.

sdasdasd1

Risingstar monitors always has far higher brightness than most of our competitors, for the specific 55-inches we can reached 4000 nits even much higher, more information please searching on our website:

Size (inch)

32

43

55

55

65

Model number

RS320HNX02D05

RS430HNX04D05

RS550HVX01D01

/

/

Brightness (cd/m2)

1500

1500

2500

2000

3000

Resolution (pixels)

1920*1080

1920*1080

3840*2160

1920*1080

/3840*2160

1920*1080

/3840*2160

Power (Watt)

80

160

180240300

Operating temperature

0 ~ 50℃

-20 ~ 50 ℃

0 ~ 50℃

0 ~ 50℃

0 ~ 50℃

Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

BOE, LG, AUO

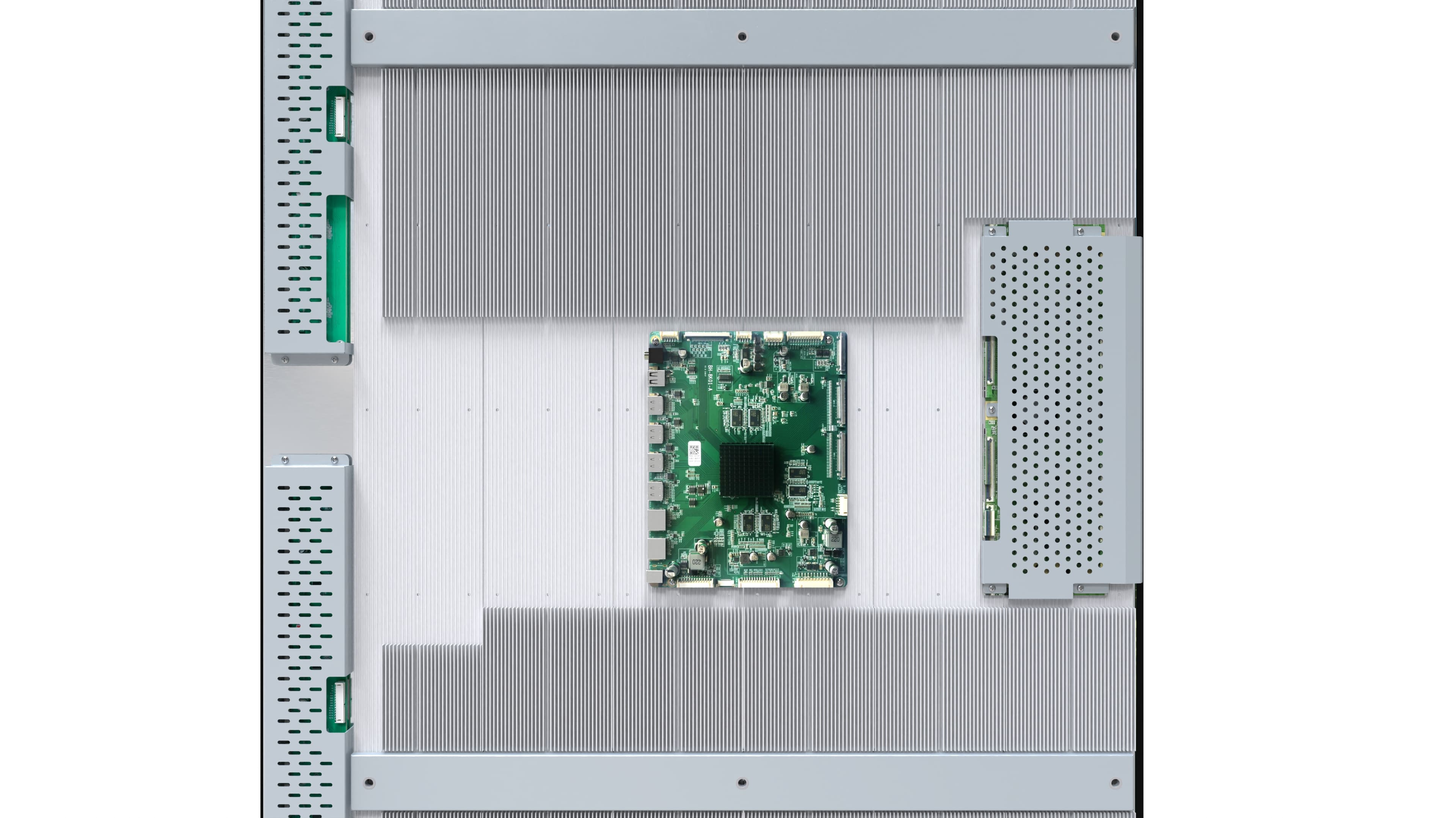

Rugged and unique housing: This display has unqiue housing, you can see the crave on the display is as sort of thermal dissipition design, use typical radiator bar for the simple style and lower th cost, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.

背放大

High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.

Risingstar all products and mounting types


Window facing display series:

RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...

RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...

RS430MNX01D01, classic design, the standard type of 43-inch window facing display

RS550ENT-N20 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

Techspecs:

Items

  Specification

  Note

Panel Brand

LG


Diagonal Size

55"


Panel Type

a-Si TFT-LCD

LCM

Resolution

3840(RGB)×2160, UHD, 80PPI


Pixel Format

    RGB Vertical Stripe


Display Area

    1209.6(W)×680.4(H) mm


Outline Size:

1232.8(W)×703.6(H) ×32.9(D) mm


Surface

Antiglare (Haze 1%), Hard coating (2H).


Brightness

    3000 cd/m² (Typ.)


Contrast Ratio

   1400:1 (Typ.) (TM)


Support Color

1.67B   72% NTSC


Viewing Angle

    89/89/89/89 (Min.)(CR≥10)


Display Mode

IPS, Normally Black, Transmissive .


Response Time

5 (Typ.)(G to G); 8 (Typ.)(MPRT).


Lamp Type

WLED , 50K hours , With LED Driver


Frequency:

    60Hz


Panel Weight

18.0/21.0Kgs (Typ./Max.)


Application

Outdoor Digital Signage


Signal Interface

HDMI,USB,VGA,DVI


Input Voltage:

110 to 260V (Typ.).


Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
