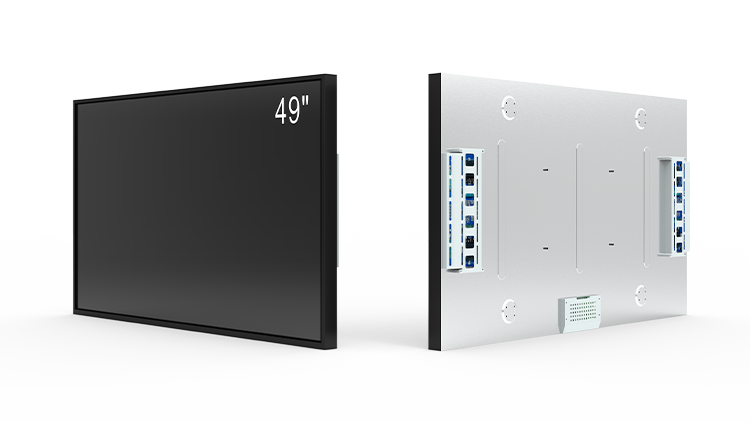

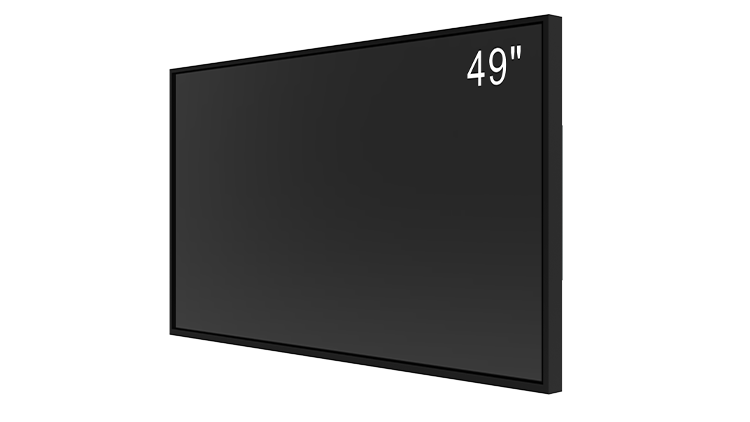

In the field of digital signage and industrial display, brightness is the key to success. RisingStar 49-inch high brightness display improves outdoor visibility with industrial-grade standards - direct backlight technology breaks through ambient light limitations, the all-aluminum frame withstands extreme temperature differences of -20°C to 60°C, and maintains 98% brightness output after 30,000 hours of continuous lighting. This is not an ordinary screen, but is designed for demanding scenarios such as highways, port dispatching, and new energy charging piles.

Core advantages of RisingStar 49-inch High Brightness Display

1. Extreme brightness: 2500-5000nits adjustable brightness, direct backlight technology ensures clear images under direct sunlight

2. Industrial-grade reliability: all-aluminum lightweight frame (35% lighter than iron), stable operation in extreme environments of -20℃~60℃

3. Ultra-long life: 30,000 hours of continuous working life, combined with 24-48 hours of factory aging test to eliminate early failures

Professional solution

▸ Fully waterproof whole machine: IP65 protection level, adaptable to harsh environments such as rain, snow, sand and dust

▸ Modular design: support flexible configuration of open display/module, and quickly respond to the needs of transportation, energy, advertising and other fields

Each device passes the 8-hour extreme temperature cycle test, and the ultra-thin body achieves high integration installation

Analysis of technical parameters of RisingStar 49-inch high brightness display

1. ‌Basic specifications‌

‌Panel size and type‌: 49-inch a-Si TFT-LCD liquid crystal module, using IPS hard screen technology (normally black display, transmissive), supporting full-view viewing.

‌Resolution and pixels‌: 3840 (RGB) × 2160 (UHD standard), 90PPI pixel density, RGB vertical strip arrangement, display area 1073.8 × 604mm, suitable for digital signage and outdoor high brightness scenes.

2. ‌Optical performance‌

‌Brightness and contrast‌: Typical brightness 700cd/m², contrast 1100:1 (transmissive mode), matte surface treatment (Haze 28%) and 2H hardening coating, effectively reducing reflective interference.

‌Color and color gamut‌: Supports 1.07B color quantity, covers 98% sRGB color gamut, and meets the needs of accurate color reproduction.

‌Viewing Angle‌: Full viewing angle 89°/89°/89°/89° (left/right/up/down), in line with the wide viewing angle characteristics of IPS hard screen, ensuring the consistency of multi-angle viewing.

3. ‌Dynamic Performance‌

‌Response and Refresh Rate‌: 8ms grayscale response time (G to G), the operating frequency supports 60Hz panel + 60Hz backlight combination, adapting to high-speed screen display.

‌Backlight and Lifespan‌: Adopts WLED light source, does not contain driver module, the light source life is up to 30,000 hours, meeting the needs of long-term outdoor use.

4. ‌Structure and Adaptation‌

‌Physical Design‌: Weight 11.5-12.1kg, configured with V-by-One 8 lane signal interface (51 pin terminal), drive screen voltage 12V.

‌Environmental Adaptability‌: Working temperature 0-50°C, storage temperature -20-60°C, in line with the weather resistance standards of industrial-grade outdoor equipment.

5. Application scenarios

Applicable areas: Optimized for outdoor high brightness scenes (such as traffic information screens and advertising machines), supports digital signage system integration, and takes into account indoor and outdoor high-dynamic image display needs.
