In today’s fast-paced urban environments, outdoor visibility and durability are critical for digital signage and public information systems. RisingStar’s 86-inch industrial high brightness display is engineered to perform flawlessly under direct sunlight, with brightness levels up to 5000 nits, full HD 4K resolution, and an ultra-wide viewing angle. Designed for long-term outdoor use, it combines low power consumption, minimal heat generation, and a lightweight aluminum frame—making it the perfect solution for bus stops, transit hubs, outdoor kiosks, and smart city infrastructure. Built to endure extreme temperatures and tested for 24-48 hours before shipment, this display delivers exceptional clarity, reliability, and performance in the most demanding environments.

86 Inch Industrial High Brightness Display Application

The 86-inch industrial high brightness display is purpose-built for outdoor and semi-outdoor environments where visibility, durability, and reliability are paramount. With brightness levels reaching up to 5000 nits, it ensures crystal-clear content even under direct sunlight, making it ideal for:

Bus stops and smart bus shelters – displaying real-time arrival information, route maps, and digital advertisements with maximum readability, day or night.

Outdoor digital signage – from shopping plazas to stadium entrances, ensuring brands and public messages remain vivid and eye-catching in any lighting condition.

Transportation hubs – airports, train stations, and ferry terminals benefit from its 24/7 visibility and industrial-grade reliability.

Engineered for harsh conditions, this display withstands temperature extremes, operates 24/7, and offers a slim, lightweight aluminum housing for easy installation and integration. Whether it’s enhancing commuter experience or strengthening commercial visibility, the 86" high brightness display is the smart choice for modern outdoor applications.

Technical Highlights of the 86 Inch High Brightness LCD Panel

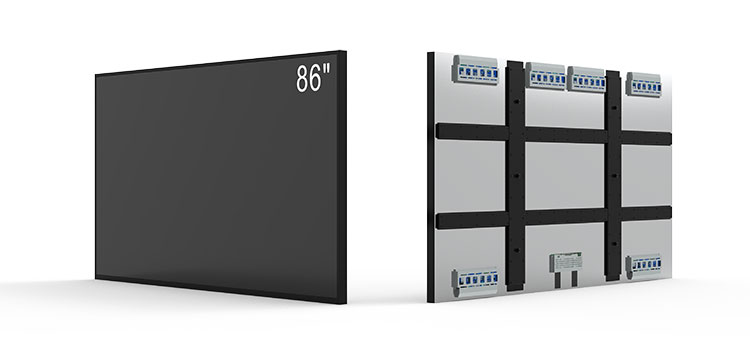

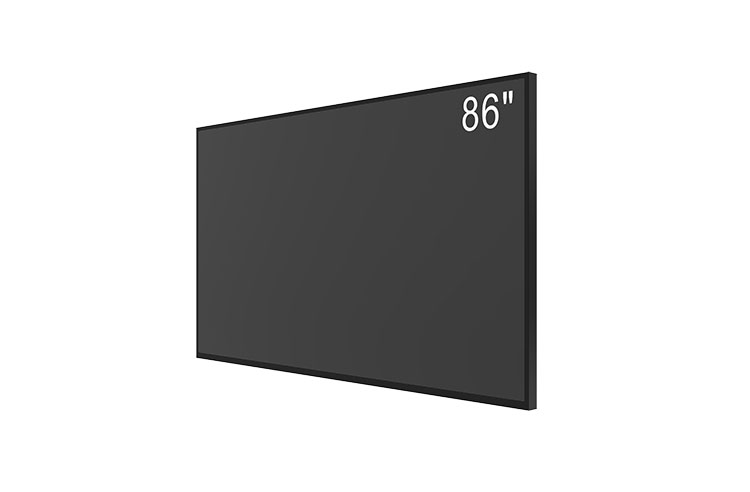

This 86-inch a-Si TFT-LCD panel delivers Ultra HD 3840×2160 resolution at 51PPI, engineered for industrial-grade performance in large-format digital signage and interactive displays. Built on advanced IPS (In-Plane Switching) technology, it offers consistent colors and a full viewing angle of 178° (89/89/89/89), ensuring vivid and clear images from any direction.

Key technical strengths include:

Wide Display Area: With an active area of 1895.04 × 1065.96 mm, the panel supports large-scale visual content in high definition, ideal for public information and outdoor advertising.

High Durability Surface: Equipped with a 3% haze anti-glare surface and 2H hard coating, it minimizes reflection and enhances surface protection in bright or outdoor environments.

Industrial Brightness & Contrast: Standard brightness at 410 cd/m², with models customizable up to 5000 nits for direct sunlight readability. Contrast ratio is rated at 1200:1 (Typ.), delivering crisp visuals.

Color Performance: Supports 1.07 billion colors (10-bit) with 72% NTSC coverage, ideal for accurate color reproduction.

Backlight System: Utilizes a long-lifespan WLED backlight system (30,000 hours) with integrated LED driver for power efficiency and consistent illumination.

Response Time: Fast 8ms (G to G) response reduces motion blur, suitable for dynamic content and video playback.

High Refresh Compatibility: Supports 60Hz input, and is equipped with internal MEMC circuitry to simulate 120Hz or 240Hz refresh rates, enhancing motion clarity.

Signal Interface: Adopts V-by-One 8-lane (56-pin) interface for stable high-speed data transmission.

Robust Environment Tolerance: Operates reliably in 0°C to 50°C, with storage temperature tolerance of -20°C to 60°C, making it suitable for various climate zones.

Lightweight Design: Despite its large size, the panel weighs only 34.1–35.8 kg, allowing easier integration into large-format display systems.

Whether applied in smart whiteboards, transport information displays, or sunlight-readable outdoor signage, this 86-inch panel offers a premium combination of performance, reliability, and visual excellence for demanding commercial and industrial applications.
